Specifications
SINOTRUK HOWO concrete mixer truck / white color mixer lorry for salepetitive price
3. high cost performance
SINOTRUK HOWO concrete mixer truck / white color mixer lorry for sale
detailed paremeter:
Truck modle | ZZ1317M3261W | ZZ1317N3261W | ZZ1317S3261W | ||
Cab | Type | HW76 | |||
Style | Lengthen cab, single sleeper, ajustable turning wheel VDOinstrument and control model, safety delt, the sun shade on the outside | ||||
Engine | type | WD615.87 | WD615.69 | WD615.47 | |
Rated power W/rpm | 213/2200 | 247/2200 | 273/2200 | ||
Max torque Nm/rpm | 1160/1100-1600 | 1350/1300-1600 | 1460/1300-1600 | ||
emission L | 9.726 | ||||
Style | In-line, six clyinder engine, inter-cooling, supercharger in the rear | ||||
Clutch | WD615.47engine with 430A,WD615.69 with 430B,WD615.62,WD615.87 with 430C | ||||
transmission | SINOTRCK HW series 10 transmission, the structure of main box and gear box, WD615.62,WD615.87,WD615.69 with HW15710,WD615.47 with HW19710 | ||||
Front axle | HF9 the style of drum,rated weight 9t | ||||
Rear axle | HC16 | ||||
suspension | Front axle is steel spring,which with shock absorber and the horizontal stabilizer , | ||||
Steering system | ZF8098 steering gear box,Zfturning oil pump,system voltage with 18MPa | ||||
Electric system | voltage:24V;engine :1540W;starter:24V,7.5kW; accumulator:2×12V/165Ah | ||||
tyre | 11.00-20; optional 11.00-20 | ||||
Fuel tank volume L | 300 | ||||
Curb weight (truck/chassis) kg | 14600/10800 | 14600/10800 | 14600/10800 | ||
Gvw kg | 31000 | 31000 | 31000 | ||
Rated load (truck/chassis ) kg | 16270/20070 | 16270/20070 | 16270/20070 | ||
Dimension(l x w x h) mm | 10150×2496×3900 | 10150×2496×3900 | 10150×2496×3900 | ||
Chassis dimension l x w x h) mm | 9660×2496×3025 | 9660×2496×3025 | 9660×2496×3025 | ||
Wheel base mm | 1800+3200+1350 | 1800+3200+1350 | 1800+3200+1350 | ||
Front/rear overhang mm | 1500/(2300/1810) | 1500/(2300/1810) | 1500/(2300/1810) | ||
Wheel base (front/rear) mm | 2022/ 1850 | 2022/ 1850 | 2022/ 1850 | ||
Min ground cleagance mm | 314 | 314 | 314 | ||
Approaching/departure angle ° | 16/(18/25) | 16/(18/25) | 16/(18/25) | ||
Max speed km/h | 75 | 75 | 75 | ||
Max grade ability % | 50 | 50 | 50 | ||
Min turning diameter m | 23.7 | 23.7 | 23.7 | ||
Agitator tank volume m3 | 12; 14 | 12; 14 | 12; 14 | ||
Remarks | Optional WD615.62 |
|
| ||

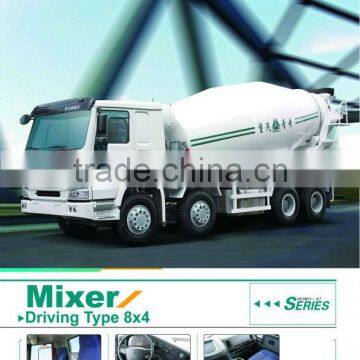

some pictures of the mixer truck:
