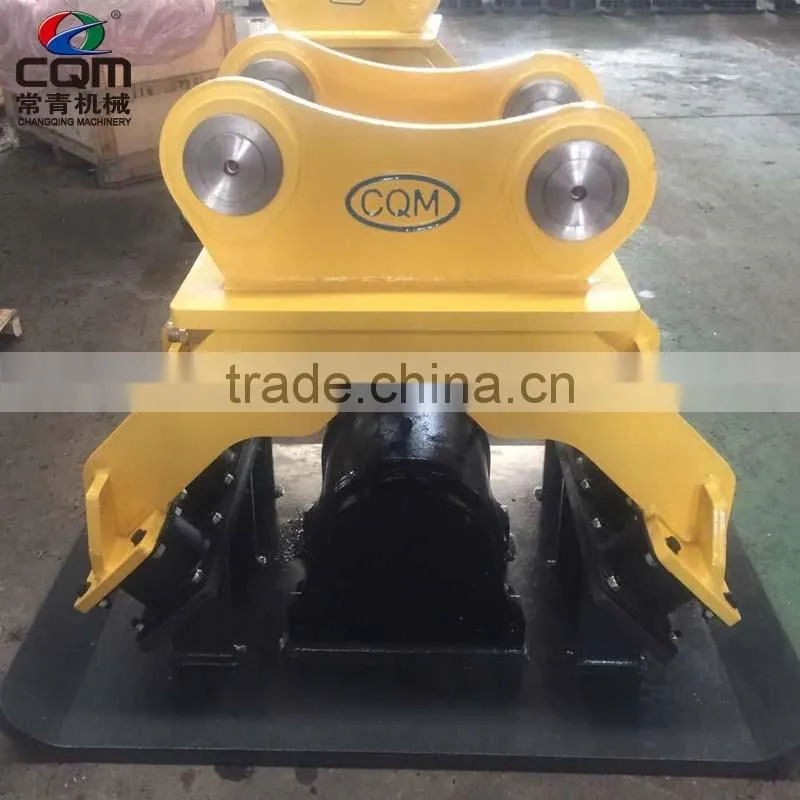

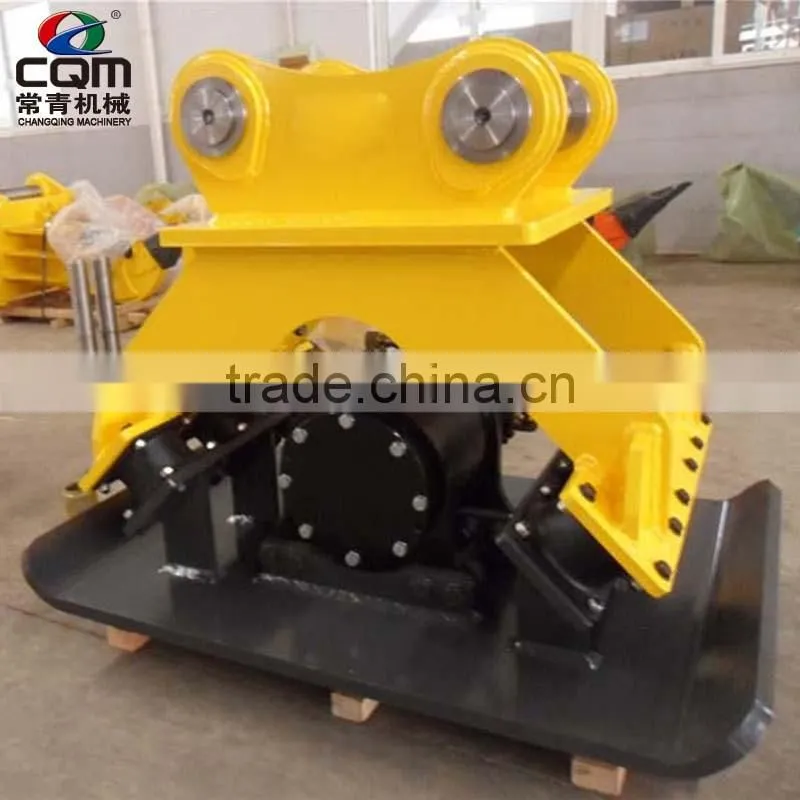

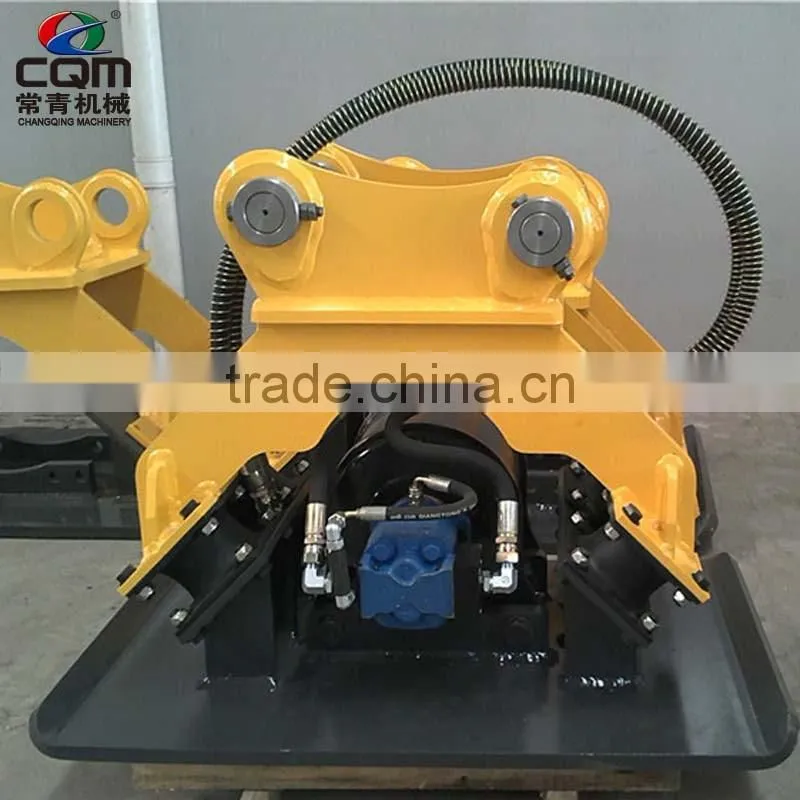

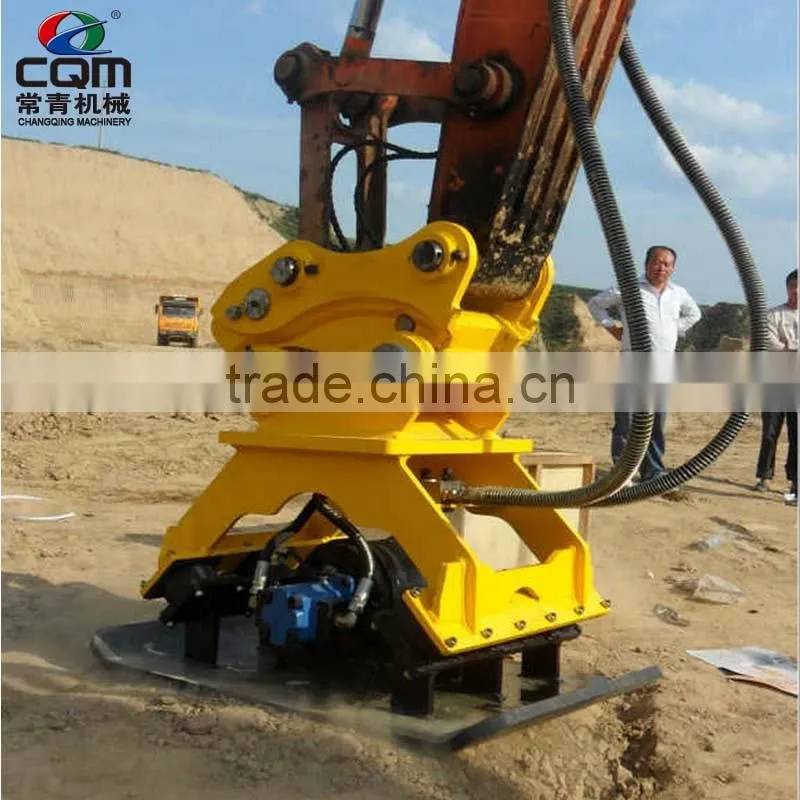

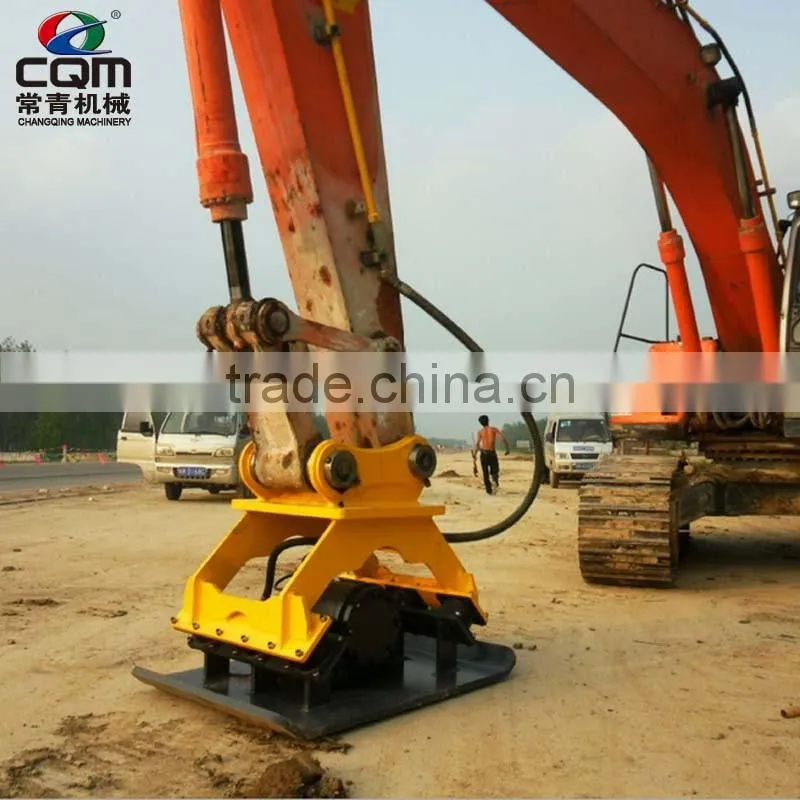

Hydraulic Plate Compactor Excavator
Excavator hydraulic rammer vibration tamping rammer compaction is a new kind of tool. In excavator hydraulic drive, the use of eccentric produce vibration force, high speed rotation of highway slope protection, pond dam, narrow strip of structures, compaction, the compaction effect. Hydraulic rammer, connect body to use high manganese steel, divided into four specifications, can adapt to 5-40 tons of excavator work, is another excavator good helper.
Name/Model |
CQ 03 |
CQ 06 |
CQ 08 |
CQ 10 |
Carrier(ton) |
4~9 |
11~16 |
17~23 |
23~30 |
Power of Impulse(ton) |
4 |
6.5 |
15 |
15 |
|
Maximum vibration frequency (rpm) |
2000 |
2000 |
2000 |
2000 |
Oil Flow (l/min) |
45~75 |
85~105 |
120~170 |
120~170 |
Pressure(kg/cm2) |
100~130 |
100~130 |
150~200 |
150~200 |
Weight(kg) |
300 |
500 |
900 |
950 |
|
Bottom Measurement ((L*W*T, mm) |
900x550x25 |
1160x700x28 |
1350x900x30 |
1350x900x30 |
Height(mm) |
760 |
920 |
1060 |
1100 |
Width(mm) |
550 |
700 |
900 |
900 |
Delivery time for order within available stock is in 7days
Delivery time for order without available stock is in 15days
Pre-sale Service
1.Supply item design,process design.
2.Help you to chose the fit machine.
3.Making the machine according to your requirement.
Sale Service
1.Acceptance equipment together with you.
2.Help you to make the method statement and the details of the process.
After Service
1.Guarantee for a year.
2.Quality problem,we will send you the accessories.
3.Free repair whole using life(without the freight and accessories charge).
Qingdao JInChangqing machine co., LTD.established in June 18, 1982, registered capital of 5.6 million . We have 4 branch companies in Jining ,Linyi and Qingdao .Main products: Garden Machinery including tree spade , lawn mower, polishing machine, MiniExcavator,Construction machinery and accessories, Road Marking and Mining equipment, Mining tools and so on.
In July 2006 we passed the ISO9001:2000 certification.Our company products have been exportedto the United States, Britain, France, Japan, Italy and more than 20 countries.
Are you manufacture?
Yes. We are one of leading manufacturers for Kinds of pneumatic torque wrench with many new production line.
What information do you want to know if i want to get a quotation?
a). The model/size of your products.
b). The application fo your products.
c). Special package methods if you needs.
d). Raw material.
What advantages do you have?
(a).Punctual: Have your orders met with the latest delivery?
We are a manufacturer with so many advanced and new machines.
It ensures we have the ability to carry out the production schedual for punctual delivery.
(b).20year production experience. We have over 20 years exprerience in this industry. That means we can preview the problems for the orders and production.
Therefore, it will make sure to deduce the risk of bad situation to happen.
