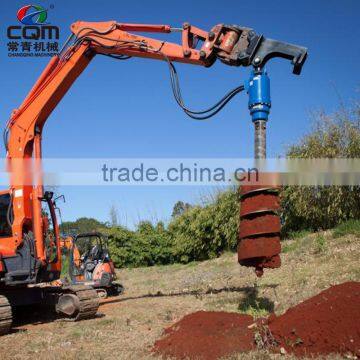

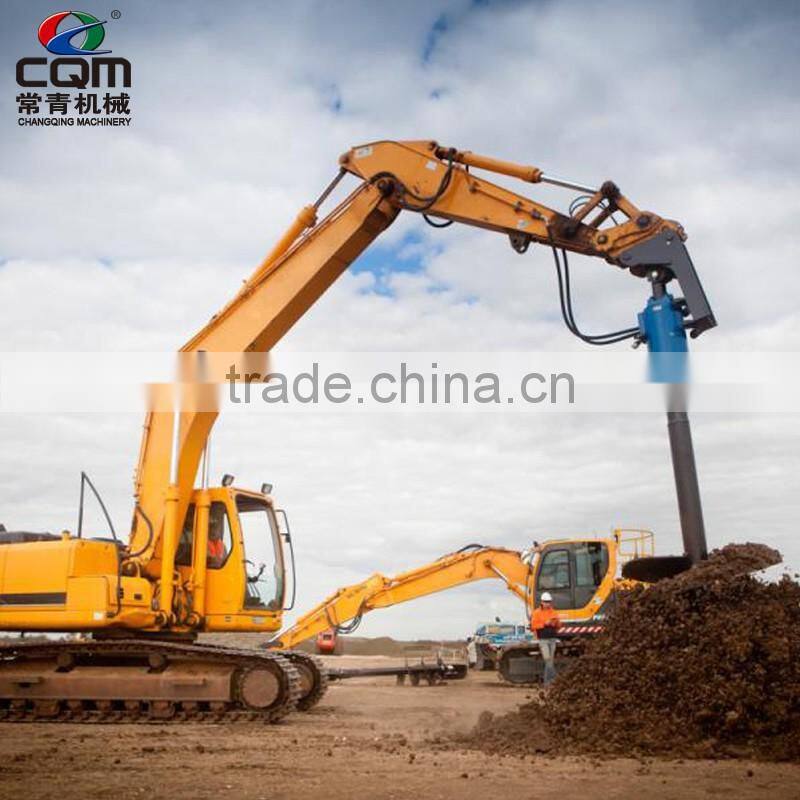

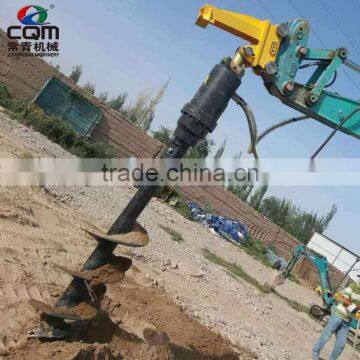

Excavator Earth Drill for Hydraulic Auger Drive
1.Supply item design,process design.
2.Help you to chose the fit machine.
3.Making the machine according to your requirement.
Sale Service
1.Acceptance equipment together with you.
2.Help you to make the method statement and the details of the process.
After Service
1.Guarantee for a year.
2.Quality problem,we will send you the accessories.
3.Free repair whole using life(without the freight and accessories charge).
Diameter and the depth of hole drilled
Diameter:From 100mm to 1200mm
Depth: we can provide extension shaft to meet your demand for depth
CQM Excavator augers also named as Earth Drills are produced with the updated international standards using high quality steel and the latest manufacturing techniques.
Parameters:
| Item | Unit | CQME02 | CQME03 | CQME04 | CQME05 | CQME06 | CQME07 |
| Application | ton | 1.5-3 | 2-4 | 2.5-4.5 | 3-5 | 4.5-6 | 5-7 |
| Torque | Nm | 790-2590 | 1094-3195 | 1374-3578 | 1374-3578 | 2570-6917 | 3163-8786 |
| Pressure | bar | 70-240 | 80-240 | 80-240 | 80-24 | 80-240 | 80-240 |
| Flow | Lpm | 25-65 | 25-70 | 40-80 | 40-80 | 40-89 | 48-110 |
| Rotate speed | Rpm | 36-88 | 30-82 | 35-75 | 35-75 | 20-46 | 20-45 |
| Output shaft | mm | 65rnd | 65rnd | 65rnd | 65rnd | 75rnd | 75rnd |
| Item | Unit | CQME08 | CQME10 | CQME15 | CQME20 | CQME25 | CQME60 |
| Application | ton | 6-8 | 10-15 | 12-17 | 15-22 | 17-25 | 20-40 |
| Torque | Nm | 3854-9961 | 5307-15960 | 6715-20998 | 8300-25768 | 15660-30400 | 27200-59500 |
| Pressure | bar | 80-240 | 80-260 | 80-260 | 80-260 | 120-240 | 160-350 |
| Flow | Lpm | 70-150 | 80-170 | 80-170 | 80-170 | 100-170 | 100-250 |
| Rotate speed | Rpm | 23-48 | 19-41 | 15-32 | 12-26 | 12-21 | 10-22 |
| Output shaft | mm | 75rnd | 75rnd | 75rnd | 75rnd | 75rnd | 110rnd |

1.Supply item design,process design.
2.Help you to chose the fit machine.
3.Making the machine according to your requirement.
Sale Service
1.Acceptance equipment together with you.
2.Help you to make the method statement and the details of the process.
After Service
1.Guarantee for a year.
2.Quality problem,we will send you the accessories.
3.Free repair whole using life(without the freight and accessories charge).
Qingdao Jinchangqing Mining machine co., LTD.
established in June 18, 1982, registered capital of 5.6 million . We have 4 branch companies in Jining ,Linyi and Qingdao .Main products: Garden Machinery including tree spade , lawn mower, Skid Loader, Mini Excavator, Construction machinery and accessories, Road Marking and Mining equipment, Mining tools and so on. In July 2006 we passed the ISO9001:2000 certification.Our company products have been exported to the United States, Britain, France, Japan,Italy and more than 20 countries.
Are you manufacture?
Yes. We are one of leading manufacturers for Kinds of pneumatic torque wrench with many new production line.
Do you have Stock producions to sell?
Yes, of course. But we also offer OEM service. Please send us some drawing.
What information do you want to know if i want to get a quotation?
a). The model/size of your products.
b). The application fo your products.
c). Special package methods if you needs.
d). Raw material.
Do you inspect the finished products?
Yes.Each step of products will be carried out inspection by QC department until shipping
