FS047B5-R-Y-F KCD4 T125 Electrical Rocker SwitchV Kema Rocker Switch

Name: FS047B5-R-Y-F KCD4 T125 Electrical Rocker SwitchV Kema Rocker Switch
Brand: fesu
SKU: 143014934
Availability: InStock

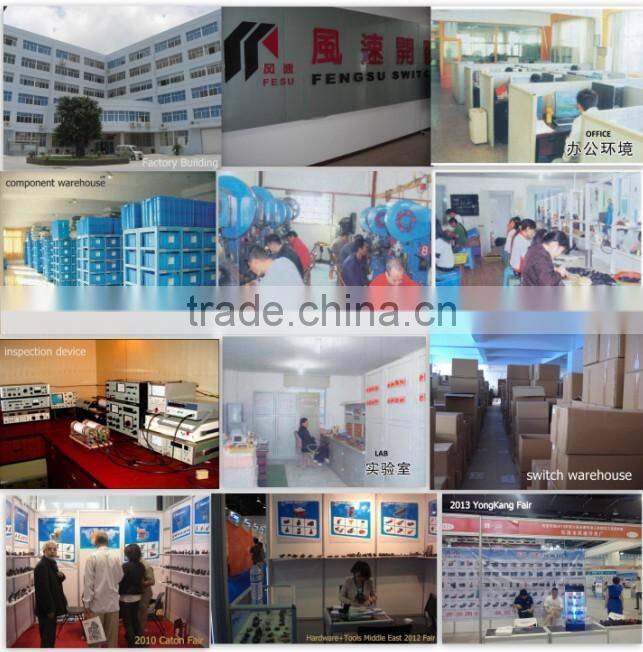

Yueqing Fengsu Switch Factory

US$ 0.1 - 0.5 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

fesu

Model Number:

fs047 rocker switch

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo or shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name fesu

Model Number fs047 rocker switch

Max. Current 16A

Max. Voltage 250V

Mechanical Life 10000

Product Description

FS047B5-R-Y-F KCD4 t125 electrical rocker switchV kema rocker switch

switch name :

KCD4 rocker switch, illuminated rocker switch,

2 way rocker switch , 2 position rocker switch,

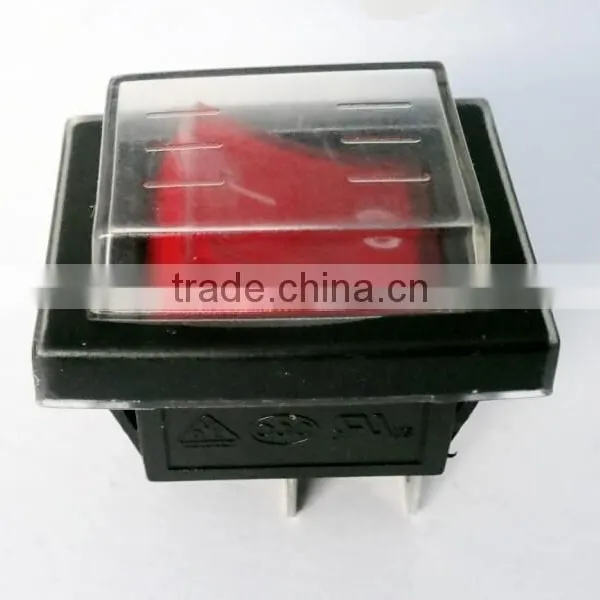

3 position rocker switch, T85 waterproof rocker switch,

DPST rock switch, DPDT rocker switch,electric push button switch rocker switch 20a 125v 15a 250v

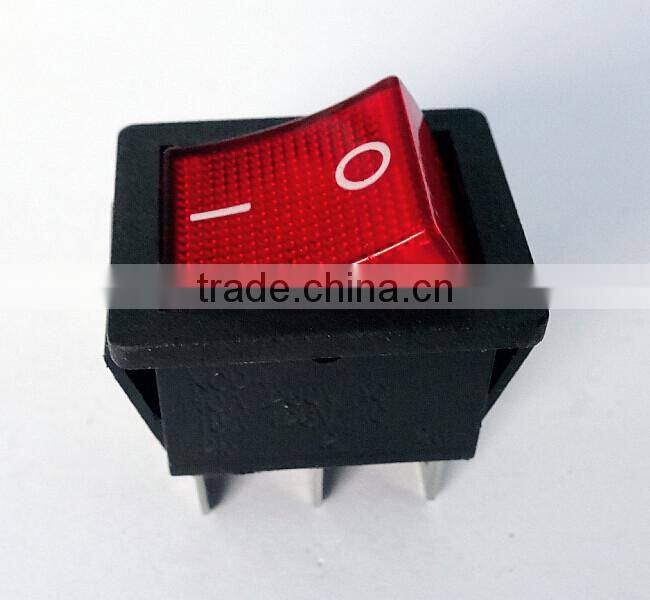

	KCD4 Series Illuminated Rocker Switches

	The KCD4 Series rocker switches, available in both illuminated and non-illuminated versions, are .850 inches in width and are designed to snap into the panel. They are double pole double throw and work great in industrial, audio/visual and lighting ballast applications.
	Certifications: TUV CE CQC
Specifications:
rating	20(8)A 125VAC/250VAC 16A 36VDC
temperature:	-10 °C to 55°C
mechanical life:	over 30 000 circles
electrical life:	over 10 000 circles
contact ressistance:	20mΩ Max.
insulation ressistance:	100 mΩ min
ambient temperature:	terminal side -20- +105°C
	actuating side:-20- +55°C
storage temperature:	-30- +85°C
acturating force:	4-8N(depends on different switch functions
flammability
temperature rise at terminal	MAX 30°C
solder ability of terminal	MAX 350°C,3s

material:
housing	PA66,A0520FN E154352
button	PA66 FR50 E41938
contact	Silver Alloy
terminal	BRASS Silver Plated
movable arm	BRASS Silver Plated
spring	SWP,SUS
lamp holder	PC/L-2250 E50070
