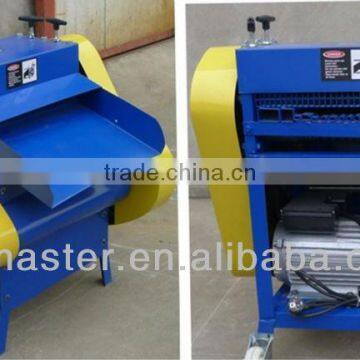

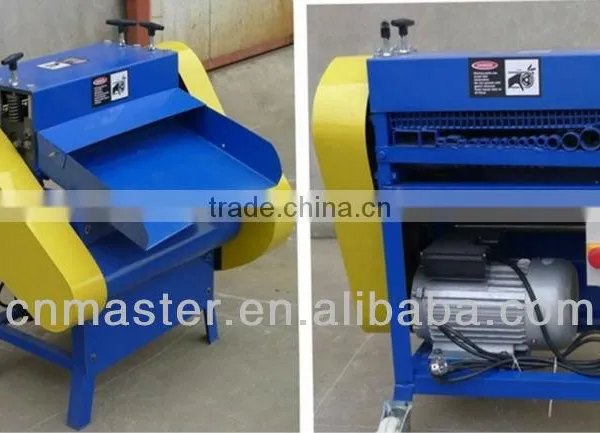

Copper Wire/Cable Cutting and Stripping machine (AWS-55)

wood case

Specifications

1. strip size1.5-55mm most of cables
2. 23knifes per machine
3. Newest multi-fifuction strip machine
4.Quality Guranteed CE

WE ARE GLAD TO SUPPLY ANY TECHNICAL SUPPORT NO MATTER BUY FROM US OR NOT,WELCOME TO CONTACT US FOR ANY PROBLEMS!



MODEL: AMW-55

NEWLY Multi-function wire stripping machine
Dual Cutting both top and bottom, add 6 cutting Knives (the first 6 channel)

Total 17pcs cutting wheels inside





SPECIFICATION:



Model	AWS-55
	Automatic wire stripping machine
Applicable Scope	Φ1mm~55mm
Name	New multi-function wire stripping machines
Size	70cm × 55cm × 84cm
Weight	110kg
Voltage Power	110v/2.2kw ,220v/2.2kw, 380v/1.5kw
Capacity	200kg-1000kg
Functions and features	It is the latest multi-function stripping machine which is the most advanced and functional disassembling device currently.    It processes various specifications and shape of cable, such as cable television line, three core and four core cable, wire, copper wire, monofilament strands, wire separation and so on.   The core and outer shell will be automatically separated after the blade rolling out from the insulating layer.











DESCRIPTION:

*3HP Motor,Belt&Gear Driven
*Power Supply:220V/110V/380V
*Cable Range:1-55mm
*9 round cutting Channels(including 2 flat cutting channel)

*Total 17pcs cutting wheel blades
*Dual Channel Six knifes stripping machine(Top&Bottom add first 6 round channels)
*Extra Handles easy for mooving the machine
*Front protecting Guards more save when operating

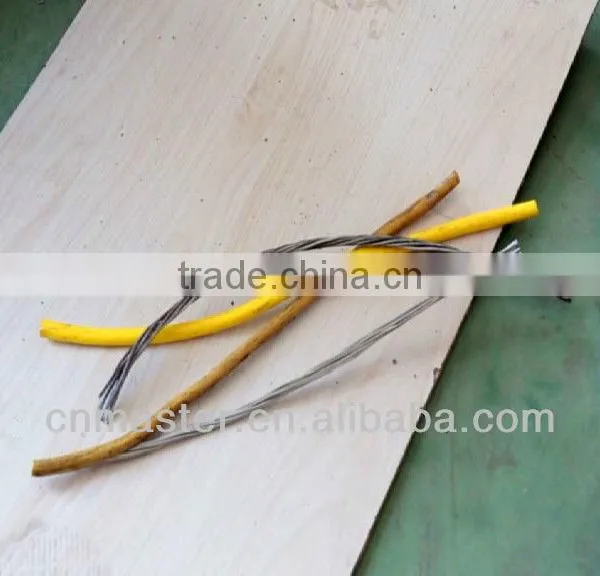

This machine can strip upto 55mm diameter ,such mult-functional wire stripper can strip almost all kinds of wires/cables.

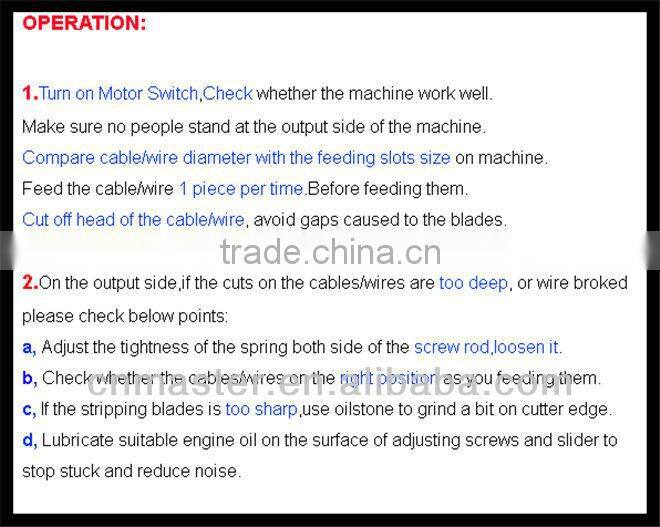

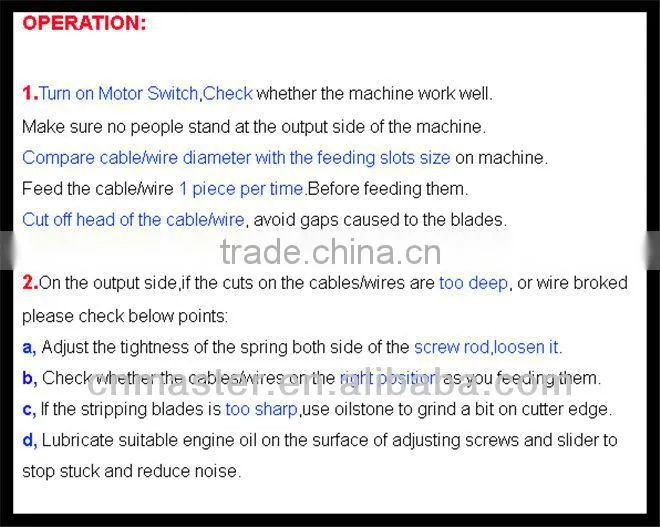

OPERATE PICTURE:

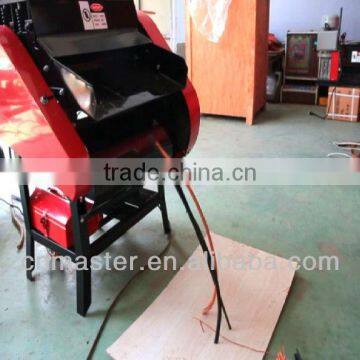

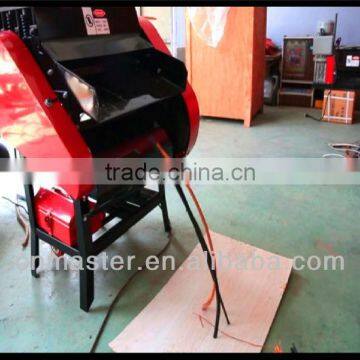

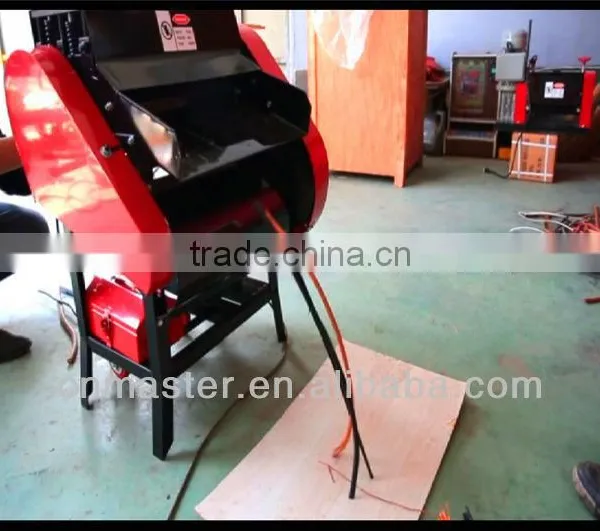

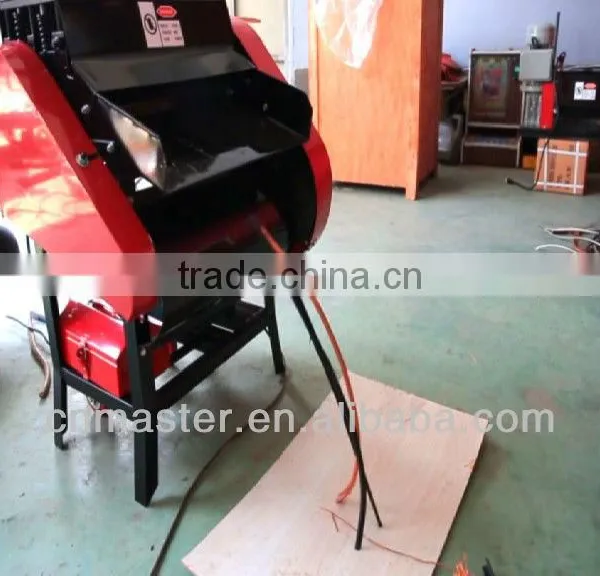

Put the wire into correct size of the cutting channel

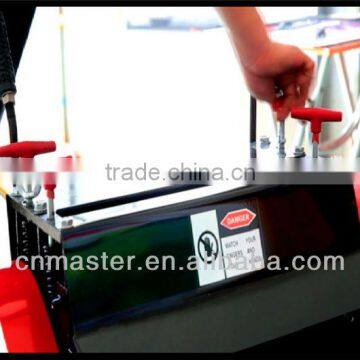

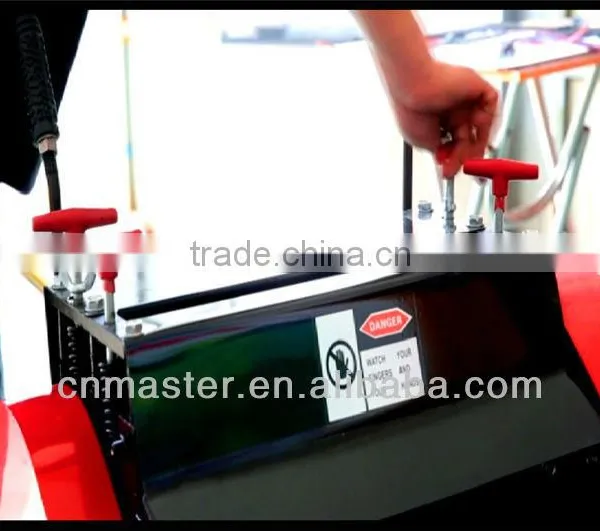

Adjust the Spring screw rod
