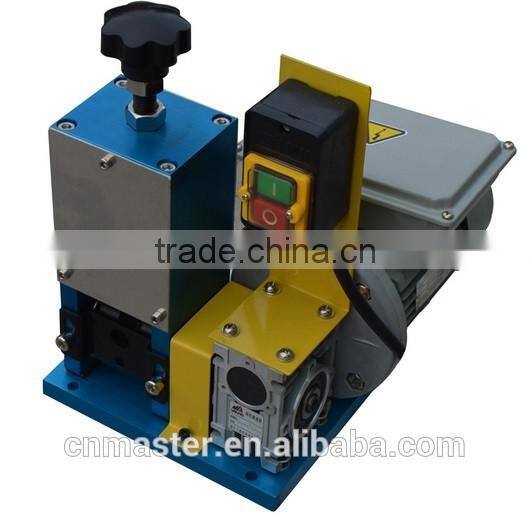

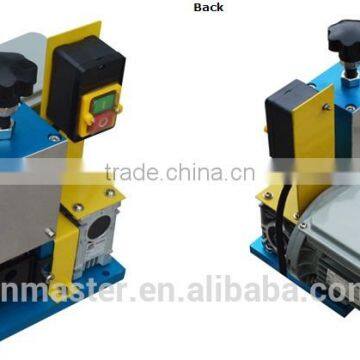

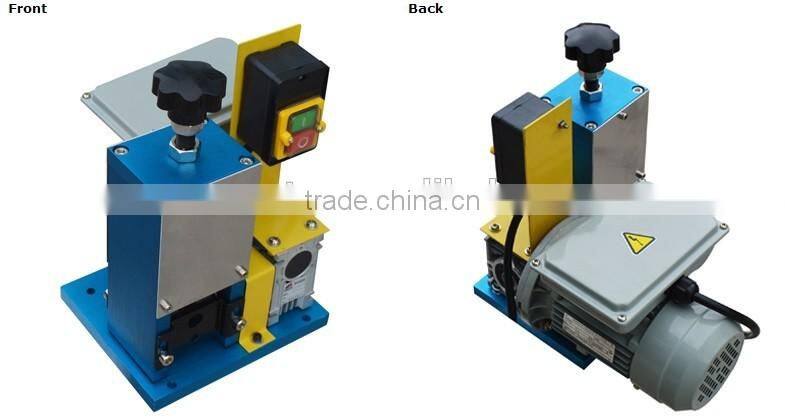

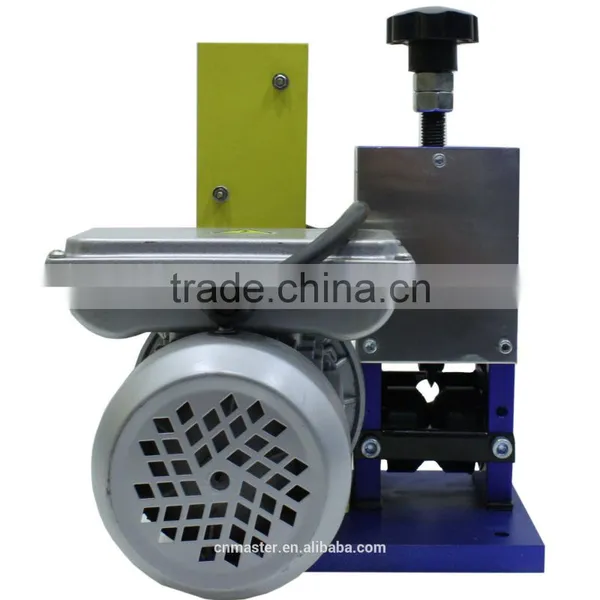

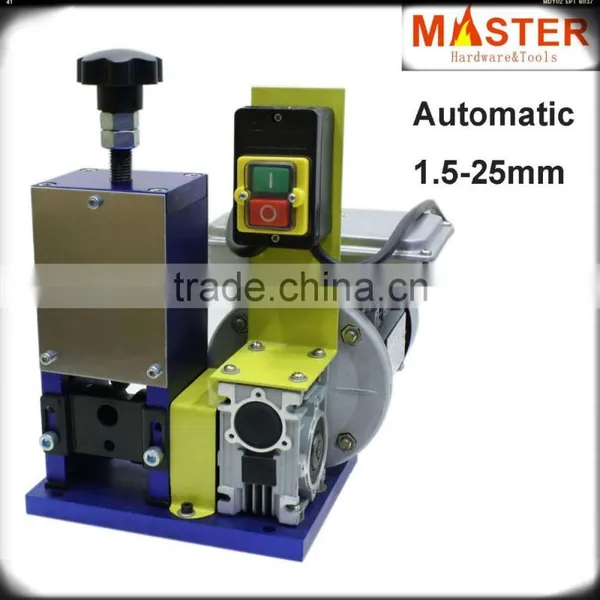

Used Copper Wire Cable Peeling Machine (AMWS-25)

Used Copper wire cable peeling machine (AMWS-25)

*Strip Size:1.5-25MM

*CE CERT.

*Motor Data:180W/220V/110V

*Electric&Manuel Dual use

*N.W/G.W:14/16KGS

This machine is easily to use,  portable,energy saving and good looks,just like the normal stripper  machine usage.

Adjust distance between blades and shaft in accordance with the cable  size(the insulating layer stripped but not hurt the inner conductor)

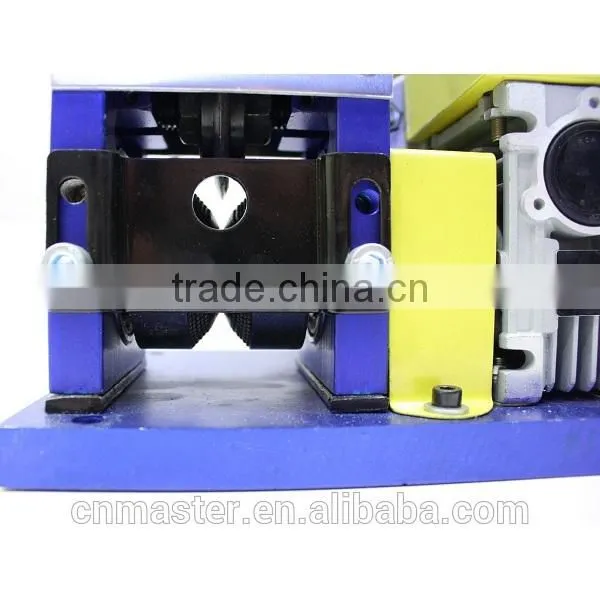

Feeding: strip the cables through feeding hole( you can adjust the  feeding hole according cable size to the proper position which cables  can enter into but not swing)

Stripping: (hand operated) rotate hand crank in order to peeling, if  can’t peel:
1,too small wire diameter
2,the blades center not in line with groove center( adjust the blades  core)
3,blades edge is too dull( sharpen the blades)

Notice: don’t input your hands into the machine in any circumstance.
