Home > Industrial Equipment & Components > Cutter & Tongs > Saw Blade > Dry Cutting Diamond Cutting Disc for Stone Diamond Saw Blade

Dry Cutting Diamond Cutting Disc for Stone Diamond Saw Blade

Dry Cutting Diamond Cutting Disc for Stone Diamond Saw Blade photo-1
Dry Cutting Diamond Cutting Disc for Stone Diamond Saw Blade photo-2
US$ 2 - 7 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Guangjing
Model Number:
stone saw blade
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Guangjing
Model Number stone saw blade
Blade Material Alloy Steel
Finishing Other
Size 105mm (4.2" ) to 230mm (9")
Product Description

Dry Cutting Segmented Blade—Professional for Stone Cutting

Product: Dry Cutting Segmented Blade—Professional for Stone Cutting

Brand Name: Guangjing

Place of Origin: Guangzhou, China

Outer Diameter: 105 to 230mm

Thickness of Segment: 1.8 to 2.6mm

Width of Segment: 7 to 10mm

Arbor: 20/22.23/25.4mm

Application: stone, ceramic, concrete, fire-retardant brick, decorative material, construction material and other nonmetal hard-brittle materials



105mm Segmented Blade—Professional for Stone Cutting

Type

Segmented

Outer Diameter

Segment Size

Arbor (mm)

Grade

Inch

Metric (mm)

Thickness (mm)

Width (mm)

 Sintered

4.2

105

1.8

7

20/22.23

Yellow for long life

Sintered

4.5"

110

1.8

7

20/22.23

Red for sharp type

Sintered

4.5"

114

1.8

10

20/22.23

Yellow for long life

Sintered

4.5"

114

1.8

15

20/22.23

especially for grooving

Sintered

4.5"

110

1.8

10

20/22.23

Blue for general cutting

Sintered

5"

125

2.0

8

22.23

For grooving

Sintered

7"

180

2.2

10

22.23/25.4

Fast cutting

Sintered

9"

230

2.4

10

22.23/25.4

Fast cutting



Detailed Images

Dry cutting diamond cutting disc for stone diamond saw bladeDry cutting diamond cutting disc for stone diamond saw blade

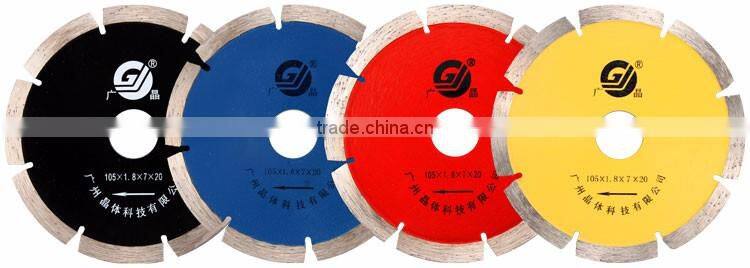

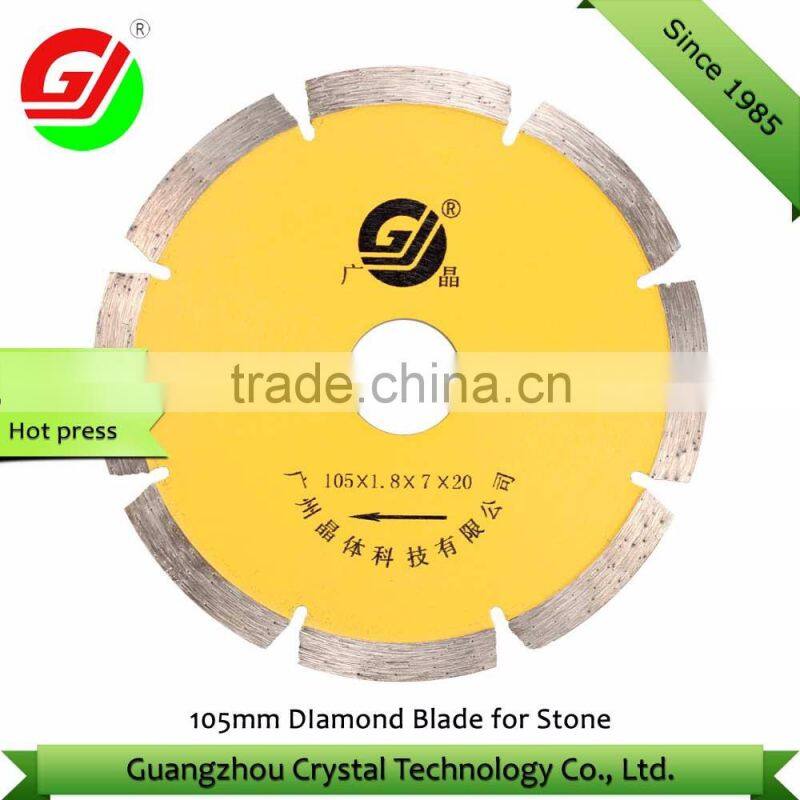

Different quality of D105mm diamond blade for stone

Dry cutting diamond cutting disc for stone diamond saw blade



Different quality of D110mm diamond blade for stone

Dry cutting diamond cutting disc for stone diamond saw blade

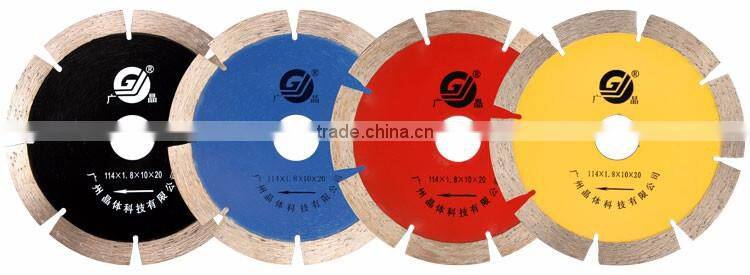

Different quality of D114mm diamond blade for stone

Dry cutting diamond cutting disc for stone diamond saw blade

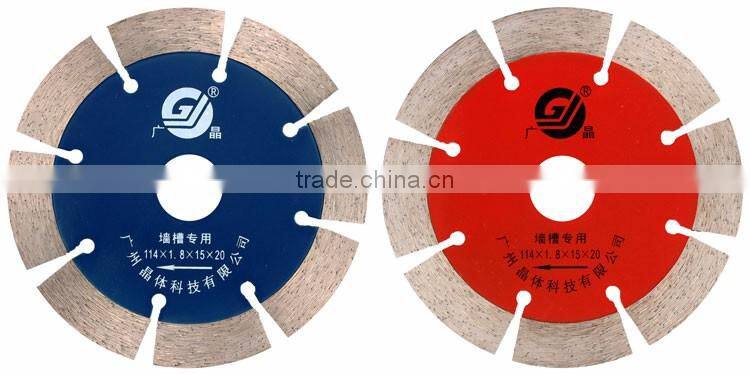

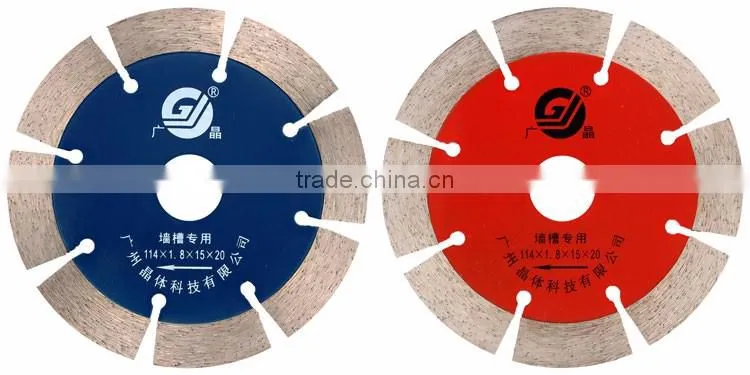

Different quality of D114mm diamond blade especially for wall grooving

Dry cutting diamond cutting disc for stone diamond saw blade

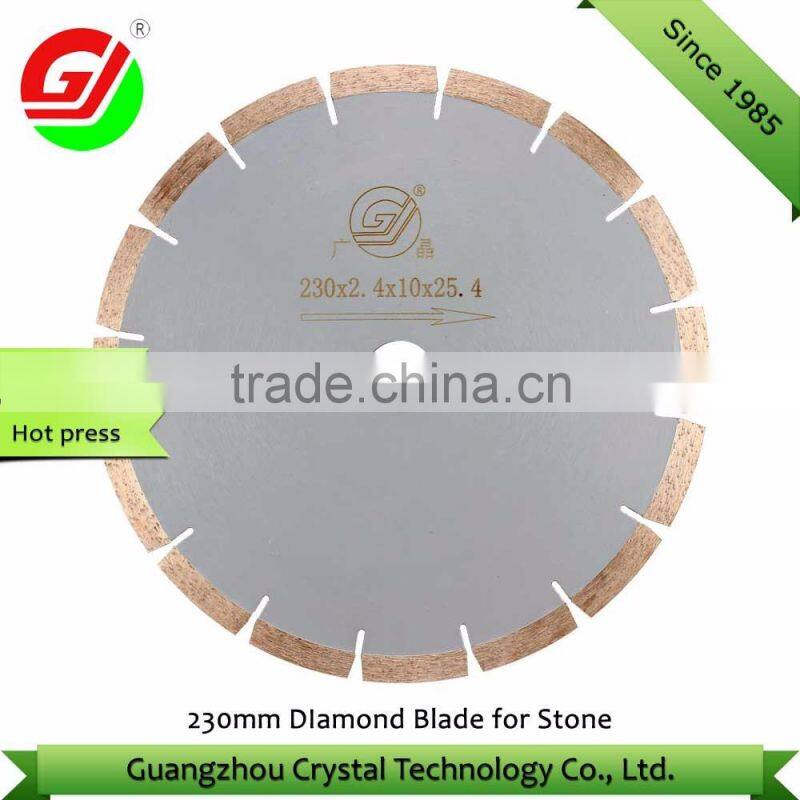

Diamond blade for stone D180mm                  Diamond blade for stone D230mm



Dry cutting diamond cutting disc for stone diamond saw bladeDry cutting diamond cutting disc for stone diamond saw blade

Package and Shipping

Packing DetailsStandard export package

Lead time7 days

Delivery methodBy sea, by Air, by international express service (Fedex, DHL, UPS and etc).

Production Process

Dry cutting diamond cutting disc for stone diamond saw blade








Our Services



Easy to start your business

Free samples available for testing.

NO MOQ for first 3 orders.



Compensation Policy
Any quality problem caused by our company side with enough evidence, we promise you that if could be re-produced for free.



Strict quality control

Testing by advanced welding-strength testing hammer, run out testing machine and tension testing machine. Also with mature, stable produce technology and well-trained workers. These factors are vital to provide high quality products to customers.

Dry cutting diamond cutting disc for stone diamond saw blade

Company Information

Guangzhou Crystal Technology Co., Ltd is a professional diamond tool manufacturer established in 1985 by Chinese Academy of Sciences. The factory locates in Guangzhou with a total area of 16200 square meters. It has over 100 well trained workers and 10 experienced engineers.



With the continuously-updating automatic machines and strong development ability, it has the capability to produce high quality as well as cost effective diamond tools for different markets. Focusing on diamond tools for ceramic and stone application, it also includes diamond tools for concrete, asphalt and glass application.



It gains high reputation with the domestic brand named “Guangjing” by itscreditable products and services. Since 2001, the company has started to export to Europe, US and many other areas and built up stable relationship with distributors.



We warmly welcome you to visit our factory if possible. We also sincerely hope to cooperate with you.







Trade Shows

Dry cutting diamond cutting disc for stone diamond saw blade





FAQ

Q: Are you manufacture or trading company?

A: We are professional manufacturer since 1985.



Q: Can I get samples before my order?

A: We provide samples for you to test.



Q: How long it will be to get samples?

A: For stocked products, it takes only 1 day.

    For customized products, it may be within 7 days.



Q: What is the delivery time if I place my order?

A: It depends on the complexity of products and the quantity you ordered.

   If it is our standard product, it is about 5-7 working days.

   If it is urgent, we’ll see what we can do .



Q: Can I put my logo on the product?

A: Yes, your logo can be put on the product by laser printing or silk-screen.



Q: Is it possible to get my customized packaging?

A: Sure, we have helped our customers to make their unique packaging for 31 years.
