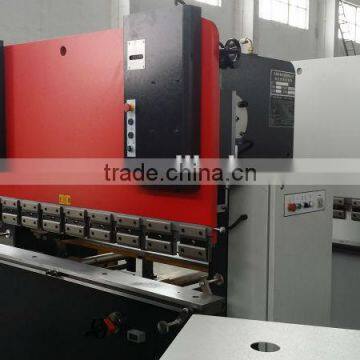

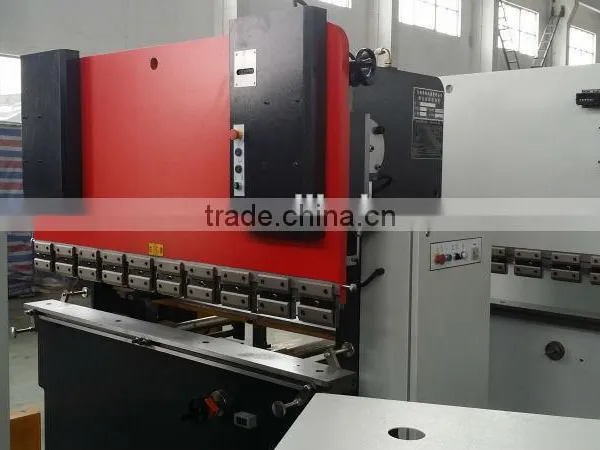

Home > Manufacturing & Processing Machinery > Cutting & Fold-bend Machine > Bending Machine > SMAC Brand Hydraulic Brake Press
US$ 8,000 - 25,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
SMAC
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PB-125/3200 Hydraulic Press Break From ChinaUS$ 10,000 - 30,000MOQ: 1 Set -
CNC Press Break /Metal Bending MachineUS$ 10,000 - 30,000MOQ: 1 Set
-
Cheap Price for Hydraulic Press BrakeUS$ 10,000 - 30,000MOQ: 1 Set
-
PB-100/3200 CNC Press BreakUS$ 10,000 - 30,000MOQ: 1 Set
-
PB-160/6000 CNC Press Break by Hydraulic SystemUS$ 5,000 - 20,000MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
SMAC
Model Number
PB-100/3200
Machine Type
Other, Press Brake, Press Brake
Raw Material
Other, Sheet / Plate Rolling, Sheet / Plate Rolling
Material / Metal Processed
Other, Alloy, Carbon Steel
Power
Cnc
Automation
Automatic
Extra Services
Other, End Forming, Cut To Lengt
Certification
Other, CE, ISO 9001:200
After-sales Service Provided
Engineers available to service machinery overseas
Feature
All steel srtucture, vibrating treatment of ageing for removal of internal stress,with good rigidity and stability.
Torsion shaft forced synchronization of mechnaical limit stopper balance,with high precision.
Integrated hydraulic transmission sysytem,large range of speed regulation to ransmission of the sliding block,stable and reliable performace.
Rear stopper and the sliding block have electrical adjustment for their sroke,with manual fine tuning,and digital indication.
Adjustment mechanism of sliding block independent from oil cylinder assembly to enhance sealing effect upper mold is fitted with tilting warp offest mechanism.
Safe guide is optional.
| Models | Pessing force(KN) | Working length(mm) | Dist between housings(mm) | Depth of throat(mm/s) | Stroke of ram(mm) | Approach-ing speed(mm/s) | Working speed(mm/s) | Returning speed(mm/s) | Adjustment of ram travel(mm) | Day Light (mm) | Motor power(kw) | Weight(kg) | Querall size L*W*H(mm) | |
| 10702 | PB-40/2000 | 400 | 2000 | 1615 | 200 | 100 | 100 | 8 | 70 | 70 | 340 | 4 | 3000 | 2100*1150 |
| *2000 | ||||||||||||||
| 10703 | PB-63/2500 | 630 | 2500 | 2020 | 250 | 100 | 90 | 8 | 70 | 70 | 335 | 5.5 | 4000 | 2600*1300 |
| *2090 | ||||||||||||||
| 10704-1 | PB-80/2500 | 800 | 2500 | 2015 | 250 | 100 | 90 | 8 | 70 | 70 | 350 | 5.5 | 4600 | 2600*1300 |
| *2180 | ||||||||||||||
| 10704 | PB-80/3200 | 800 | 3200 | 2565 | 250 | 100 | 90 | 8 | 70 | 70 | 350 | 5.5 | 5500 | 3300*1300 |
| *2200 | ||||||||||||||
| 10705 | PB-100/3200 | 1000 | 3200 | 2555 | 320 | 130 | 80 | 10 | 60 | 85 | 380 | 7.5 | 6600 | 3300*1410 |
| *2320 | ||||||||||||||
| 10706 | PB-100/40200 | 1000 | 4000 | 3105 | 320 | 130 | 80 | 10 | 60 | 85 | 340 | 7.5 | 8200 | 4100*1415 |
| *2450 | ||||||||||||||
| 10707 | PB-125/3200 | 1250 | 3200 | 2550 | 320 | 130 | 80 | 8 | 60 | 85 | 380 | 7.5 | 7300 | 3300*1460 |
| *2450 | ||||||||||||||
| 10707-1 | PB-1254/4000 | 1250 | 4000 | 3100 | 320 | 130 | 80 | 8 | 60 | 85 | 380 | 7.5 | 8700 | 4100*1465 |
| *2505 | ||||||||||||||
| 10708 | PB-160/3200 | 1600 | 3200 | 2550 | 320 | 150 | 80 | 9.5 | 60 | 110 | 400 | 11 | 8900 | 330*1540 |
| *2460 | ||||||||||||||
| 10709 | PB-160/4000 | 1600 | 4000 | 3100 | 320 | 150 | 80 | 9.5 | 60 | 110 | 400 | 11 | 11500 | 4100*1540 |
| *2650 | ||||||||||||||
| 10709-1 | PB-200/3200 | 2000 | 3200 | 2250 | 320 | 200 | 70 | 7.5 | 60 | 110 | 435 | 11 | 10900 | 3300*1715 |
| *2756 | ||||||||||||||
| 10710 | PB-200/4000 | 2000 | 4000 | 3140 | 320 | 200 | 70 | 7.5 | 60 | 110 | 460 | 11 | 13300 | 4100*1715 |
| *2950 | ||||||||||||||
| 10710-1 | PB-250/3200 | 2500 | 3200 | 2430 | 400 | 250 | 70 | 7.5 | 66 | 120 | 460 | 15 | 14500 | 3300*1980 |
| *3020 | ||||||||||||||
| 10711 | PB-250/4000 | 2500 | 4000 | 3120 | 400 | 250 | 70 | 7.5 | 66 | 120 | 460 | 15 | 18000 | 4100*1750 |
| *3700 | ||||||||||||||
| 10713 | PB-250/5000 | 2500 | 5000 | 3800 | 400 | 250 | 70 | 7.5 | 66 | 150 | 460 | 15 | 21300 | 5100*1750 |
| *3800 | ||||||||||||||
| 10714 | PB-300/5000 | 3000 | 5000 | 3820 | 400 | 250 | 60 | 5 | 48 | 110 | 560 | 15 | 26000 | 5100*2245 |
| *4210 | ||||||||||||||
| 10715 | PB-400/4000 | 4000 | 4000 | 3110 | 400 | 250 | 58 | 6.5 | 42 | 110 | 630 | 30 | 3000 | 4100*2315 |
| *4035 | ||||||||||||||
| 10716 | PB-500/3200 | 5000 | 3200 | 2300 | 400 | 250 | 80 | 8.5 | 75 | 120 | 630 | 30 | 2600 | 3300*2300 |
| *3785 | ||||||||||||||
| 10717 | PB-125/6000 | 1250 | 6000 | 4500 | 320 | 150 | 70 | 7.5 | 60 | 110 | 380 | 7.5 | 16000 | 6100*1700 |
| *2350 | ||||||||||||||
| 10718 | PB-160/6000 | 1600 | 6000 | 4500 | 320 | 200 | 60 | 5 | 45 | 110 | 455 | 11 | 18000 | 6100*1700 |
| *2500 | ||||||||||||||
| 10719 | PB-200/6000 | 2000 | 6000 | 4500 | 320 | 200 | 60 | 5 | 48 | 110 | 455 | 15 | 21000 | 6200*2000 |
| *2700 | ||||||||||||||
| 10720 | PB-250/6000 | 2500 | 6000 | 4500 | 320 | 250 | 58 | 5 | 42 | 110 | 525 | 15 | 24000 | 6300*2100 |
*3170 |
