Automatic Single Line Tube Punching Machine

SJR Machinery Co., Ltd.
Automatic Single Line Tube Punching Machine thumbnail-1
Automatic Single Line Tube Punching Machine thumbnail-2
Automatic Single Line Tube Punching Machine thumbnail-3
Automatic Single Line Tube Punching Machine photo-1
Automatic Single Line Tube Punching Machine photo-2
Automatic Single Line Tube Punching Machine photo-3
US$ 10,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC, CNC
Power Source:
Other, Hydraulic, Hydraulic
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Power Source Other, Hydraulic, Hydraulic
Place of Origin Jiangsu, China
Brand Name SMAC
Model Number SMAC50A
Voltage 380V,220V,415V, 380V,220V,415V
Power(W) 2000
Weight 3000, 3.5T
Dimension(L*W*H) 8200 * 1300 * 2300 mm
Certification ISO, ISO9001
Warranty 12 Years
After-sales Service Provided Engineers available to service machinery overseas

Product Description

 automatic single line tube punching machine

Features:

1. TFT human machine interface display,touch controllable display setting,digital control systems,servo motor position scaling precision,and modular memory function
2. Operational Function: inching/Automatic Functions
3. Engnieering Motion Classification:l .single puncturing operation.2.irregular interval puncturing.3.regular interval puncturing
4. Oil Hydraulic System:step-less operation adjustment, hydraulic Ippps designed with zero load, combined with extremely Iow frequency oil pump motor, effectively reduced noise,increased motor efficiency and service duration
5. Whenever the oil cylinder is moving downward,the machine is designed with hydraulic difference driving loops rated at high or Iow RPM it is also featured with high speed downward moving,low speed processing and hi-speed position resume. It is available to increase the formation stability of work pieces during puncturing. In addition to increasing the activation speed,it can effectively reduce HP load to save electrical energy.
6. The electrical control system is designed with human machine in terface l$0mm (Stroke available for positioning)the mold set is designed with 600mm in depth available for forward and backward 150mm moving accessibility Our machine is designed with the Italy-made digital scale(LCD display)with high precision.
7. Our machine is adopted with Japan-made servo motor driving devices and the feedin and receiving speed can be ser to high speed and high precision to enhance tje productivity.
8. It is features with sufficient clamping force of clamping oil cylinders and the position of work pieces is stable and uneasily loose off.

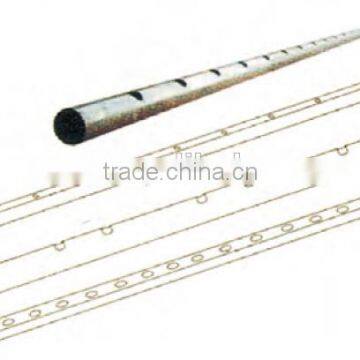

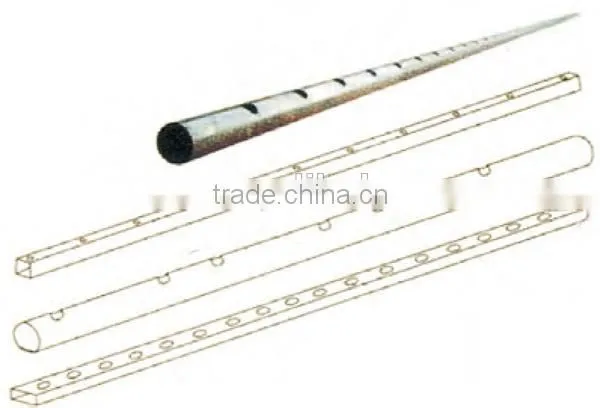

9. Application:Square tube,rectangle pipe and round pipe puncturing
10. Servo Feed-in Positioning Frame Length:7000mm
11. Body:1500mm W:8200mm H:2500mm Total Weight: ST


Main parameter:

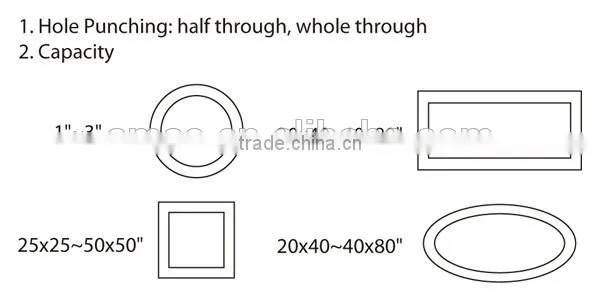

Aperture and thickness:Φ50×τ3~~~~~Φ16×τ11
The diameter of the puncturing pipe:
 Round pipe:Φ16-----Φ150
 Quartet tube:20×20-------75×75
 Rectangular tubes:15 × 30 ------- 60 × 120
 Iron pin :30 × 30-------- 75 × 75
 Iron trough :25 × 50-------- 60 × 120
Punching Hole Distance:0.1mm-------------2900mm   200holes
Punching speed:1.5 second /pcs       150mm stroke
Punching the longest distance:2900mm
Standard processing length:6000mm (can stretch)
Feeding the fastest servo speed:50000mm / min
Processing settings categories:single-punch, non-equidistant punching, punching equidistant,360 ° rotating punching.
Size and weight:8200 * 1300 * 2300 mm, 3.0t





Packaging & Shipping



The machines are packed with wooden case or depend on your requires.

Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign







Our Services



1.OEM



2.Spare parts



3.Warranty for one year



4.Tech support is available for 24 hours



5.Fast delivery





Company Information

  Found in 1984 Our SMAC/Jmech Machine Tool Co., Ltd as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. specializes in import& export of brand-new industrial machinery & tools. Our mechanical products cover more than 80 kinds including lathe, milling machine, grinding machine, power press, hydraulic guillotine, hydraulicpress brake, CNC & automotive machines and so on, which have been exported to 50 or more countries & areas.SMAC/Jmech Machine Tool Co., Ltd is proud to be the professional, high reputation company with high-qualified & professional staff, competitive prices and quick & thoughtful after-sale service to cooperate with you.

OFFICE VIEW









CERTIFICATION:



customer visiting:







Our products are exported to more than 50 countries, more than 700 customers













FAQ



1. Accept L/C, T/T  ,D/A,D/Ptype of payments



2. Regarding to the technical questions, pls contact our R&D



3. Any question, call us or send email, we will try our best to satisfy you
