Single-head Bending Machine

Name: Single-head Bending Machine
Brand: SMAC
Availability: InStock

FOB Price

US$ 5,000 - 10,000 / Set

1 Set(Min. Order)

Port shanghai port
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	SMAC	Model Number	28CNC
Machine Type	Pipe and Tube Bending Machine	Raw Material	Steel Bar
Material / Metal Processed	Stainless Steel	Power	Cnc
Automation	Automatic	Extra Services	Cut To Length
Certification	CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Single-head Bending Machine

Characteristics of the machine:

It adopts imported special control system.The action of the machines is stedady.It has functions of hand-operated,inching,auto,setting,changing-program,showing and others.It is suitable for high speed batch production.

Characteristics of CNC series Economic Type Contact Control Single-layer Die Machine:

(1) It has Y(sending material),B(rotating pipe),C(bending pipe)three-axie electric servodriving.

(2)C-Axie(bending pipe)servodriving concealed type and straight driving design.

(3) Speed is fast and correct .It is suitable for producing small tube elements,such as parts of automobile or air conditioneres.

Characteristics of CNC Series Economic Type Contact Control Multiple-layer Die Machine:

(1)CNC Series are economic type contact control multiplelayer die machine,the three-axle Y(sending material),B(rotating pipe),C(bending pipe)all adopt electric servodriving motor driving.It adopts auto changing-die bearing of the V-axis head.

(2)Its processing is fast and its procession is high.It is suitable for producing large batches of products,such as furniture,sport instrument ,kits of automobile or aircrafts.

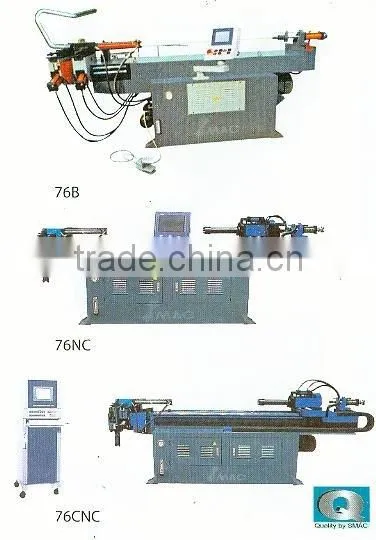

Normal type		28B	38B	42B	50B	60B	63B	76B	89B	100B	114B	120B	129B	159B	168B
NC type		28NC	38NC	42NC	50NC	60NC	63NC	76NC	89NC	100NC	114NC	120NC	129NC
CNC type		28CNC	38CNC	42CNC	50CNC	60CNC	63CNC	76CNC	89CNC	100CNC	114CNC	120CNC	129CNC
Max.Bending Pipe Capacity	mm	Φ28x2	Φ38x2	Φ42x2	Φ50x2	Φ60x2	Φ63x5	Φ76x5	Φ89x5	Φ100x5	Φ114x5	Φ120x5	Φ129x5	Φ159x8	Φ168x8
Bending Radius Region	mm	28-180	30-200	30-250	35-250	35-300	40-300	60-350	60-400	60-450	80-500	80-500	80-550	100-600	100-650
Bending Angle Region		0-190⁰	0-190⁰	0-190⁰	0-190⁰	0-190⁰	0-190⁰	0-190⁰	0-190⁰	0-190⁰	0-190⁰	0-190⁰	0-190⁰	0-190⁰	0-190⁰
Through Effective Distance	normal	18000	25000	28000	28000	28000	30000	35000	40000	4000	4200	4200	4500	7000	7500
Through Effective Distance	NC/CNC	1600	2000	2000	2000	2000	2000	2800	2800	2800	2800	2800	2800	7000	7500
Oil pressure system motor	kw	3.2	4	4	5.5	5.5	7.5	7.5	11	11	15	15	15	22	22
ure	kg/cn	150	150	150	150	150	150	150	150	150	150	150	150	150	150
Length	normal	350	350	450	450	500	550	550	600	600	650	650	700	1000	1000
Length	NC/CNC	320	420	450	450	450	500	550	650	650	700	700	800	1000	1000
Width	cm	65	80	80	80	80	80	110	110	110	110	110	110	140	140
Height	cm	130	130	130	130	130	130	135	135	135	135	135	135	180	180
Weight (kgs)	Normal	1200	1500	1800	1800	2500	3000	3500	4500	5000	5500	5800	6800	10000	1200
	Normal	1800	2000	2200	2500	2800	3500	4000	5000	5500	5800	6000	7200
	NC/CNC	1800	2000	2200	2500	2800	3500	4000	5000	5500	5800	6000	7200

Packaging & Shipping

The machines are packed with wooden case or depend on your requires.

Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign

Our Services

1.OEM

2.Spare parts

3.Warranty for one year

4.Tech support is available for 24 hours

5.Fast delivery
