EDM machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New		CNC or Not	CNC
Place of Origin	Jiangsu, China		Brand Name	SMAC

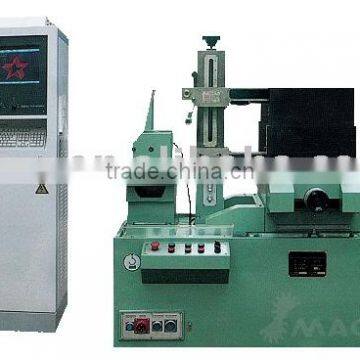

EDM machine/edm/wire cut edm/cnc wire cut edm
Table size:520 x 336 (mm) .576 x 366 (mm).690 x 410 (mm) .1100 x 720 (mm) .1300 x

*EDM machine/edm/wire cut edm/cnc wire cut edm*

Specification	Model	16101 DK7725	16104 DK7732	16105 DK7740	16106 DK7763	16107 DK7780
Table size		520 x 336 (mm)	576 x 366 (mm)	690 x 410 (mm)	1100 x 720 (mm)	1300 x 820 (mm)
Table travel X/Y workpiece		250 x 320 (mm)	320 x 400 (mm)	400 x 500 (mm)	630 x 800 (mm)	1000 x 820 (mm)
Thickness		400mm	400mm	400mm	500mm	500mm
Taper		6°/80mm	6°-30°/80mm	6°-30°/80mm	6°-30°/80mm	6°-200mm
Max machining speed		100mm2/min
Roughness		Ra ≤2.5μm
Wire diameter		Φ0.1-Φ0.2mm
Wire travel speed		11m/s
Working liquid		DX-1 DX-4-1
Accuracy standard		G7926-87
Plus		0.001mm
Power consumption		≤1.2KW
Table loading		120kg	250kg	320kg	1000kg	1200kg
Weight		950kg	1100kg	1800kg	4000kg	5000kg
Overall size		1300x900x1465mm	1380x920x1465mm	1500x970x1465mm	2200x1900x1700mm	2900x2800x2500mm
Packing		1600x1100x1800mm	1700x1200x1800mm	1800x1200x1900mm	2600x2150x2100mm	3200x3100x2800mm
