the Hot Sale and High Precision China New Universal Milling Machine HUM24 of China of SMAC

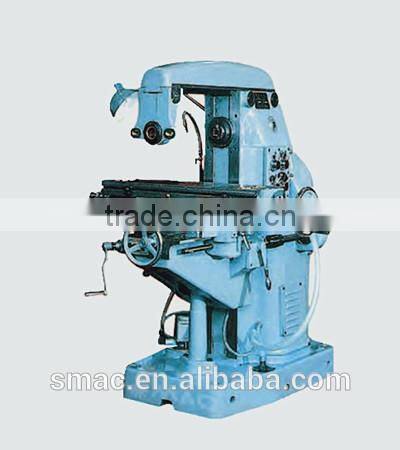

the Hot Sale and High Precision China New Universal Milling Machine HUM24 of China of SMAC thumbnail-1

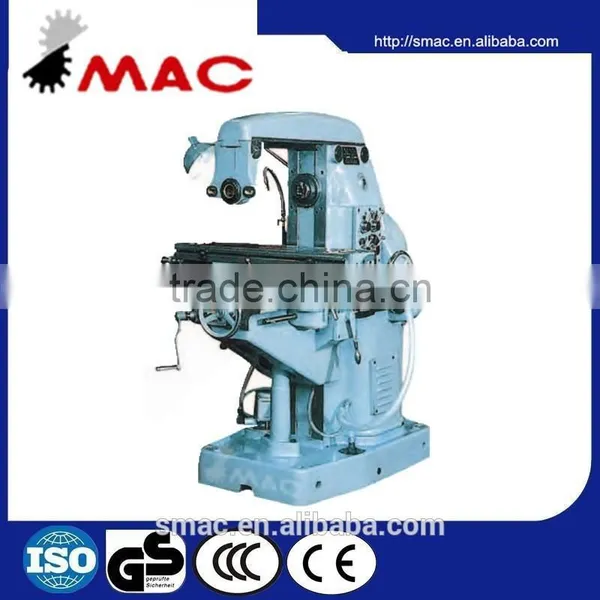

the Hot Sale and High Precision China New Universal Milling Machine HUM24 of China of SMAC photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
SMAC
Contact Supplier Request Quote Chat Now
SJR Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai.china
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name SMAC
Model Number HUM24
Type Universal
CNC or Not Normal
Voltage 380V
Power(W) 1.5kw
Dimension(L*W*H) 1400*1240*1478mm
Weight 1200kg
Certification CE;ISO
Warranty 1 year



Product Description



china new universal milling machine HUM24

Specifications

Multi functional milling machine
Automatic rapid feed X Y Z
Easy control
High speed milling head
vertical and horizontal

Standard Accessories

Milling arbors

Tools

Draw-bolts

Manuals

Optional Accessories Universal milling head

Rotary table

Machine vice

Milling chuck collets





product show



china new universal milling machine HUM24

the hot sale and high precision china new universal milling machine HUM24 of china of SMAC







Date



china new universal milling machine HUM24

Model   HUM30A HUM30A/L HUM24 HUM25
Table size mm 300 x 1150 300 x 1500 240 x 810 250 x 900
T slots (N x W x D) mm 3 x 18 x 70 3 x 18 x 70 3 x 14 x 54 3 x 14 x 54
Longitudinal travel X mm 680 780 480 500
Cross travel Y mm 235 235 165 165
Vertical travel Z mm 400 400 300 300
Max. rotary angle of table       ±45° ±45°
Arbor diameter mm Ø22 Ø27 Ø22 Ø27 Ø22 Ø27 Ø22 Ø27
Min. distance between spindle center to talbe mm     60 60
Spindle hole taper   MT4 7:24 MT4 7:24 MT3 or 30# 7:24 MT3 or 30# 7:24
Spindle speed steps   12 12 6 12
Spindle speed ranges r/min 35-1600 35-1600 31-570 32-1250
Distance between spindle center to arm mm     160 160
Feed speed steps   14 14 6 6
Feed speed ranges: Longitudinal X mm/min 12-720 12-720 7.3-111.9 5.6-181
Cross Y mm/min 12-720 12-720 14.9-226.3 11.3-146.2
Vertical Z mm/min 4-240 4-240 6-90.4 4.5-146.2
Main motor power kw 4 4 1.5 2/2.4
Main motor speed r/min 440rpm 440rpm 1430 1430
Cooling pump power kw 40w,2500rpm 40w,2500rpm 0.12 0.12
Overall size mm 1690 x 1535 x 1630 1690 x 1535 x 1630 1400 x 1240 x 1478 1400 x 1330 x 1478
Packing box size mm     1500 x 1340 x 1760 1500 x 1340 x 1760
Net weight Kg 2100 2900 1200 1300





packing show

the hot sale and high precision china new universal milling machine HUM24 of china of SMAC



our team

the hot sale and high precision china new universal milling machine HUM24 of china of SMAC



our factory

the hot sale and high precision china new universal milling machine HUM24 of china of SMAC



Our Services

Our service:

1,Your inquiry will be replied in 24 hours.

2.Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 6

    years.And there is more industry technology experience for 20 years with our manufactures

3.To offer free spare parts and service within one year of warranty

4.Technology Support Provide operation video for training

5.Professional after-sales service team

6.Give reasonable offers with the best quality



Our advantage:

1,More then 20 years experience for indusry product

2,All modles with CE,TUV,SGS,ISO9001/9002 or other authority approved

3,Professional service and technology

4,Excellent reputation all over the world

5,Final exported producuts would pass strict test by international authority BIVAC

6, There is more exporting experience for 20years with our owned manufacture/company
