Hydraulic Press/hydraulic machine/press machine/hydraulic brake

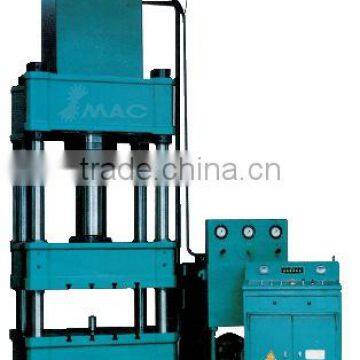

Y32 Serial Press composed of main body and control devices

*Hydraulic Press/hydraulic machine/press machine/hydraulic brake*



Application of machine:
Y32 Serial Press composed of main body and control devices which respectively formed with frame, main cylinder, knock-out cylinder, hydraulic system and drive mechanism, lower and upper limit switches pipe lines, electrical control cabinet and etc.
Drive mechanism includes oil tank, high pressure pumps, low pressure control sytem,valves, Electrical control system is designed according to the working procedure of hydraulic principle. By preset, sequential operation can be achieved by drive mechanism via pumps,cylindres, valves, tank and pipe lines.
The press Y32 is appliable to compression of plastic materials, For example, powder and plastics products forming and heat/cool metal extrusion, metal sheet drawing, stamping,bending,edge-folding, straightening, depressed mounting and etc.
Independent drive structures and electrical devices insure reliable operation with centered control buttons. Adjustment, manual operation and semi-automatic operation, three modes are provided respectively for your choice.
The working pressure, pressing speed, unload-descending speed and decelerated pressing speed can be respectively adjusted in reqirements.
By preset, knock-out, non-knock-out and drawing can be taken out with pressure-depentdent or distance-dependent movement of die. In the case of pressure-dependent movement, the main cylinder of YQ32 type press initiates pressure-holding, time delay and automatic return.





Specification		Model	Unit	11601	11602	11603	11604	11605	11606
				YQ32-40	YQ32-63	YQ32-100	YQ32-100A	YQ32-160	YQ32-200
Nominal force			KN	400	630	1000	1000	1600	2000
Knock-out force			KN	120	190	190	190	240	400
Max. working hydraulic pressure			Mpa	25	25	25	25	25	25
Slide-stroke			mm	450	500	600	600	700	700
Knock-out stroke			mm	150	200	200	200	200	250
Max. distance between lower sur-face of slide and surface of table			mm	700	800	900	900	1050	1100
Slide-travel speed	Idledown running		mm/s	40	100	22	180	120	100
	Working		mm/s	15	20	14	14	10	12
	Return		mm/s	50	60	47	60	60	52
Effec-tive area of table	Left-right		mm	500	560	680	500	1000	1000
	Front-back		mm	460	500	580	460	800	900
Overall dimen-sion	Left-right		mm	2000	2400	2500	2000	2700	2825
	Front-back		mm	1300	1400	1500	1300	1700	2060
	Height above ground		mm	2600	3100	2950	2600	3400	3725
Total motor power			kw	4	7.5	7.5	4	7.5	15
Weight			kg	2000	3000	4000	2000	6000	11000
