Specifications
1.hydraulic press punching machine
2.Casting machine fuselage with stable performances
3.Belt-type brake, easy for adjustment
Details:
1. Hydraulic punching machine is stable and no vibration, safe operation, not easy to cause the accident, power system is provided with overflow protection device, not easy to broken body parts and tools, greatly improves the safety performance of the equipment.
2. Hydraulic punching machine no flywheel and crank, low noise operation, press mute environmental protection, greatly improve the working environment of employees.
3. Hydraulic punching machine Type frame 3 hydraulic press machine using standard punch, die locking handle punching slider universal workable, standard, can make various traditional punching metal stamping die general.
4. Hydraulic punching machine Plus manual button, pedal control, does not change the staff operating habits.
5. Hydraulic punching machine Can be used to move the bed of punching machine.
6. Hydraulic punching machine can Adjustable stroke quickly washed.
7. Hydraulic punching machine Energy-saving emission reduction benefits.
8. Hydraulic punching machine can implement the punching, cutting, shearing angle, rolling, drawing function.
Main parameters
Model | 11587 | 11588 | 11589 | 11590 | 11591 | 11592 | 11593 | 11594 | 11595 | 11596 | 11597 | 11598 | 11599 | 11560 | ||

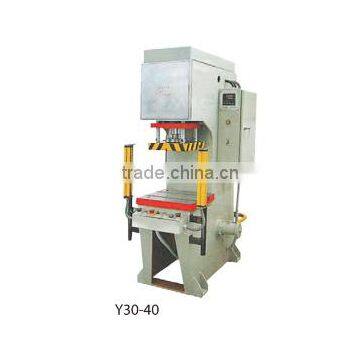

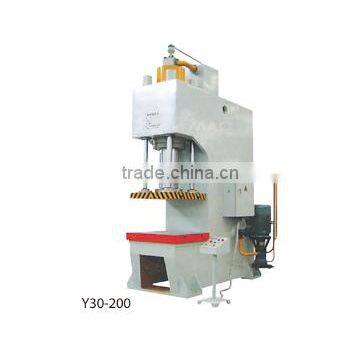

| Description | Y30-6.3 | Y30-10 | Y30-16 | Y30-25 | Y30-40 | Y30-63 | Y30-100 | Y30-160 | Y30-200 | Y30-315 | Y30-400 | Y30-500 | Y30-630 | Y30-800 | ||
| Rated pressure | KN | 63 | 100 | 160 | 250 | 400 | 630 | 100 | 1600 | 2000 | 3150 | 4000 | 5000 | 6300 | 8000 | |
| Maximm pressure of liquid | Mpa | 8 | 12.5 | 20 | 16 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Stroke of side | mm | 250 | 250 | 400 | 400 | 400 | 500 | 600 | 700 | 700 | 800 | 800 | 900 | 900 | 900 | |
| Daylight | mm | 400 | 400 | 500 | 630 | 630 | 750 | 800 | 900 | 1000 | 1100 | 1250 | 1300 | 1500 | 1500 | |
| Throat depth | mm | 200 | 200 | 250 | 350 | 350 | 320 | 400 | 420 | 450 | 800 | 1500 | 1500 | 1500 | 1500 | |
| Speed of slide | Descent | mm/s | / | / | / | 80 | 80 | 120 | 100 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| Pressing | mm/s | 18-20 | 20-22 | 18-20 | 18-20 | 18-20 | 18-20 | 15-20 | 10-12 | 10-15 | 8-10 | 8-10 | 10-15 | 6-10 | 5-8 | |
| Return | mm/s | 55 | 50 | 50 | 75 | 75 | 100 | 100 | 70 | 70 | 60 | 55 | 70 | 60 | 45 | |
| Size of table | L-R | mm | 440 | 440 | 500 | 580 | 700 | 710 | 800 | 900 | 900 | 1500 | 2000 | 2500 | 2500 | 3000 |
| F-B | mm | 380 | 380 | 450 | 570 | 570 | 600 | 700 | 800 | 900 | 1500 | 1800 | 2000 | 2000 | 2400 | |
| Table height above floor | mm | 700 | 700 | 710 | 710 | 710 | 810 | 800 | 900 | 900 | 400 | 400 | 400 | 400 | 400 | |
| Motor power | mm | 3 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | 22 | 2×22 | 2×22 | 2×22 | 2×22 | |
