china drilling machine UDM80
Specifications
Drilling, milling and tapping
Head swivels 360 degree horizontally
Headstock and Worktable up & down perpendicularly
Super high column
Precision micro feed
Positive spindel lock
Distinct auto device for releasing tools, operate easily
Geared drive, lower noise
Product Descriptio

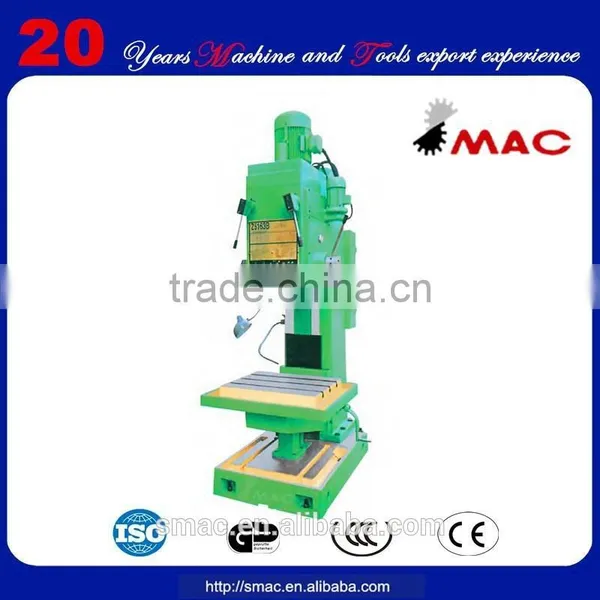

Square-column vertlcal drilling machine is a universal general-purpose machine.It's used for counter-sinking,spotfacing drilling,tapping,boring,reaming,etc.Themachlne nas catch the flnction of tap-automatically reversing device which is sulfablefor tappng ofblind and determined holes.The machine has high effciency,high accuracy,low noise,wide range of variable speed,centralized contols goodlooking appearance,easy maintenance and operation
china drilling machine UDM80
| SpecificationModel | Unit | 15001 | 15002 | 15003 | 15004 | 15005 | 15006 |
| UDM25 | UDM32 | UDM40 | UDM50 | UDM63 | UDM80 | ||
| Max. drilling diameter (<=50kg/mm2) | mm | 25 | 32 | 40 | 50 | 63 | 80 |
| Max. feeding resistance | N | 9000 | 10000 | 16000 | 16000 | 30000 | 30000 |
| Max. torque of main shaft | N.m | 160 | 250 | 350 | 350 | 800 | 800 |
| Max. motor | kw | 2.2 | 2.2 (3) | 3 | 3 | 5.5 | 5.5 |
| Morse taper of main spindle | Morse | No.3 | No.4 | No.4 | No.5 | No.5 | No.6 |
| Distance from the shaft center to guide surface | mm | 280 | 280 | 335 | 335 | 375 | 375 |
| Travel of main shaft box | mm | 210 | 210 | 200 | 200 | 250 | 200 |
| Strokes of main spindle | mm | 200 | 200 | 250 | 250 | 250 | 250 |
| Steps of main spindle | mm | 9 | 12 | 12 | 12 | 9 | 9 |
| Spindle speed | rev/mm | 50-2000 | 45-2000 | 31.5-1400 | 31.5-1400 | 40-570 | 40-570 |
| Spindle feeding | mm/rev | 0.065-1.8 | 0.056-1.5 | 0.056-1.8 | 0.056-1.8 | 0.1-0.78 | 0.1-0.78 |
| Distance between end of shaft to bench table | mm | <710 | <710 | <750 | <750 | <800(1250) | <800(1250) |
| Stroke of table | mm | 300 | 300 | 300 | 300 | 300 | 300 |
| Table size | mm | 400 x 550 | 400 x 550 | 480 x 560 | 480 x 560 | 550 x 650 | 550 x 650 |
| Coolant pump | kw | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 |
| Capacity of coolant pump | L/min | 25 | 25 | 25 | 25 | 25 | 25 |
| Overall size | mm | 110 x 80 x 233 | 110 x 80 x 233 | 120 x 80 x 255 | 110 x 90 x 255 | 140 x 96 x 280 | 140 x 96 x 280 |
| Net weight | kg | 960 | 1000 | 1200 | 1250 | 2500 | 2500 |
