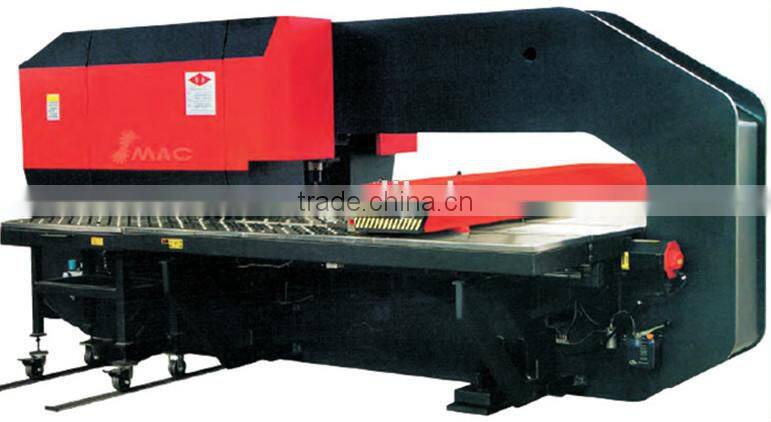

amada mechanic Punching machine

Name: amada mechanic Punching machine
Brand: SMAC
Availability: InStock

FOB Price

US$ 50,000 - 80,000 / Set

1 Set(Min. Order)

Port shanghai port
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	CNC
Power Source	Pneumatic	Place of Origin	Jiangsu, China
Brand Name	SMAC	Model Number	HPM-300
Voltage	380V	Weight	13T
Dimension(LWH)	500X2680X2175MM	Certification	ISO
Warranty	14 month after BL	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

amada mechanic Punching machine

The high precision large traverse ballscrews and linear guideways with reliability are equipped for driving
The reliable national level CNC systems is fitted with the machine.
To make the machine more reliable, the import cluch is used.
The main pneumatic parts are imported name ones to make the mechanism more reliable.
The fully bushed high precision turret improves efficiently the accuracy and longevity of the turret, and the 24 or 32 stations is optional.
The advanced working and heat treatment technology is adopted to the tools for the longevity of the tools.

Tooling layout

Stations number	Tooling diameter rang		Tooling number
24 stations	Φ88.9-Φ32	Φ7/2-Φ5/4	4
32 stations	Φ32-	Φ5/4	20
32 stations	Φ88.9-Φ32	Φ7/2-Φ5/4	4
	Φ32-	Φ5/4	28

Specification	Unit		HP-M300
punch force	KN	KN	300	300
Max. sheet working size	mm	in	1250 x 2500	50 x 100
Max. sheet working welth	kg	lb	150	330
max. sheet thickness	mm	in	6.35	0.254
Max. Punch diameter	mm	in	Φ88.9	Φ3.56
Number of tool stations			24, 32	24, 32
Positionzing repetability	mm	in	0.1	0.004
Max. hit speed	hpm	hpm	300	300
Pax. traversing speed	m/min	in/min	56	2240
Turret rotation	rpm	rpm	30	30
Axis number			3	3
Compressed air pressure	mpa	mpa	0.6	0.6
Shipping dimensions	mm	in	500 x2680 x2175	20x107.2 x87
Machine weight	ton	lb	13	28600

Packaging & Shipping

The machines are packed with wooden case or depend on your requires.

Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign

Our Services

1.OEM

2.Spare parts

3.Warranty for one year

4.Tech support is available for 24 hours

5.Fast delivery

Company Information

Found in 1984 Our SMAC/Jmech Machine Tool Co., Ltd as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. specializes in import& export of brand-new industrial machinery & tools. Our mechanical products cover more than 80 kinds including lathe, milling machine, grinding machine, power press, hydraulic guillotine, hydraulicpress brake, CNC & automotive machines and so on, which have been exported to 50 or more countries & areas.SMAC/Jmech Machine Tool Co., Ltd is proud to be the professional, high reputation company with high-qualified & professional staff, competitive prices and quick & thoughtful after-sale service to cooperate with you.

OFFICE VIEW

CERTIFICATION:

customer visiting:

Our products are exported to more than 50 countries, more than 700 customers
