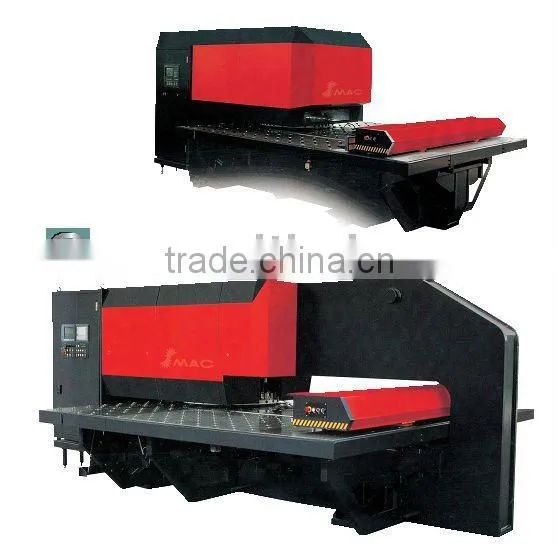

widely used CNC Turret Punching machine
The high precision large traverse ballscrews and linear guideways with reliability are equipped for driving
The reliable national level CNC systems is fitted with the machine.
To make the machine more reliable, the import cluch is used.
The main pneumatic parts are imported name ones to make the mechanism more reliable.
The fully bushed high precision turret improves efficiently the accuracy and longevity of the turret, and the 24 or 32 stations is optional.
The advanced working and heat treatment technology is adopted to the tools for the longevity of the tools.
Stations number | Tooling diameter rang | Tooling number | |
24 stations | Φ88.9-Φ32 | Φ7/2-Φ5/4 | 4 |
32 stations | Φ32- | Φ5/4 | 20 |
Φ88.9-Φ32 | Φ7/2-Φ5/4 | 4 | |
Φ32- | Φ5/4 | 28 | |
Specification | Unit | HP-M300 | ||
punch force | KN | KN | 300 | 300 |
Max. sheet working size | mm | in | 1250 x 2500 | 50 x 100 |
Max. sheet working welth | kg | lb | 150 | 330 |
max. sheet thickness | mm | in | 6.35 | 0.254 |
Max. Punch diameter | mm | in | Φ88.9 | Φ3.56 |
Number of tool stations | 24, 32 | 24, 32 | ||
Positionzing repetability | mm | in | 0.1 | 0.004 |
Max. hit speed | hpm | hpm | 300 | 300 |
Pax. traversing speed | m/min | in/min | 56 | 2240 |
Turret rotation | rpm | rpm | 30 | 30 |
Axis number | 3 | 3 | ||
Compressed air pressure | mpa | mpa | 0.6 | 0.6 |
Shipping dimensions | mm | in | 500 x2680 x2175 | 20x107.2 x87 |
Machine weight | ton | lb | 13 | 28600 |
The machines are packed with wooden case or depend on your requires.
Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign
1.OEM
2.Spare parts
3.Warranty for one year
4.Tech support is available for 24 hours
5.Fast delivery
Found in 1984 Our SMAC/Jmech Machine Tool Co., Ltd as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. specializes in import& export of brand-new industrial machinery & tools. Our mechanical products cover more than 80 kinds including lathe, milling machine, grinding machine, power press, hydraulic guillotine, hydraulicpress brake, CNC & automotive machines and so on, which have been exported to 50 or more countries & areas.SMAC/Jmech Machine Tool Co., Ltd is proud to be the professional, high reputation company with high-qualified & professional staff, competitive prices and quick & thoughtful after-sale service to cooperate with you.
OFFICE VIEW
CERTIFICATION:
customer visiting:
Our products are exported to more than 50 countries, more than 700 customers
1. Accept L/C, T/T ,D/A,D/Ptype of payments
2. Regarding to the technical questions, pls contact our R&D
3. Any question, call us or send email, we will try our best to satisfy you
