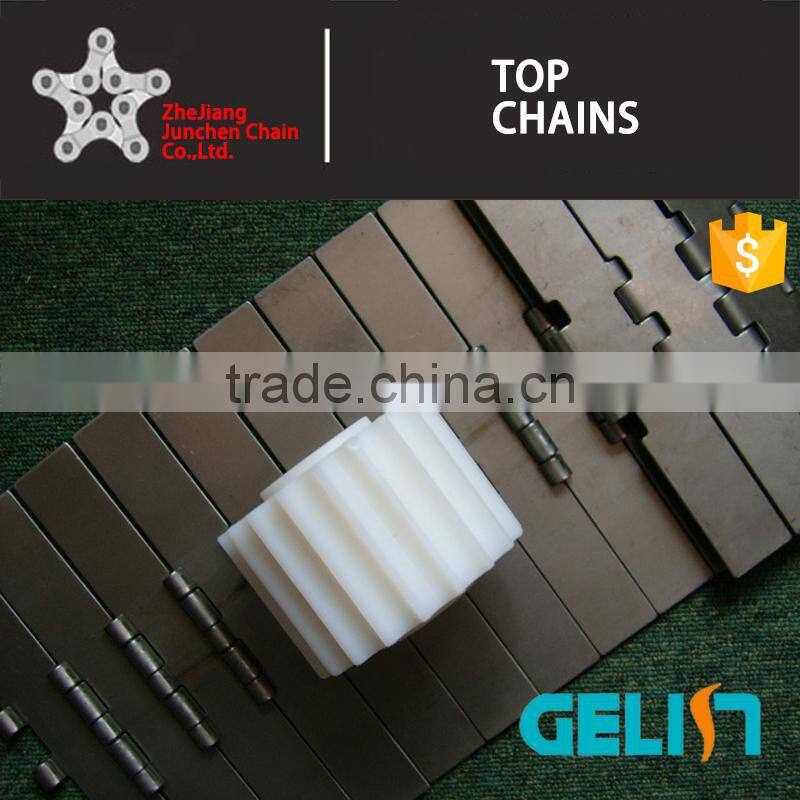

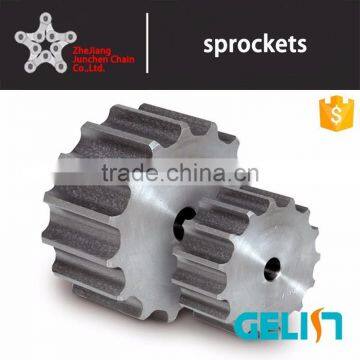

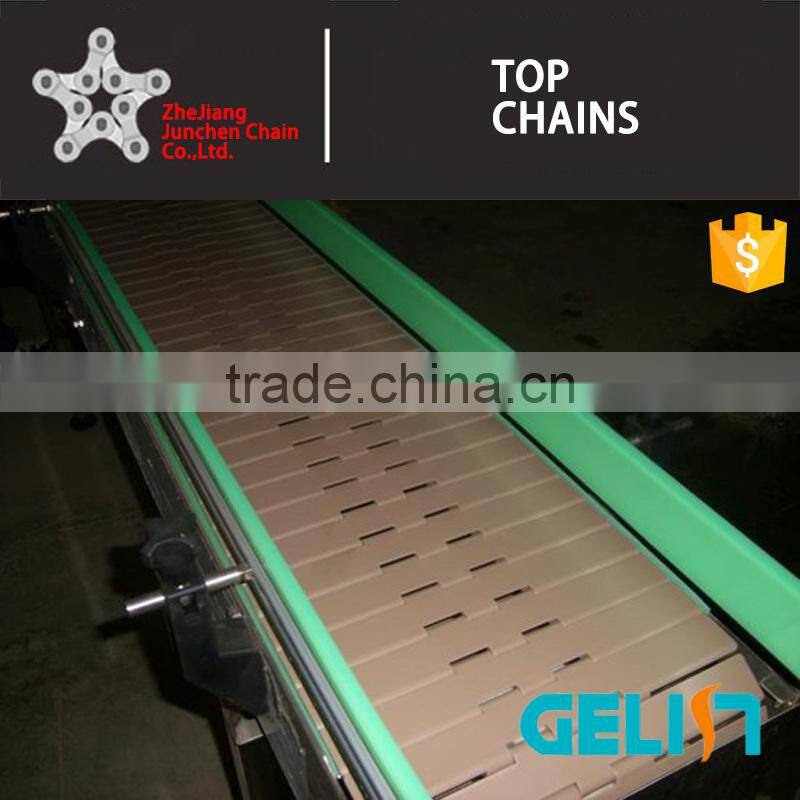

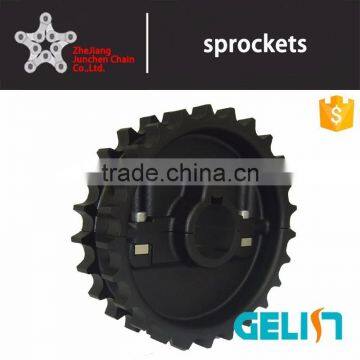

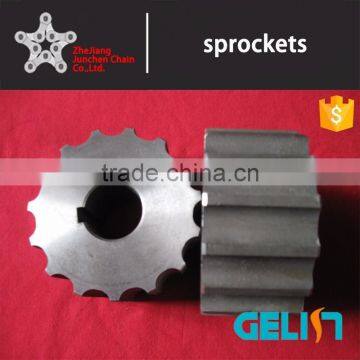

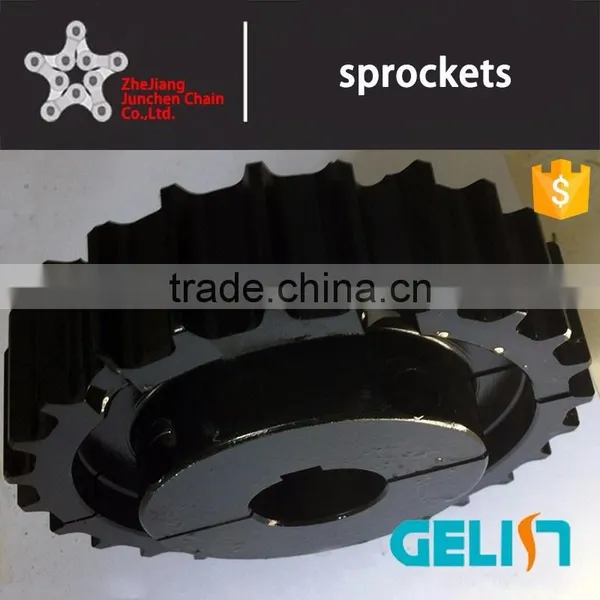

plastic/steel table/falt top conveyor chain sprocket
1. sprocket name: table top chain
2. standard: Chain According to DIN 8153
3. Pitch: P=38.1
4. Roller diameter: Dia=13.13
| No. of teeth | Outside Dia D0 | Bore Dia D1 | Total thickness L |
| 13 | 78.98 | 15 | 43.5 |
| 15 | 93.67 | 15 | 43.5 |
| 17 | 105.47 | 20 | 43.5 |
| 19 | 117.34 | 20 | 43.5 |
| 21 | 129.26 | 20 | 43.5 |
| 23 | 141.22 | 20 | 43.5 |
| 25 | 153.21 | 20 | 43.5 |
| 27 | 165.20 | 20 | 43.5 |
| 29 | 177.24 | 20 | 43.5 |
| 31 | 189.29 | 20 | 43.5 |
NOTE: We can produce as your requirements. So, if you want, please send us your drawings.
| Specification | table top sprockets |
| motorcycle sprocket, chains , sprocket with chain kit, sprocket and chain set, cnc aluminum sprocket for racing motor, industrial sprocket, gears (pinions, wheels gear ) | |
| OEM is welcomed | |
| Material | 1. steel:Q235(1023/A3) steel,45#(1045)steel, stainless steel |
| 2.PP, POM, nylon, PA | |
| 3. OEM to your drawings | |
| Surface treatment | heat treatment |
| zinc plating,chrome plating, nickel plating, dull polish ,etc | |
| anodized | |
| Processing | punch, CNC turning, hobbing, CNC machining center, drilling, broaching |
| Quality Control | Initial inspection, random inspection, final inspection |
| Marking | available |
| Package | plastic bag, box, blister card, skin pack,etc or according to requirements |
| Delivery time | 20 days after receiving the advance payment |
| Certificate | ISO 9001 |
Delivery Details:
1. GELIN table top sprocket supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
Lin'an Gelin Transmission Machinery Factory is a private joint-stock company. Our company lies in the west of Hangzhou, nears the beautiful Hengfan Town, with No.06 Provincial Road running through.
Our products are widely used in concrete, electric power, metallurgy, mine, sea port and other places. In 1996, we introduced advanced technology to produce machines by ourselves and got good praise from customers. Our products have been exported to many countries and regions. Our company puts quality in the first place. We welcome all the customers to come and visit us.
Q: Are you a manufacture or a trading company?
Gelin is a chain factory for 20 years.
Zhejiang Junchen Chain Co.,Ltd is a part of Gelin especial for foreign customer.
Q:Which port do you near about?
Gelin is located in Hangzhou, Zhejiang ,3 hours drive to Ningbo port and Shanghai port.
Q:Does your factory customize basing on the drawing?
Yes, Gelin has a professional technical team for customize.
Q:What should I provides in order to get a accurate price?
We need drawings. If no ,please send me some data or I can provide some for choose.
Q:Can I have samples before place an order?
Yes ,you can .we have cooperation with UPS,TNT,FEX express.
Q:What is your payment,how can we pay you?
You can use TT,L/C at sight ,Paypal and western union.
