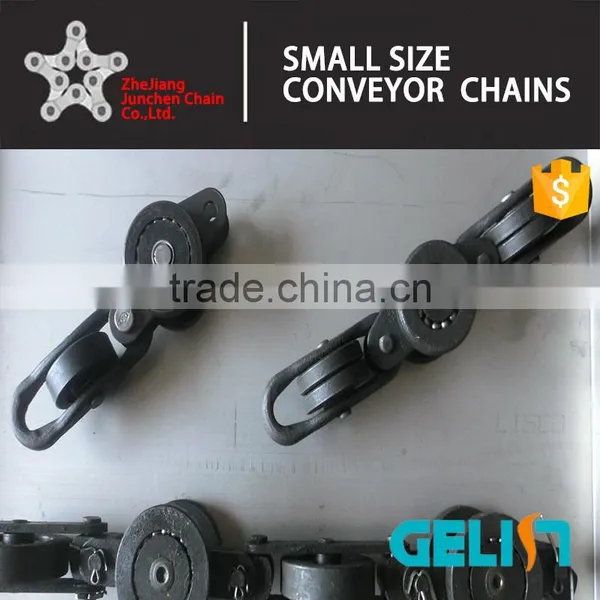

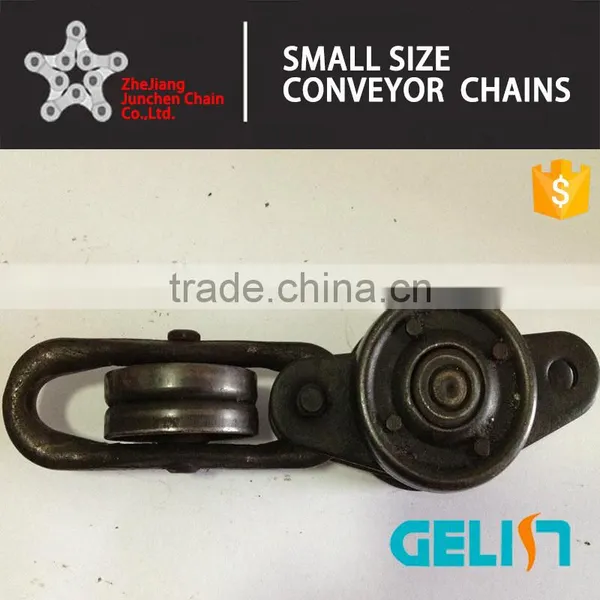

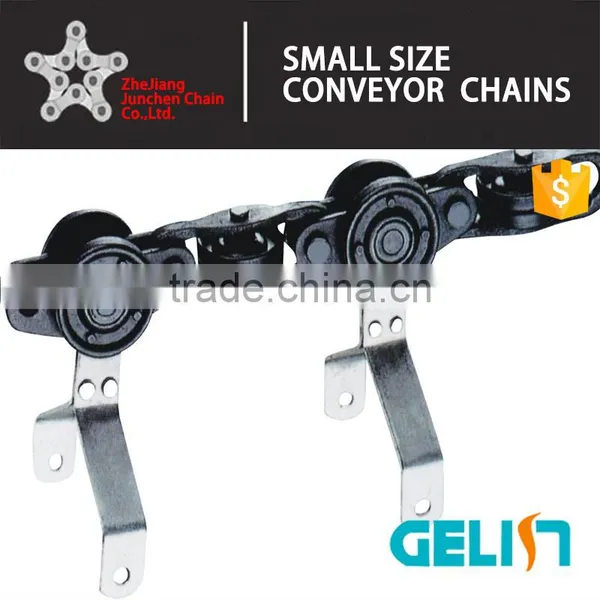

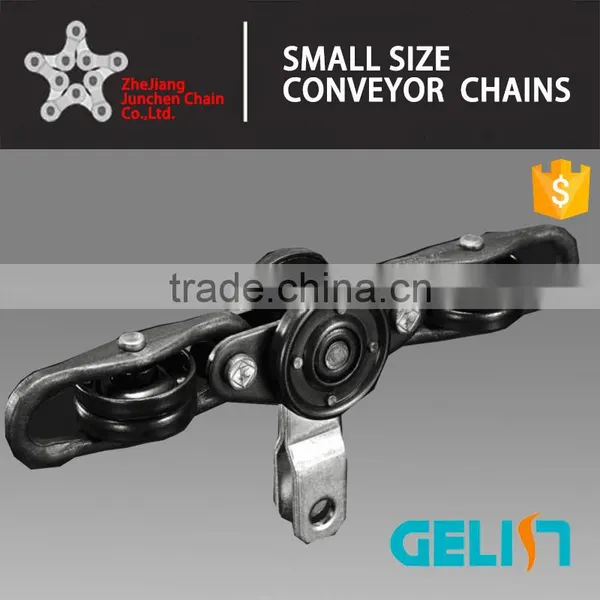

Hanging Conveyor Chain (UH-5075 series) Spray Coating Line Trolley steel driving overhead conveyor chain
ODEL ITEM | UH-5075-S Standard chain | UH-5075-HH Heavy-duty chain
| UH-5075-HV Heavy-duty chain | UH-5075-HA Heavy-duty chain |
Suspension Spacing (mm) | 150+(150× N) | 150+(150 × N) | 150+(150 × N) | 150+(150 × N) |
Chain's Weight (kg/m) | 4.2 | 4.58 | 4.83 | 5.3 |
Single-span Weight (≤kg) | 35 | 40 | 45 | 50 |
Chain's Allowed Pull Force (≤kgf) | 3000 | 3000 | 3000 | 3000 |
Chain's Catastrophic Pull Force (≥kgf) | 5500 | 5500 | 5500 | 5500 |
Working temperature (≤°C) | 250 | 300 | 300 | 400 |
Applicable Equipment | General conditions | Large bending; High temperature; | High temperature; Heavy work piece; Frequently lifted; | High temperature; Heavy work piece; Complicated route; |
Material | 16# Medium-carbon steel, Steel A3 | |||
Remark: The above technical data is for our usual over head conveyor chain: UH-5S, UH-5HH, VH-5HA type. We can customize design and manufacture the products based customers particular requirements | ||||
packaging details : a conveyor chain with extended pin + a poly bag + individual box + a wooden case
Delivery Details:
1. GELIN chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
Lin'an Gelin Transmission Machinery Factory is a private joint-stock company. Our company lies in the west of Hangzhou, nears the beautiful Hengfan Town, with No.06 Provincial Road running through.
Our products are widely used in concrete, electric power, metallurgy, mine, sea port and other places. In 1996, we introduced advanced technology to produce machines by ourselves and got good praise from customers. Our products have been exported to many countries and regions. Our company puts quality in the first place. We welcome all the customers to come and visit us.
Q: Are you a manufacture or a trading company?
Gelin is a chain factory for 20 years.
Zhejiang Junchen Chain Co.,Ltd is a part of Gelin especial for foreign customer.
Q:Which port do you near about?
Gelin is located in Hangzhou, Zhejiang ,3 hours drive to Ningbo port and Shanghai port.
Q:Does your factory customize basing on the drawing?
Yes, Gelin has a professional technical team for customize.
Q:What should I provides in order to get a accurate price?
We need drawings. If no ,please send me some data or I can provide some for choose.
Q:Can I have samples before place an order?
Yes ,you can .we have cooperation with UPS,TNT,FEX express.
Q:What is your payment,how can we pay you?
You can use TT,L/C at sight ,Paypal and western union.
