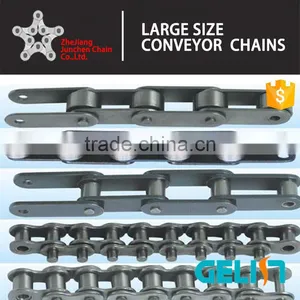

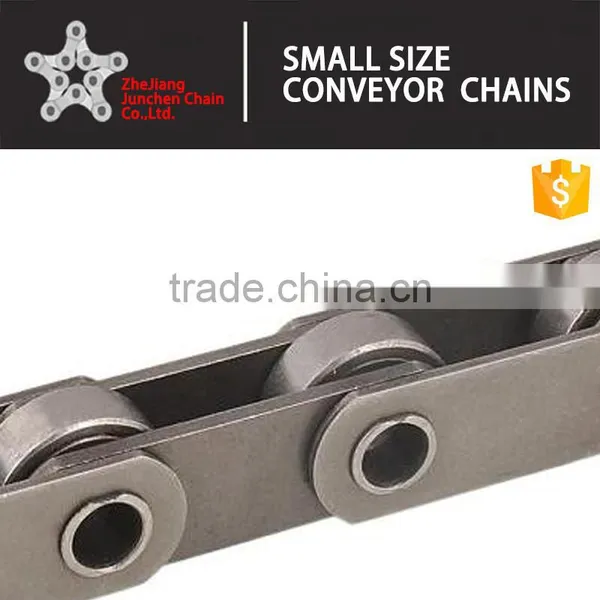

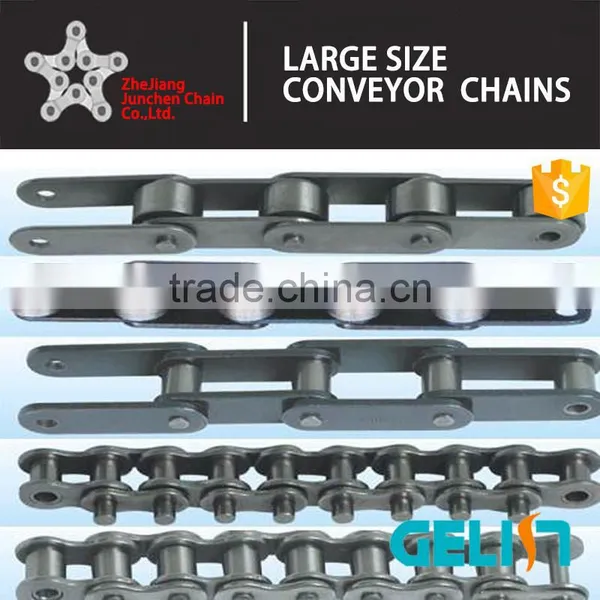

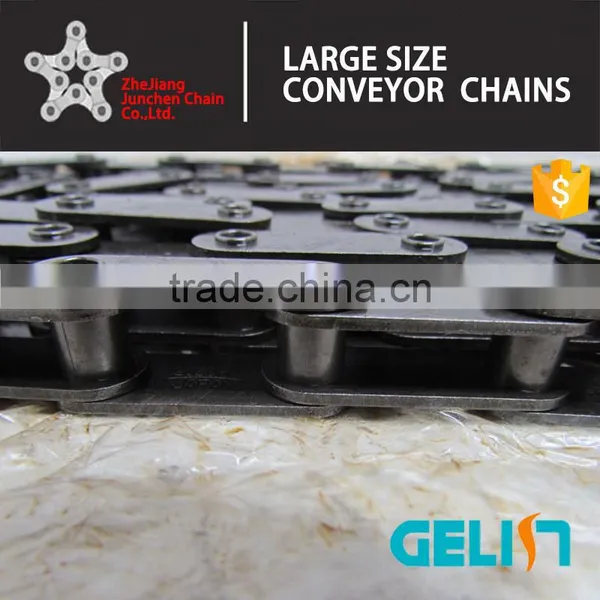

Hollow Pin Type Palm Oil Conveyor Chains
Palm oil mill chain is one kind of conveyor chains.It is the conveyor equipment which can convey the palm fruit to squeeze equipment to produce palm oil.The palm oil is main original from Malaysia and Indonesia,So the palm oil mill chain is mainly exported to these two countries. Along with increasing for the palm oil consumption,the exported quantity of palm oil mill chain is also increased rapidly. Palm oil mill chain has many types.The main type is straight plate solid pin palm oil mill chain and hollow pin palm oil mill chain.It is usually assembled with extended pin and nut.The follow sheet is Gelin brand palm oil mill chain technical data of main specification.
|
GELIN NO. |
Pitch | Width between inner plates | Roller diameter | Hollow Pin | Plate | Ultimate tensile strength |
Rated working load |
Weight per meter | |||||
| P | b1 | D(max) | d1(min) | d2 | L1 | L2 | Type | h | t/T | Q(min) | q | ||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | KN | kg/m | |
| 4×15000HP | 101.6 | 18.9 | 47.63 | 13.1 | 19.5 | 24.2 | 24.8 | A | 40 | 5/6 | 66.7 | 4.3 | 6.92 |
| 4×26000HP | 101.6 | 19.05 | 47.63 | 13.2 | 19.5 | 24.3 | 25.3 | B | 39.4 | 5.1/6.3 | 115.6 | 7.4 | 6.90 |
| 6×36000HP | 152.4 | 25.4 | 66.7 | 20.7 | 26.9 | 28.8 | 29.4 | B | 50.8 | 5.1/7.1 | 200 | 13 | 10.02 |
| 6×36000-N1 | 152.4 | 25.4 | 66.7 | 20.7 | 26.9 | 29.3 | 31.4 | B | 50.8 | 7.1/7.1 | 200 | 13 | 10.75 |
| 6×36000HHP | 152.4 | 25.4 | 66.7 | 20.7 | 26.9 | 30.8 | 31.6 | B | 50.8 | 6.4/7.8 | 200 | 13.9 | 10.86 |
| 8×45000HP | 203.2 | 38.1 | 88.9 | 22.85 | 30 | 40 | 44.2 | A | 61 | 8 | 280 | 19.3 | 17.27 |
packaging details : a palm oil chain + a poly bag + individual box + a wooden case
Delivery Details:
1. GELIN chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
Lin'an Gelin Transmission Machinery Factory is a private joint-stock company. Our company lies in the west of Hangzhou, nears the beautiful Hengfan Town, with No.06 Provincial Road running through.
Our products are widely used in concrete, electric power, metallurgy, mine, sea port and other places. In 1996, we introduced advanced technology to produce machines by ourselves and got good praise from customers. Our products have been exported to many countries and regions. Our company puts quality in the first place. We welcome all the customers to come and visit us.
Q: Are you a manufacture or a trading company?
Gelin is a chain factory for 20 years.
Zhejiang Junchen Chain Co.,Ltd is a part of Gelin especial for foreign customer.
Q:Which port do you near about?
Gelin is located in Hangzhou, Zhejiang ,3 hours drive to Ningbo port and Shanghai port.
Q:Does your factory customize basing on the drawing?
Yes, Gelin has a professional technical team for customize.
Q:What should I provides in order to get a accurate price?
We need drawings. If no ,please send me some data or I can provide some for choose.
Q:Can I have samples before place an order?
Yes ,you can .we have cooperation with UPS,TNT,FEX express.
Q:What is your payment,how can we pay you?
You can use TT,L/C at sight ,Paypal and western union.
