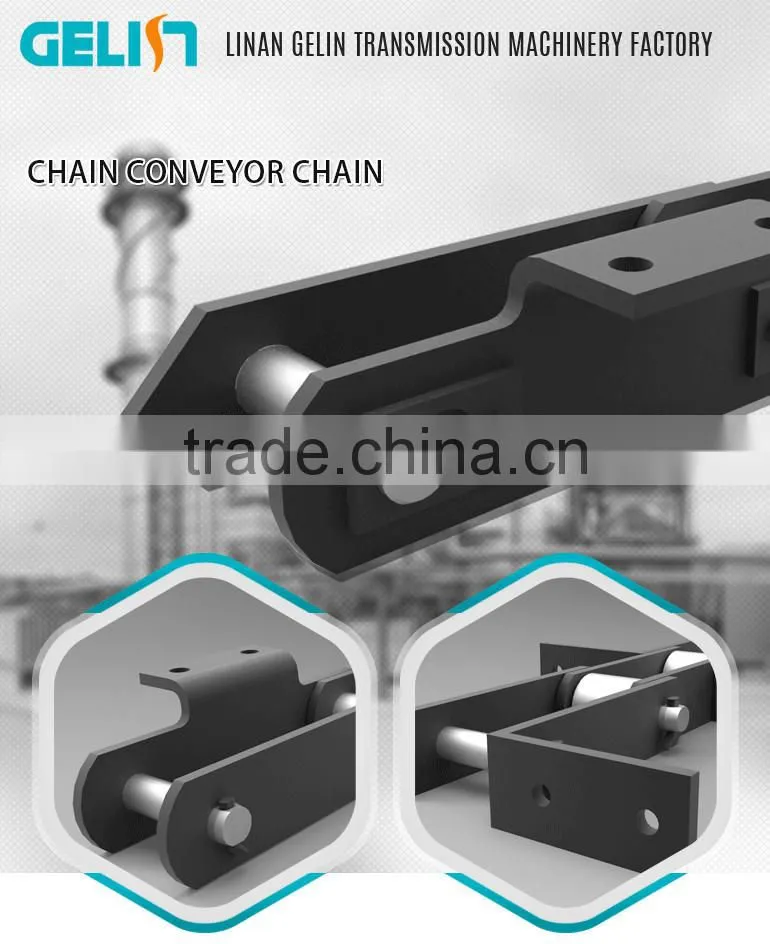

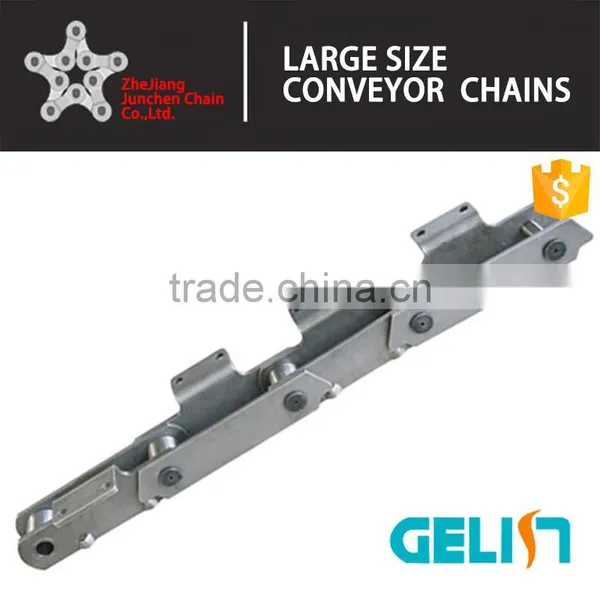

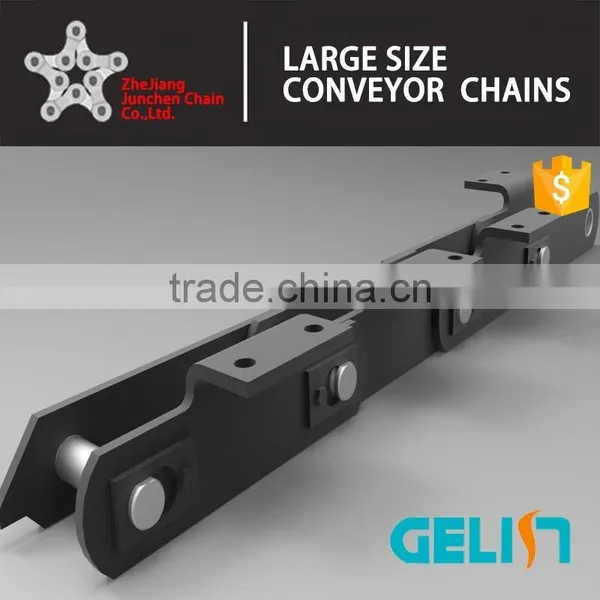

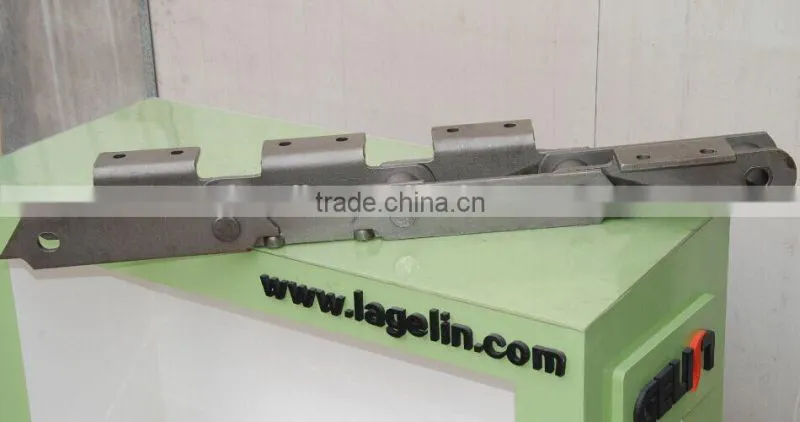

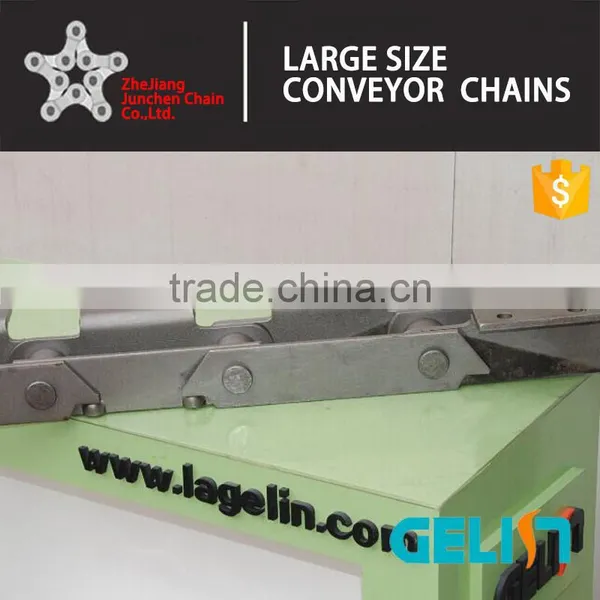

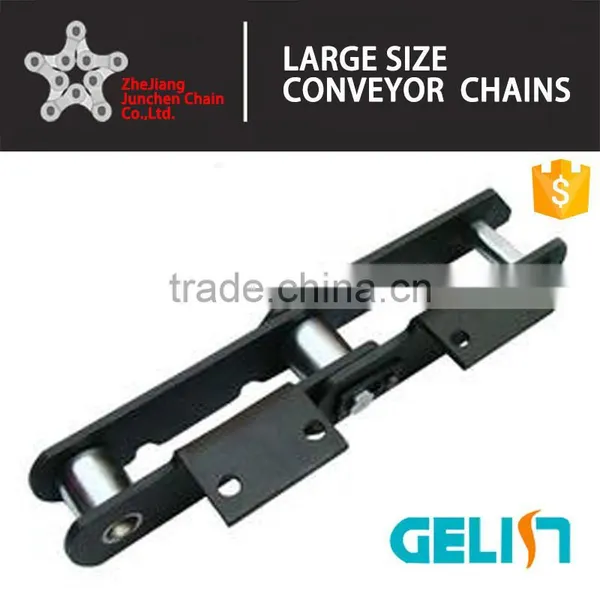

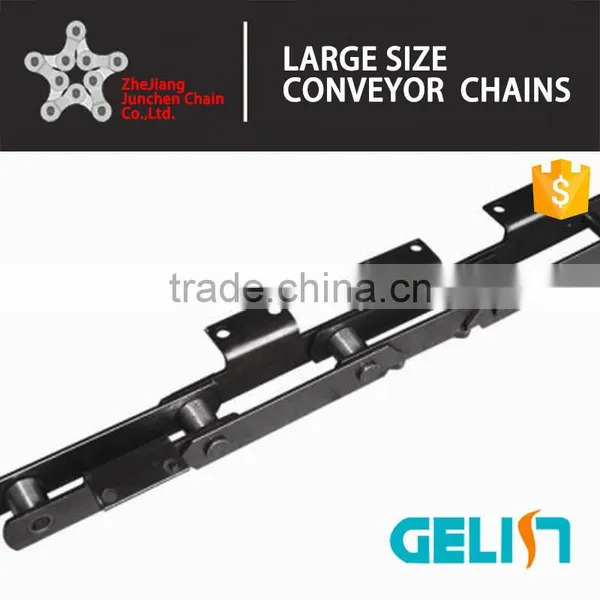

industry cement Pan Conveyor Chain for bucket elevator

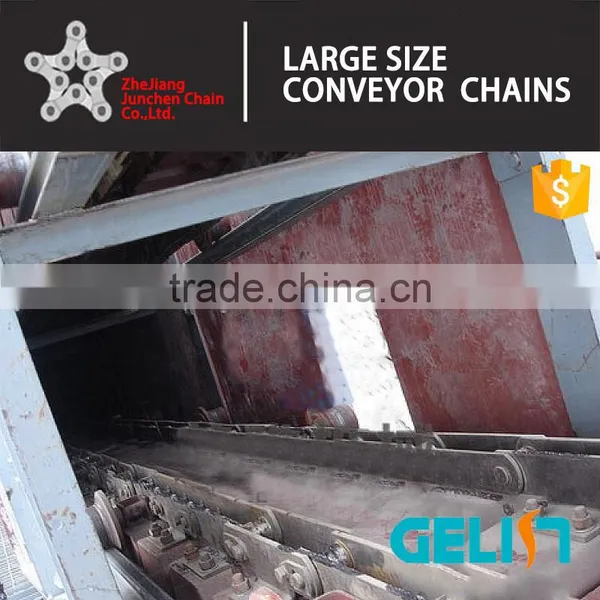

We are the reckoned manufacturer and trader of superior quality Pan Conveyor Chain. The offered chain is manufactured using quality approved material and advanced technology. This chain is widely applicable for heavy duty services and handling hot clinker in various cement industries. It is efficient enough to cope-up with shock load because it is arranged with locking system which avoid overlapping due to long pitch. Apart from this, the offered chain is fitted with out-board rollers for high strength.
Features:
Sturdiness
Robust construction
Heat resistance

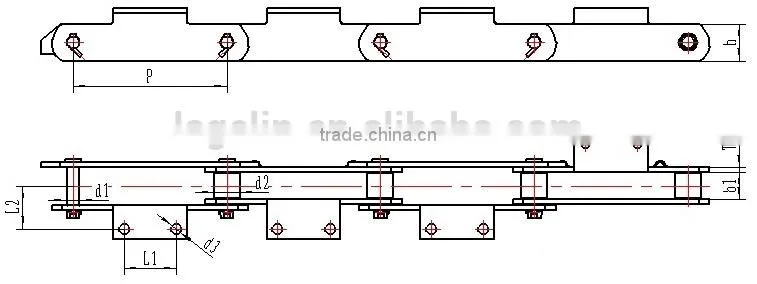

| Chain NO. |
Pitch P |
Roller diameter d1 |
Width between inner plates b1 |
Pin diameter d2 |
installation dimension L1×L2 |
hole diameter d3 |
Tensile load Q |
|
| S type | F type | |||||||
| mm | KN | |||||||
| M160-250 | 250 | 36 | 70 | 40 | 18 | 124×85 | 18.5 | 160 |
| M224-250 | 250 | 42 | 85 | 44 | 21 | 140×85 | 18.5 | 224 |
| M315-250 | 250 | 50 | 100 | 54 | 25 | 160×85 | 18.5 | 315 |
| M450-250 | 250 | 60 | 120 | 62 | 30 | 180×85 | 18.5 | 450 |
| M630-250 | 250 | 70 | 140 | 68 | 36 | 230×85 | 24 | 630 |
| M315-315 | 315 | 50 | 54 | 25 | 160×85 | 18.5 | 315 | |
| M450-315 | 315 | 60 | 140 | 62 | 30 | 240×105 | 18.5 | 450 |
| M630-315 | 315 | 70 | 68 | 36 | 230×85 | 24 | 630 | |
packaging details : a conveyer chain + a poly bag + individual box + a wooden case
Delivery Details:
1. GELIN chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
Lin'an Gelin Transmission Machinery Factory is a private joint-stock company. Our company lies in the west of Hangzhou, nears the beautiful Hengfan Town, with No.06 Provincial Road running through.
Our products are widely used in concrete, electric power, metallurgy, mine, sea port and other places. In 1996, we introduced advanced technology to produce machines by ourselves and got good praise from customers. Our products have been exported to many countries and regions. Our company puts quality in the first place. We welcome all the customers to come and visit us.
Q: Are you a manufacture or a trading company?
Gelin is a chain factory for 20 years.
Zhejiang Junchen Chain Co.,Ltd is a part of Gelin especial for foreign customer.
Q:Which port do you near about?
Gelin is located in Hangzhou, Zhejiang ,3 hours drive to Ningbo port and Shanghai port.
Q:Does your factory customize basing on the drawing?
Yes, Gelin has a professional technical team for customize.
Q:What should I provides in order to get a accurate price?
We need drawings. If no ,please send me some data or I can provide some for choose.
Q:Can I have samples before place an order?
Yes ,you can .we have cooperation with UPS,TNT,FEX express.
Q:What is your payment,how can we pay you?
You can use TT,L/C at sight ,Paypal and western union.
