IN-LINE Electromagnetic Pneumatic Solenoid Pulse Valve

IN-LINE Electromagnetic Pneumatic Solenoid Pulse Valve thumbnail-1
IN-LINE Electromagnetic Pneumatic Solenoid Pulse Valve thumbnail-2
IN-LINE Electromagnetic Pneumatic Solenoid Pulse Valve thumbnail-3
IN-LINE Electromagnetic Pneumatic Solenoid Pulse Valve thumbnail-4
IN-LINE Electromagnetic Pneumatic Solenoid Pulse Valve thumbnail-5
IN-LINE Electromagnetic Pneumatic Solenoid Pulse Valve photo-1

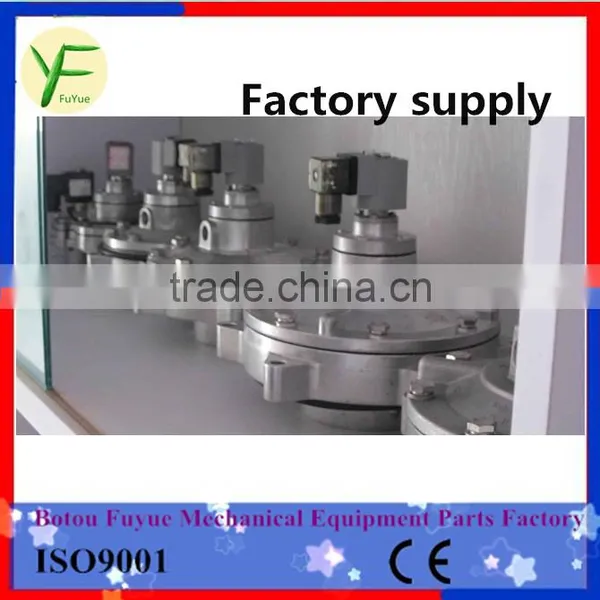

IN-LINE Electromagnetic Pneumatic Solenoid Pulse Valve photo-2
IN-LINE Electromagnetic Pneumatic Solenoid Pulse Valve photo-3

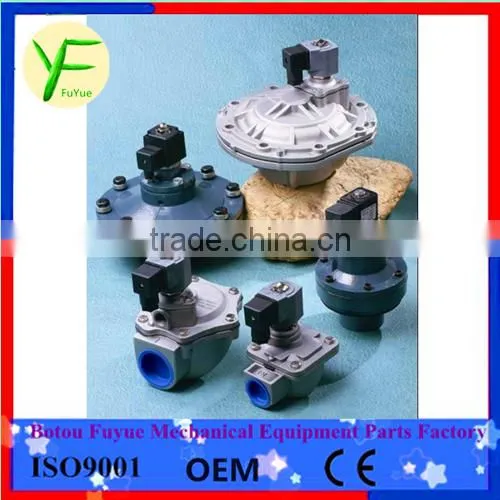

IN-LINE Electromagnetic Pneumatic Solenoid Pulse Valve photo-4

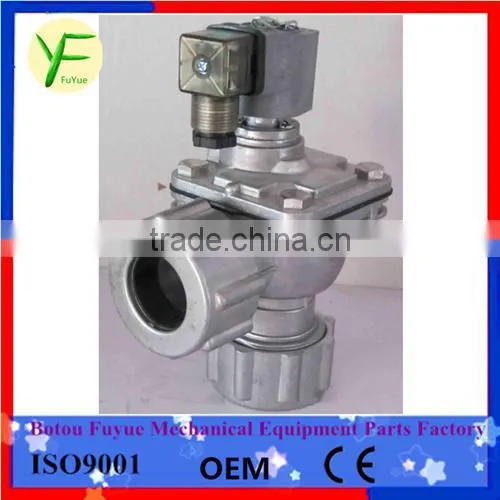

IN-LINE Electromagnetic Pneumatic Solenoid Pulse Valve photo-5
US$ 10 - 70 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Diaphragm
Pressure:
Other, 0.3-0.6MPa
Contact Supplier Request Quote Chat Now
Botou Fuyue Mechanical Equipment Parts Sales Center
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Diaphragm
Pressure Other, 0.3-0.6MPa
Power Pneumatic
Material Casting
Temperature of Media High Temperature
Media Gas
Port Size 3/4", 1", 1.5", 2", 2 1/2", 3"
Place of Origin Hebei, China
Model Number DMF-Z
Brand Name FUYUE
Application Other, Dust filter

Introduction



Electromagnetic pulse valve refers to the gas through the valve in instantaneous once a electrical signal received. Just like pulse phenomena, it has the change of the short fluctuation. Therefore it is calls the pulse valve. The Industry standard definition of electromagnetic pulse valve for electromagnetic pilot valve and pulse valve together, diaphragm valve controlled by electrical signals.



Working  principle

Electrical pulse controller send input signals so that the electromagnetic armature attracts the moving bar. Unclose the balancing hole to release the pressure gas in the back cavity of diaphragm quickly; the pressure gas in the front cavity holds up the diaphragm to open the passage and the valve starts cleaning.



The pulse signal disappears and the spring of the armature works immediately to resume the moving bar so as to close the balancing hole. The pressure gas in the back cavity of the diaphragm and the spring work together to close the passage the valve stops cleaning.


The damping hole in the diaphragm functions to damp the airflow when the moving bar of armature holds up for balancing and to transit the air to the back cavity as soon as the balancing hole is shut to close the passage and stop cleaning.



The submerged pulse valve installment and structure



The installment introduction:

1. First, Confirm the pulse valve in good condition and then installed



2. Pulse valve will be installed directly the outer wall of flange of gas manifold. The spray pipe across the gas manifold. According to the drawing and manual, the pulse valve matching appropriate spray pipe and installation. To avoid the valve install in the air manifold bottom. If the pulse valve matched trachea and connector, the connector will be used for sealing purpose only. It can not as structural support components. It can not rely on the straight connector fixed spray torch and package. The spray pipe and air manifold must be fixed independent.



3. To tighten the hard nut, the maximum torque of 20 N*m.Tighten the trachea, torsion of 20 N*m.



4. The connection control wire needs connect of every electric control valve seat. Pay attention to the line adown to prevent rain waterproof. Or through the joint and nylon pipe, it will connect the pulse valve and electromagnetic assembly boxes of nylon pipe connection.



5. To ensure that provide compressed air clean and dry. The air manifold system provides moderate pressure and check for leaks installation. ( it can brush on soap and water, check whether the interface is bubble). Pressure was carried out on the air bag inflated (pressure of the valve is around 0.03 ~ 0. 86 mpa), recommend for air pressure 0.8 mpa maximum



6. Testing the pulse valve blowing, listening all the pilot valve whether it is normal operation and whether the pulse blowing sound is clear.

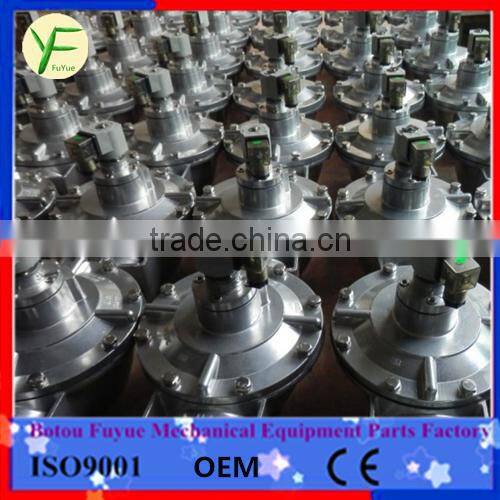

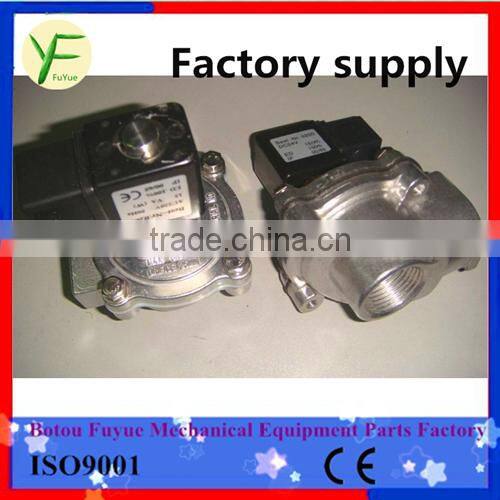

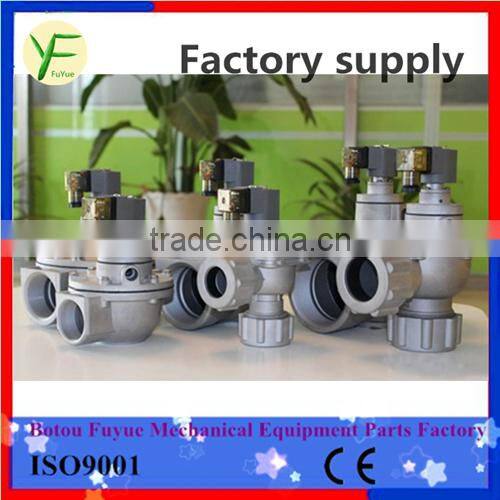

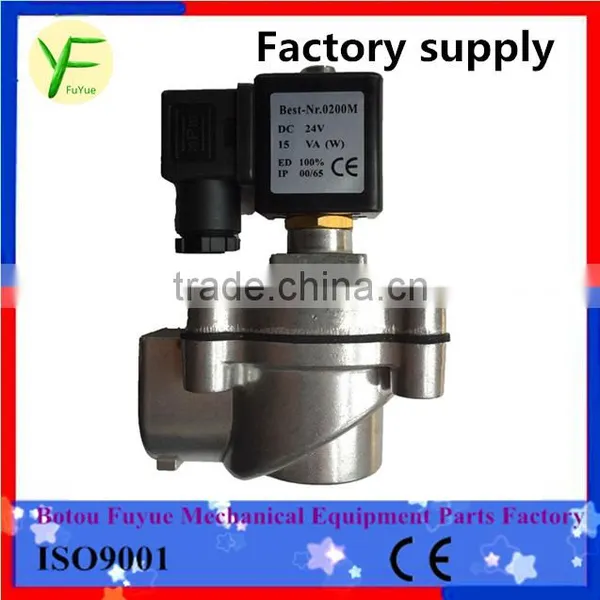

 IN-LINE Electromagnetic pneumatic solenoid pulse valveIN-LINE Electromagnetic pneumatic solenoid pulse valveIN-LINE Electromagnetic pneumatic solenoid pulse valve
