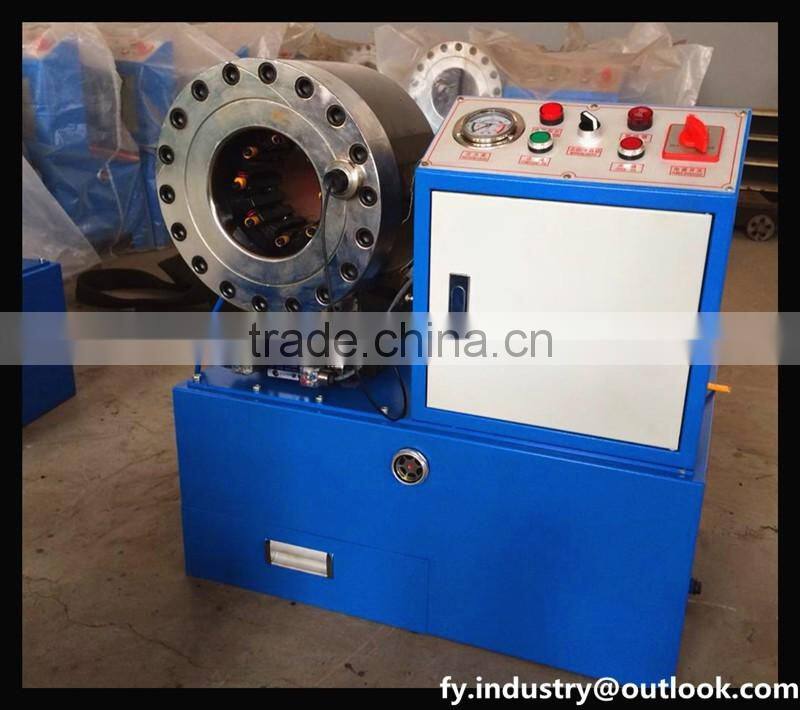

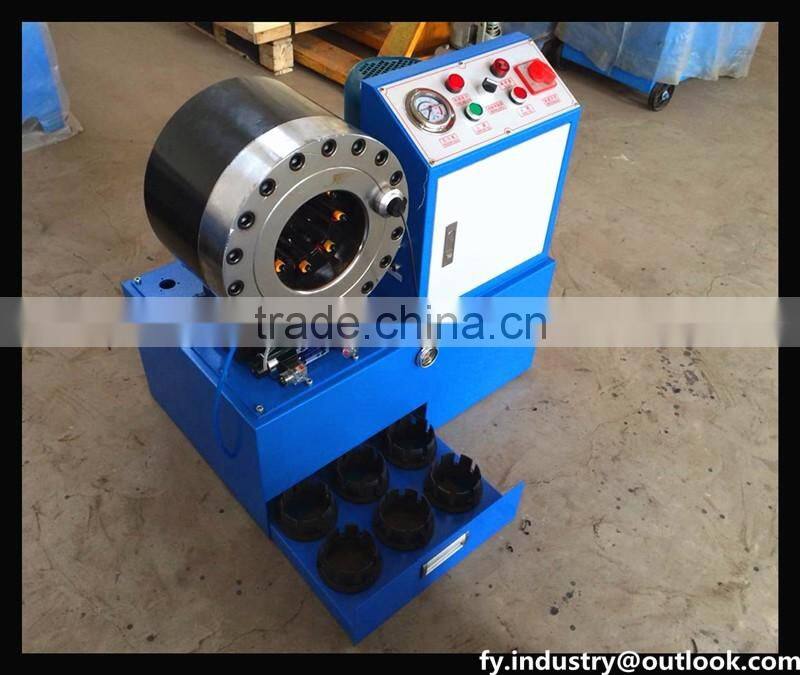

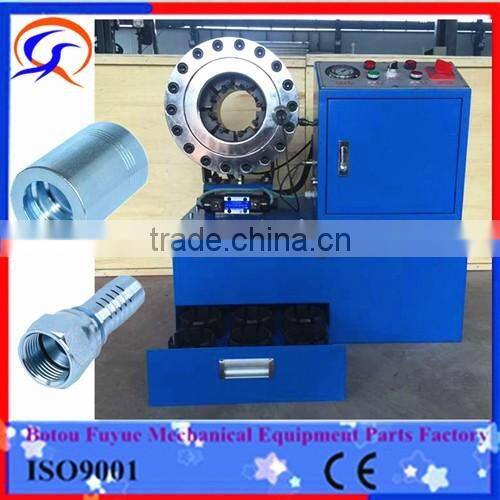

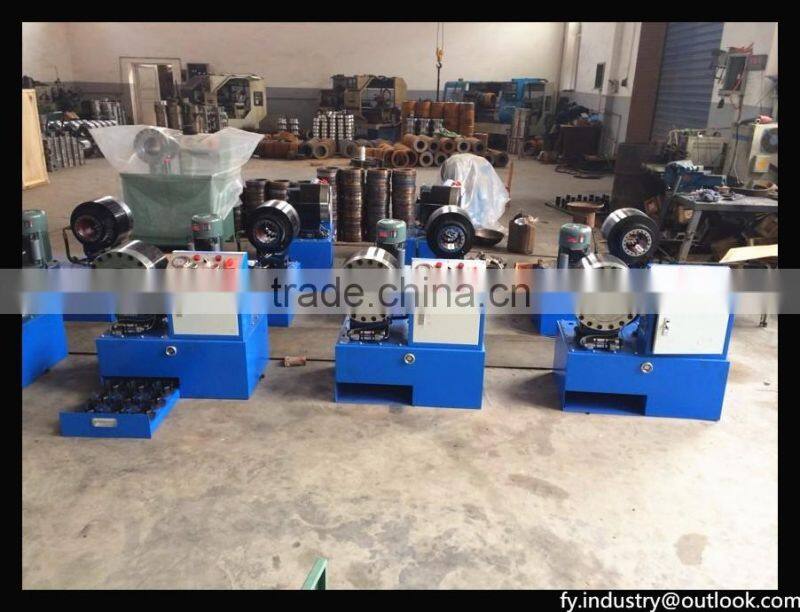

FY69 connector fitting hose crimper price hydraulic hose crimping machine
1 Rich business experience with good honor (5 years minimum).
2 Rich experience in fire fight filed (5 years minimum).
3 Professional marketing team (staffs numbers based on market area).
4 Professional machine engineer for after sales service (2 engineers minimum).
5 Markets:Argentina,Algeria,Angola, Australia,British, Brazil, Bulgaria,Egypt, Germany, India, Russia, South Africa,Saudi Arabia, Turkey,Thailand, UAE, USA, Vietnam.
Brief introduction:
Model FY-69 hose crimping machine is Based on repeated research and design, we improved our machining and heat treatment technology.We also improved our hydraulic system component. We adopt top quality plunger pump, motor and hydraulic valve. Model FY-68 hose crimping machine is faster and stronger.
Advanced features:
1 Adopt top quality hydraulic component, such as plunger pump, hydraulic valve, motor and etc.
2 Upgraded machining and heat treatment technology.
3 Reasonable control circuit.
4 No accumulative error process technology, machine dies are largely improved.
5 High working efficiency and long working life.
6 Convenient Operation.
Specifications:
| Crimping capacity: 1/4″ to 2″ 4SP | Crimping accuracy: ≤0.01MM |
| Crimping force: 500KN | Crimping rate: 240PCS/H |
| Max. opening without die: 115MM | Opening: ±30mm |
| Oil pump capacity: 5L | System pressure: 31.5MPA |
| Power: 3KW,380V,3phases 2.2KW,220V,single phase | Overall size: 670 x 430 x 820mm |
| Noise: ≤75dB | Weight: 300KG |
| Dies(10sets) |
| No. x Length | No. x Length | No. x Length | No. x Length | No. x Length |
| 15 x 60mm | 19 x 60mm | 23 x 60mm | 26 x 60mm | 31 x 70mm |
| 36 x 70mm | 41 x 70mm | 47 x 70mm | 55 x 80mm | 65 x 85m |

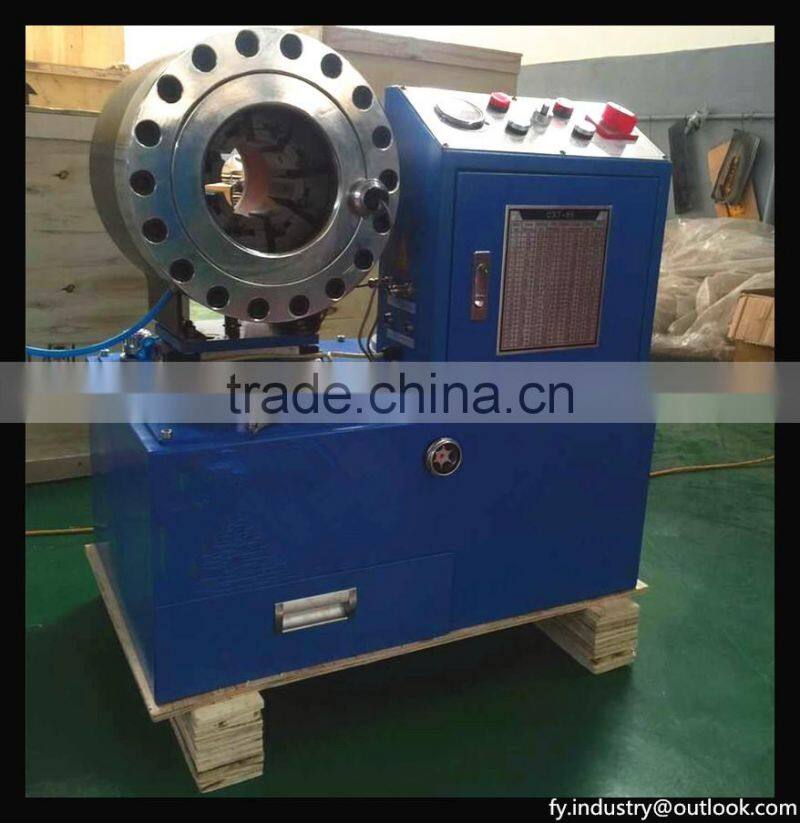

OPERATION PLATE ( Simple button way, Easy to operate)

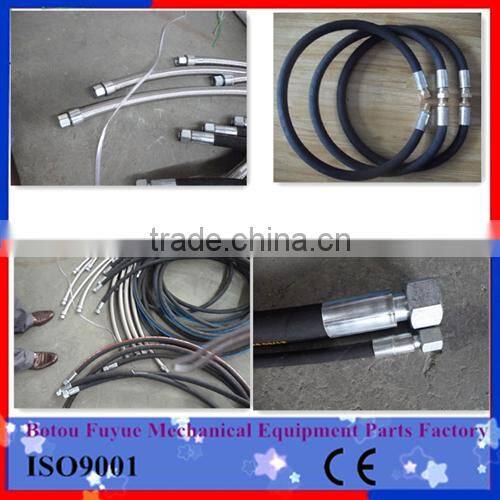

Crimp hose:

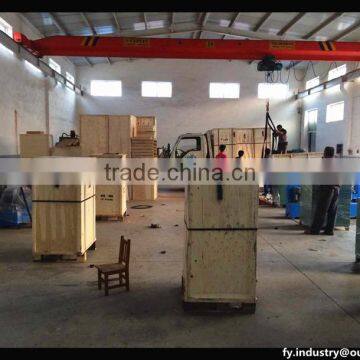

Packing of Electric FY69 crimping tool for hydraulic pipe :

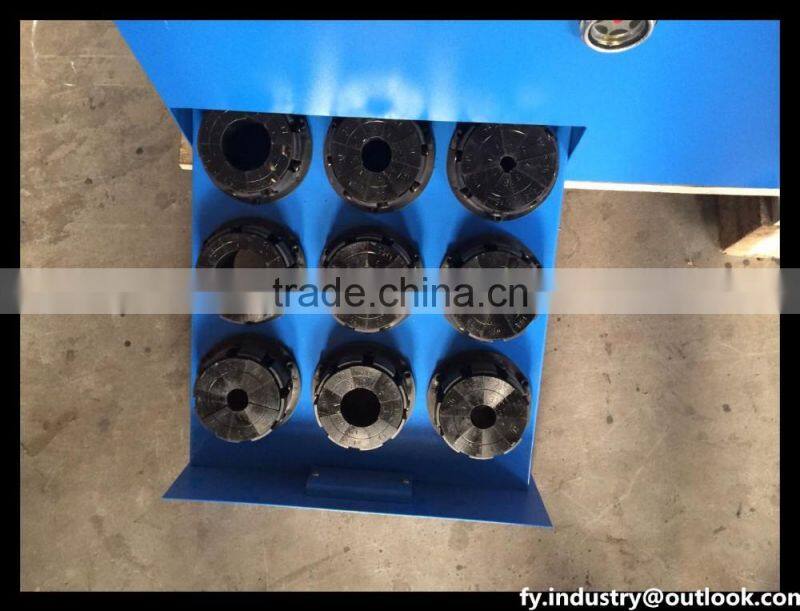

Mould Dies
Application of high pressure hose crimping machine:
hose Crimping machines designed for permanent assembly of fittings on hydraulic and industrial hoses by crimping the ferrule on a specially constructed hose tail of a fitting. Many types of different crimping machines are present on the market - from simple manual crimpers to king crimpers with crimping force of 1,200 tons. All crimping machines are adapted to work with exchangeable die sets (different sets for different diameter range). The most important crimping machines parameters are: crimping range, crimping force, maximum dies opening and theoretical effectiveness (in crimps per hour). Available in manual, pneumatic or electric drive with different control systems.
Cucstomer show with our hose crimping machine:
All of our machine has 3 Years Warranty. If any quality problem. Money back guarantee.
Professional Ship agent servie is always being provided. You can choose FOB,CIF,CNF,EXW, DDU,DDP, etc.
If it is your first time to import, our agent can guide you easily.
About Payment terms:
1 Western Union
2 T/T
3 L/C
4 Escrow
Welcome to visit us:
