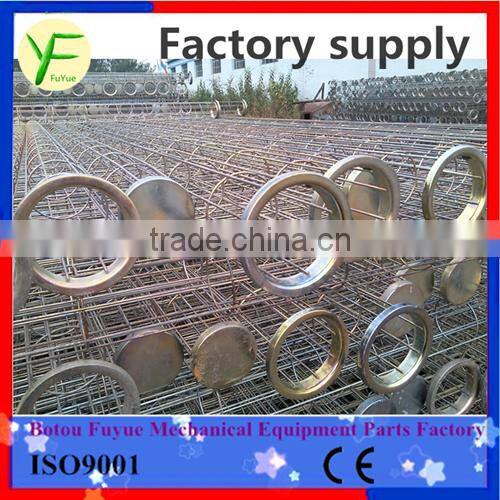

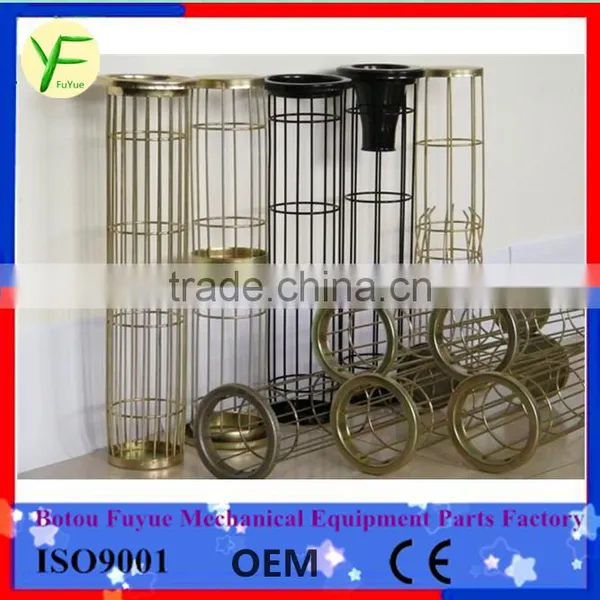

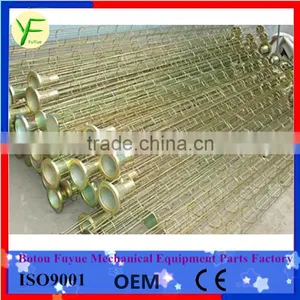

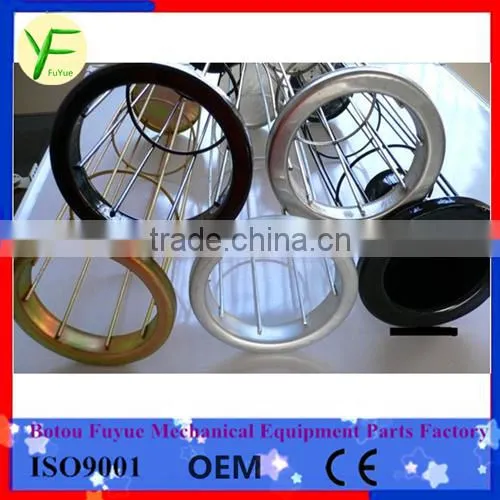

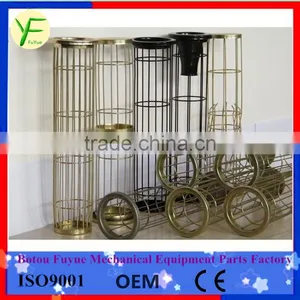

Dust baghouse stainless steel filter bag cage
Specifications
2.Carbon or Stainless steel
3.ISO9001:2008 Certified filter cages with ventu
1.Filter cage to be galvanized/silicon coating
2.Carbon or Stainless steel
3.ISO9001:2008 Certified 5.Any length or diameter
The filter cage is the support of filter bag and it should be light and easy for installation and maintenance. The quality of filter cage has directly bearing on the filtering state and service life of a filter bag. Every cage we make can meet the requirement for tightness, smoothness and uprightness.
1.material of cage: carbon steel or SS304,316,316L
2.type of cage: any style
3.type of the horizontal bar: round ring or star or envelop or oval
4.surface treatment: zinc-galvanization or silicon coating or epoxy
5.style of connection: clamp, chuck, claw join connection
6. Nos of wires: 8,10,12,16,20,24
7. The diameter of the longitudinal wire can be Φ3mm, Φ3.2mm, Φ3.5mm, Φ3.8mm or Φ4mm.
The vertical bar, horizontal ring, spacing ring, length, the diameter of the ring and the shape of the cage can be according with the requirement from client.
