High Quality Start Soft Starter 200kw

High Quality Start Soft Starter 200kw thumbnail-1
High Quality Start Soft Starter 200kw thumbnail-2
High Quality Start Soft Starter 200kw thumbnail-3
High Quality Start Soft Starter 200kw thumbnail-4
High Quality Start Soft Starter 200kw thumbnail-5
High Quality Start Soft Starter 200kw photo-1
High Quality Start Soft Starter 200kw photo-2
High Quality Start Soft Starter 200kw photo-3
High Quality Start Soft Starter 200kw photo-4
High Quality Start Soft Starter 200kw photo-5
US$ 130 - 1,200 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Inilion
Model Number:
IAS6-200KW-17
Contact Supplier Request Quote Chat Now
Shanghai Euo Source Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name Inilion
Model Number IAS6-200KW-17
Output Power 1 - 200KW
Output Type Triple
Size 302*150*183(mm)~1100*1120*355(mm)
Weight 6 - 21Kg
Input Voltage 380/440/660/1140VAC
Output Voltage 380/440/660/1140VAC
Type Other, Soft Starter
Output Frequency 50Hz/60Hz
Output Current 11 -1200A
Product Description

Product Application

Centrifugal pump, Piston pump, Fan, Shrinkable machine, Screw compressor, Centrifugal compressor, Piston compressor, Belt conveyor, transport plane, Jack screw, Type cable car, Elevator, Fretsaw, Band saw, Pulper, cutting machine, Stirring machine, Mixer, Muller, Crusher, Refiner, Press.

Specification of Inilion Soft Starter


Basic parameter
Three-phase voltage(U)
VAC
190 - 550
Frequency
Hz
50
Nominal current
A
10 -1000, total 20 kinds of rated values

Adjusting current
The nominal current In of motor can be adjusted within 0.5~1.3 times of starter rated current. The max starting current can be adjusted within 2~7 times of nominal current in, its limit is the starter current limit of 5 times.

Starting mode
The starting current is limited to 5In, the factory default setting: when the torque integral is 16s, the limit of starting current of standard load is 3In,and when the torque integration is 15s, the limit of starting current of heavy load is 3.5In.


Stopping mode
Free stop
Soft stop for 4s
Soft stop
Soft stop for 4s
Brake stop
Be programmable and adjustable from 0.5~60s (according to order agreement)

Display and keyboard
When the equipment runs normally, the display can show the operating current of motor (or current percentage), when the equipment occurs fault, the display can show the information of fault, and the keyboard can be used to set the parameter, contact function and locking stop.


Output relay(2pcs.)
Min switching capability
V/A
100mA~24V
Nominal working current
A
0.5,class AC-15(240VAV)and DC-13 (48VDC)
Mechanical life
Operate 0.5 billions times

Main Features

1) Adopt 16-digit SCM, full-digit automatic control.
2) Main circuit connection mode is 3-inlet 6-outlet, realize online protection throughout the entire series.
3) The starting torque current, voltage and time can be set flexibly according to different loads.
4) Providing smooth and gradual starting course for motor.
5) Kinds of protections against over current, over load, power failure, which ensure the safety of equipment and motor.
6) Can identify the phase sequence and have phase-sequence protection function.
7) Full digital setting and external control function, which takes much convenience for customer.

Certifications

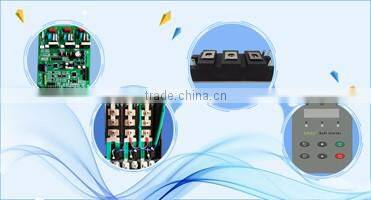

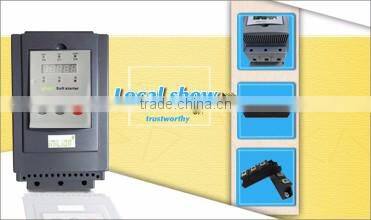

Detailed Images

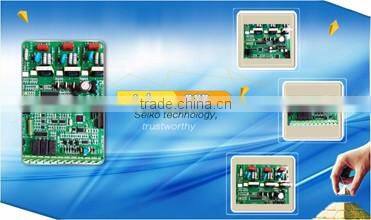

4 layer PCB Board

Name: Bliwing Cylinder
Brand: Philips
The CPU is provided by Philips. Through variety of rigorous testing and large number of applications, make sure the board could work in good condition.

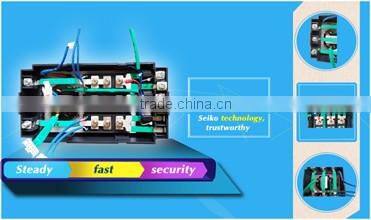

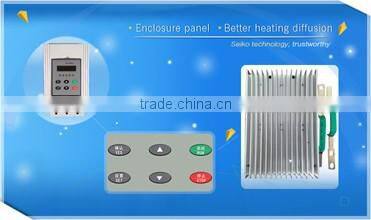

Quality shell & Thyristor

Name: Bliwing Cylinder
Brand: Semikron
Semikron thyristor, insulated shell, Germany technology. Kinds of protections against over current,over load,power failure,which ensure the safety of equipment and motor.

Spatial structure

Name: Bliwing Cylinder
Brand: FESTO
Original: Germany
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

Main Features

Name: Bliwing Cylinder
Brand: FESTO
Original: Germany
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

Our Service

Pre-Sales Service

* Inquiry and consulting support, view our Factory.
* Engineer team help you choose suitable device.
* Sample testing support, OEM service.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Provide spare parts with low price.

Packing & Delivery
Packaging
Item
Installation of components, Panel display
, Button operation, Fault display

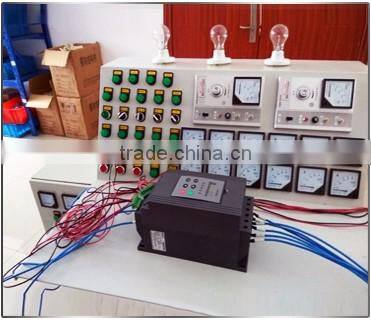

Testing Details
A: Correct wiring, open platform power, press SET, RUN key, repeated operation, to confirm the normal work of each key panel.
B. Install soft starter in the circuit, set start type and start the motor.Observe whether the test table mA table has 0-20mA analog current output.
Packaging
Size
32 x 19 x 21mm / 58 x 35 x 26mm
Weight
5 - 40kg



Packaging Details
Soft starter 5.5 - 55KW, Carton, 32 x 19 x 21mm. With cusom foam inside carton to protect it without any damage on delivery.

Soft starter 75 - 600KW, Wooden box, 58 x 35 x 26mm.Professional package protect it from any damage.
