True shear cut spiral cutter head.*It require less horse power, makes smaller chips and less noise than other cutterheads.

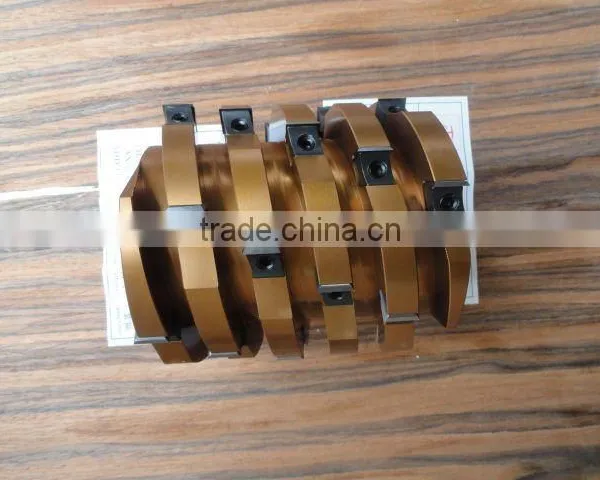

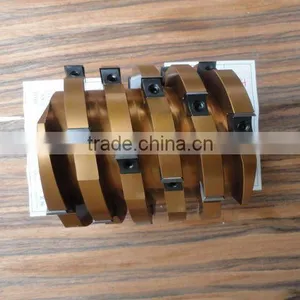

Shear Cut Spiral Cutter Head
Shear cut spiral cutter head. It requires less horsepower, makes smaller chips and less noise than any other type of of cutterheads do. If one knife edge is dull or damaged, just turn it to another edge in seconds and the cutterhead works pefectly as a new one again. This greatly reduces your down time. Replace the inserts only when four edges are dull. You don’t need to replace all the knives as you have to do with the conventional single straight knife. It pays you back in a very short time
Features:
* Aluminum body.
* Sprial: 4 to 12
* 15x15x2.5mm indexable carbide inserts with 4 radius edges
* Carbide inserts are angled to the center line for true shear cut.
* Smooth surface cut even on knotty or stringy wood.
* Produce small chips for easy dust collection.
* Reduce down time by rotating only damaged or dulled edges.
* Heavy duty cutting and lower hosepower comsumption.
* Minimum noise level, extremely quiet.
* Bore diamter: 30mm to 50mm.
* Body diameter: 60mm to 230mm.
* Height: 25mm to 310mm.
Order No.
DIAMETER
LENGTH
BORE
805-0532
90mm
100mm
40mm
805-0533
90mm
120mm
40mm
805-0534
90mm
150mm
40mm
805-0535
90mm
180mm
40mm
805-0536
105mm
100mm
40mm
805-0537
105mm
130mm
40mm
805-0538
105mm
150mm
40mm
805-0539
105mm
180mm
40mm
805-0540
105mm
210mm
40mm
805-0541
122mm
40mm
40mm
805-0542
122mm
50mm
40mm
805-0543
122mm
60mm
40mm
805-0544
122mm
70mm
40mm
805-0545
122mm
80mm
40mm
805-0546
122mm
100mm
40mm
805-0547
122mm
130mm
40mm
805-0548
122mm
150mm
40mm
805-0549
122mm
180mm
40mm
805-0550
122mm
230mm
40mm
805-0551
125mm
40mm
40mm
805-0552
125mm
60mm
40mm
805-0553
125mm
80mm
40mm
805-0554
125mm
100mm
40mm
805-0555
125mm
130mm
40mm
805-0556
125mm
150mm
40mm
805-0557
125mm
180mm
40mm
805-0558
125mm
230mm
40mm
805-0559
125mm
240mm
40mm
805-0560
137mm
40mm
50mm
805-0561
137mm
60mm
50mm
805-0562
137mm
80mm
50mm
805-0563
137mm
100mm
50mm
805-0564
137mm
130mm
50mm
805-0565
137mm
150mm
50mm
805-0566
137mm
180mm
50mm
805-0567
137mm
230mm
50mm
805-0568
140mm
60mm
50mm
805-0569
140mm
80mm
50mm
805-0570
140mm
100mm
50mm
805-0571
140mm
130mm
50mm
805-0572
140mm
180mm
50mm
805-0573
140mm
230mm
50mm
805-0574
160mm
60mm
50mm
805-0575
160mm
80mm
50mm
805-0576
160mm
100mm
50mm
805-0577
160mm
130mm
50mm
805-0578
160mm
180mm
50mm
805-0579
160mm
230mm
50mm
