Home > Packaging & Printing > Printing Machinery > Digital Printing Machine > ECO Solvent Printer Large Size Banner Printer

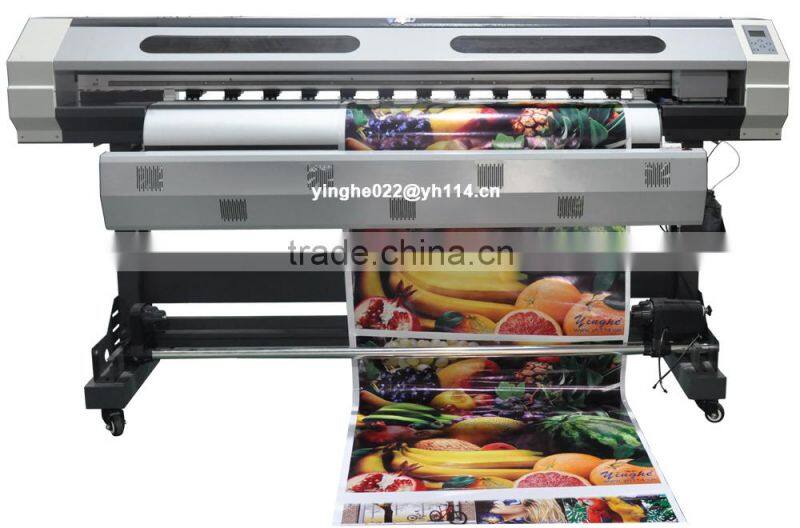

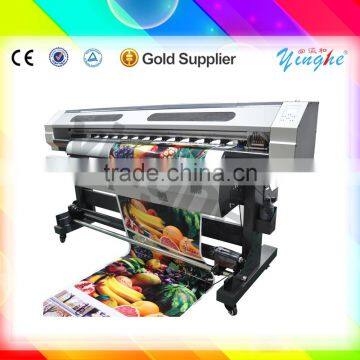

ECO Solvent Printer Large Size Banner Printer

ECO Solvent Printer Large Size Banner Printer photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, Roll to roll
Brand Name:
Yinghe
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Plate Type Other, Roll to roll
Brand Name Yinghe
Model Number YH-1600G
Usage Other, Car sticker, lamp cloth, face film, flex banner, transfer PU film
Automatic Grade Automatic
Voltage 110V/220V
Gross Power 400w
Dimensions(L*W*H) 2545*455*1300mm
Weight 125kg
After-sales Service Provided Engineers available to service machinery overseas

ECO solvent printer large size banner printer

Product Description

 Feature

1. Piezoelectric 5th/7th-generation nozzle really realized 1440dpi high-precision, guarantee perfect quality picture output.

2. Motor: Leadshine server motor driver, quality assurance, high resolution and stable.

3. Guide rail: Taiwan HIWIN silent THK, high resolution, mute

4. Cleaning: Impactor cleaning ink station, one-step cleaning

5. Feeding and take-up system

6. Drying: front and back platform heating, fans

Exterior: industrial design, stable structure



 Pamater

Model

YH-1600G

YH-1800G

Printhead

Dx5/dx7 * 1pc

Maximum Print width

1.5m

1.8m

Ink supply system

CMYK

Compatible ink

ECO solvent ink/ Water-based ink/ Sublimation ink etc

Printing media

ECO solvent

Car sticker, lamp cloth, face film, flex banner, transfer PU film



Water-based

PP, backlit film, photo paper, self-adhesive vinyl, pictorial cloth



Sublimation

Transfer paper



Special

Wall paper, canvas, Chinese art paper, grid cloth

Print resolution ratio

1440dpi

Printing speed

draft mode

18m2/h

20m2/h



production

15m2 /h

17m2/h



quality model

12m2/h

15m2/h

Cleaning of head

Automatic

Heating system

Front / back

Drying system

Equipped

Fan

Fan



Optional

Infrared

Infrared

Media take-up system

Equipped

Equipped

Platform suction control

Equipped

Internal storage

Unequipped

Printing software

Maintop

Operating system

WinXP / Win7

Voltage

AC200V 50-60Hz

Power consumption

400w

600w

Operating environment

15-30, 40-60% humidity

Machine size

2545*455*1300mm

2837*455*1300mm

Packing size

2580*820*500mm

2870*820*500mm

N. / G.  weight

125 / 165kg ±5%

140 / 185kg ±5%

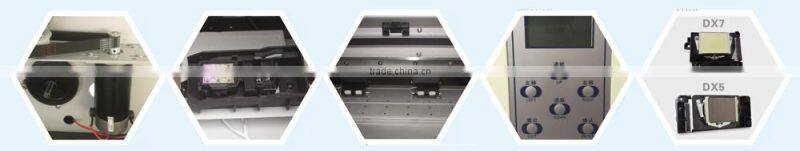

 Details

ECO solvent printer large size banner printer





ECO solvent printer large size banner printer











ECO solvent printer large size banner printer





Packaging & Shipping

Production time: 5-7 working days

Package: Standard export package

ECO solvent printer large size banner printer



ECO solvent printer large size banner printer



ECO solvent printer large size banner printer





Company Information

 Certificates                                Picture wall (pictures with clients from all over the world)

ECO solvent printer large size banner printer

 Head office &show room (in Guangzhou, near the airport)

ECO solvent printer large size banner printer





ECO solvent printer large size banner printer



ExhibitionECO solvent printer large size banner printer

FAQ

How to place a order:

1. After confirming order details, we will make Proforma Invoice for you.
2. After receiving 30% deposit will start test machine carefully. Ensure the excellent performance.

3. After tested the machine, will pack and send out.

4. When you received the printer, there is user manual and video to guide you install, operate and maintain.

5. When any technical issues, you can contact with our technician directly. They will help you solve the problem by Skype or Teamviewer. So you can rest assured about the after service.
6. We provide free training in our factory. When order several sets, can also send technician to your place. Help set up machine, and provide training to your staffs.

*********************************************************************************************************************************
