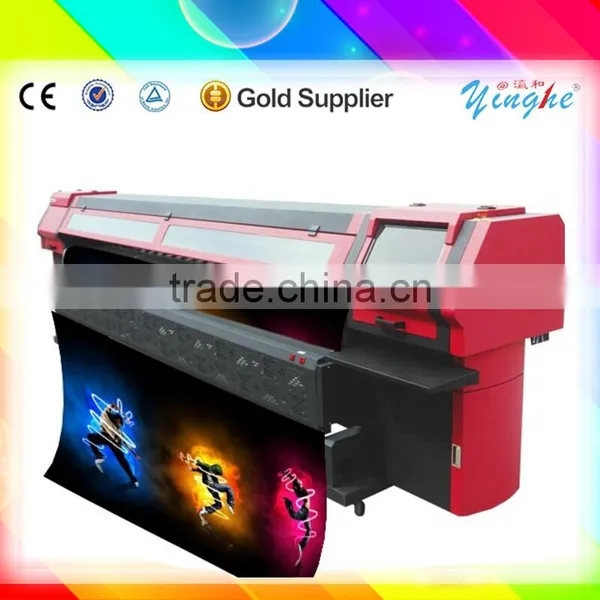

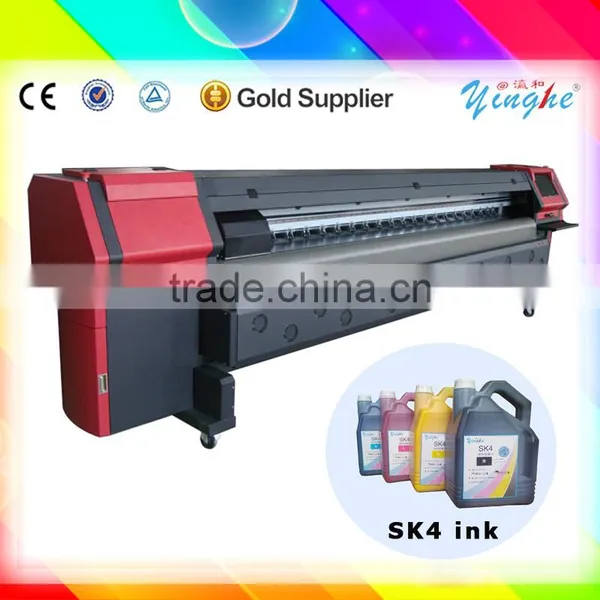

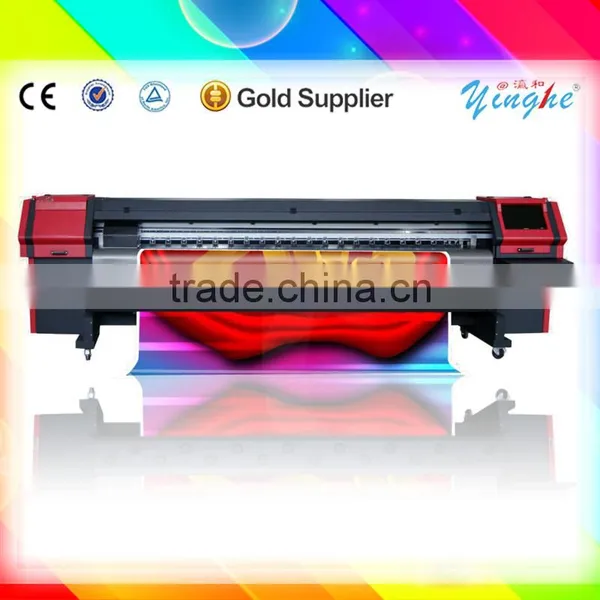

Best Selling 3.2m Outdoor Large Format Solvent Printer

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Huangpu Guangzhou
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Plate Type	Other, inkjet printer
Place of Origin	Guangdong, China	Brand Name	YINGHE
Model Number	YH-TS1000	Usage	Paper Printer, Other, Paper Printer, Viny, flex, polyester, backlit, window film, etc
Automatic Grade	Automatic	Voltage	AC220V 50/60HZ
Gross Power	500-1000W	Dimensions(LWH)	4840mm(L)1000(W)1340mm(H)
Weight	520kg±15kg	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

3.2m outdoor large format solvent printer

3200mm large format solvent printer with S-e-i-k-o head, S-P-T 510 35pl/50pl or S-P-T 1020 35pl 4/8 PCS printheads for choice, auto feeding and take-up systerm, luxury drying fan, high speed printing.

Product Description

Why choose Yinghe 3.2m Solvent Digital Printer ?

3.2m with 4/8 pcs S-P-T510 35/50pl ot S-P-T 1020 35pl for choice . High resolution can reach 1440dpi, photo quality.
Equipped with Photo Print English software.
Improved printhead board and capping station,extend the printer lifespan and printing speed.
Auto Capping, cleaning function, feeding and material take up.
Received customers' high praise

Feature

S-e-i-k-o series, the highest cost-effective machine, equiped with S-P-T510/1020 series high yield printhead, 112 square meters each hour production, combined with fiexible printhead, 4 head, 8 head, switched arbitrary.

Specification

Model		S-e-i-k-o Printer YH-TS1000
Printhead type		S-P-T 510/35PL	S-P-T 510/50PL	S-P-T 1020/35PL
Printhead number		8	8	4	8
Printhead combination		2*4	2*4	1*4	2*4
Print width		3200mm
Print speed	High	112sqm/h	130sqm/h	78sqm/h	175sqm/h
	Medium	82sqm/h	102sqm/h	68sqm/h	144sqm/h
	Standard	74sqm/h	94sqm/h	51sqm/h	96sqm/h
Ink	Type	Solvent Ink
	Color	C M Y K
Media Type		Viny, flex, polyester, backlit, window film, etc
Ink Supply		Automatic ink supply based on alarming of low ink lever in sub-tank
Maintenance of Printhead		One button cleaning printhead by solvent, 4 color positive pressure ink injecting
Rip Soft		Ultraprint, Photoprint 10
Data Interface		USB 2.0
Assistant Option	Auto Feeding and Take up system	Infraed-detecting, feed and take up system
	Heating system	Three stage heating system include back, front heating
	Carriage height	2-5mm distance to the printing platform, adjustable
	Other functions	Light for carriage position and platform
Operation Voltage		AC220V 50/60HZ
Power		Print system: 500w Heating system: Front heating 500w/Rear heating 500w/Back heating 1000w
Workng environment		Temperature: 22-28°C Humidity:40%-70%
Printer size		4840mm(L)1000(W)1340mm(H) 520kg±15kg
Shipping size		5320mm(L)1040(W)1480mm(H) 740kg±15kg
Note:The above print speed may have error because of different comuters and different medias.Please be subjected to the practical speed.

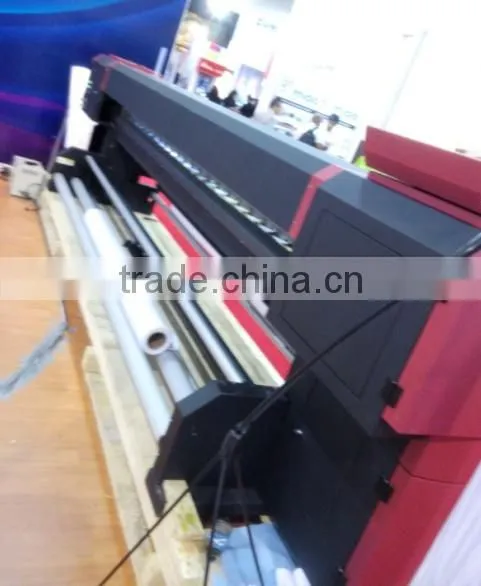

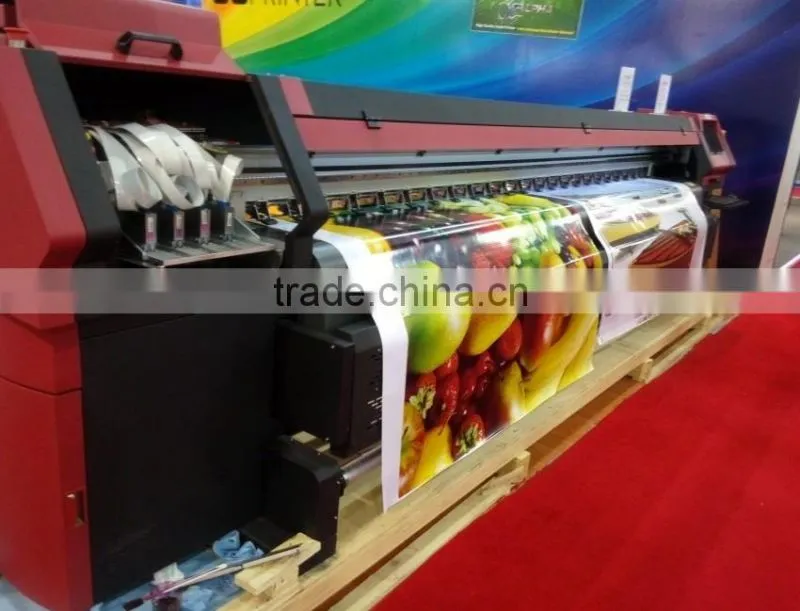

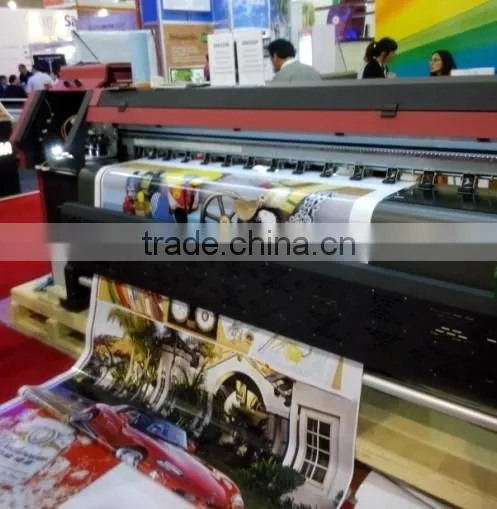

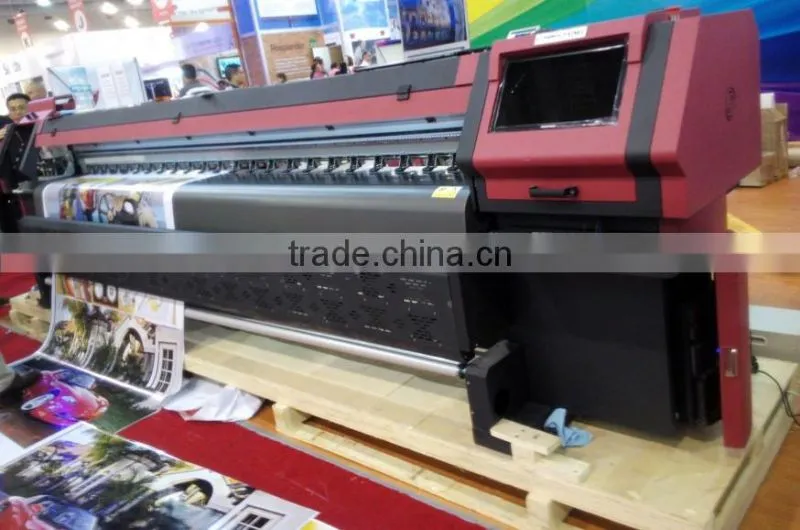

Detailed Images

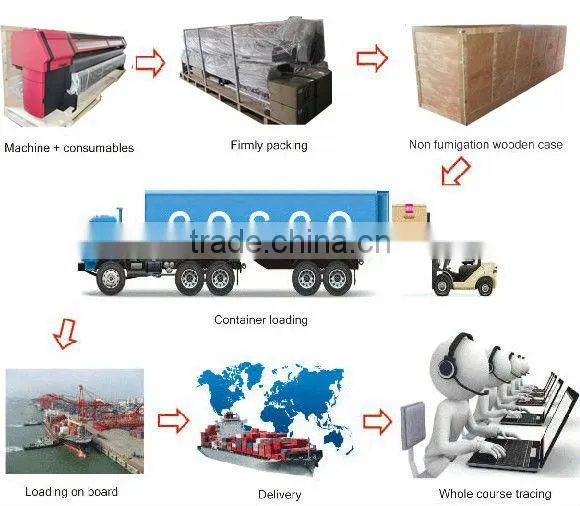

Package: Packing with plywood case, iron frame fixed the machine.
