Place of Origin Shanghai, China
Brand Name PENCO
Model Number scba

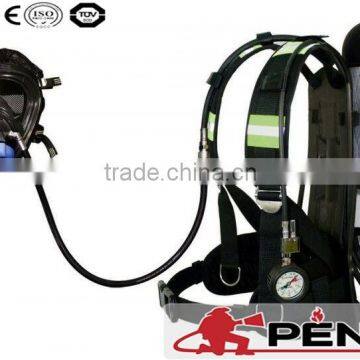

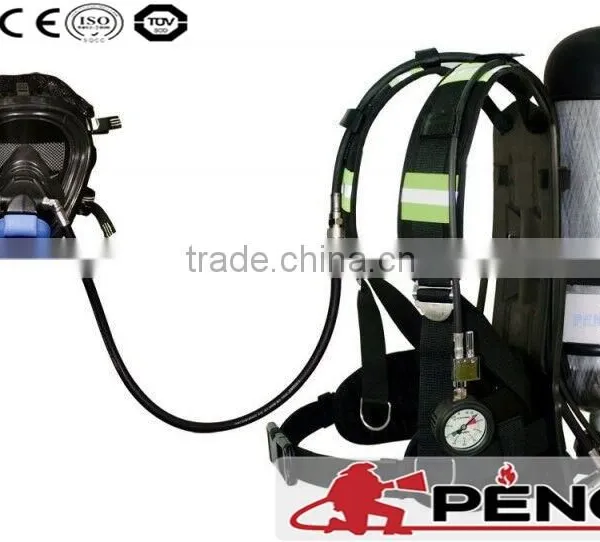

6.8L Cylinder Fog-proof Mask fire fighting scba/ self-contained breathing apparatus



1. Product Pictures:

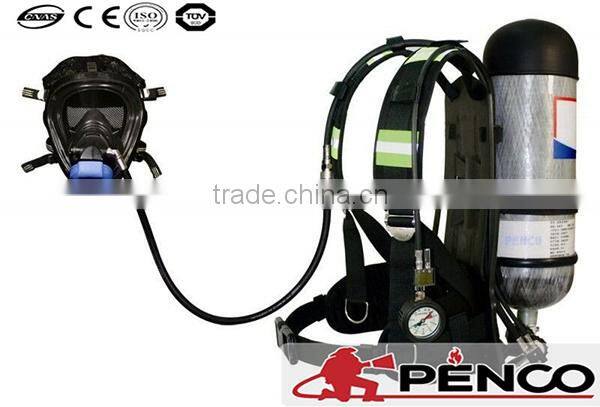

6.8L Cylinder Fog-proof Mask fire fighting scba/ self-contained breathing apparatus6.8L Cylinder Fog-proof Mask fire fighting scba/ self-contained breathing apparatus





2. Product Details:



CE certified 60 mins self contained air breathing apparatus
firefighting equipment, scba factory, suitable for fire fighting, oil industry
chemical industry, metal industry, electricity, military, shipping.

Gas mask,back-up,Cylinder valve, Air supply valve,  decompressor, Cylinder.



Product name

CE certified 60 mins self contained air breathing apparatus, firefighting equipment,

SCBA

Technical parameters
Cylinder pressure Max suppoy
airflow 		Respiratory resistance Alarm
pressure 		weight Duration
time
Volume breath inhale
3.0L ≤30MPa ≥1000L/min ≤1000Pa ≤500Pa 5.5±0.5 MPa 6.2KG 30mins
4.7L ≤30MPa ≥1000L/min ≤1000Pa ≤500Pa 5.5±0.5 MPa 7.1KG 47mins
6.0L ≤30MPa ≥1000L/min ≤1000Pa ≤500Pa 5.5±0.5 MPa 13.1KG 60mins
6.8L ≤30MPa ≥1000L/min ≤1000Pa ≤500Pa 5.5±0.5 MPa 7.5KG 68mins
9.0L ≤30MPa ≥1000L/min ≤1000Pa ≤500Pa 5.5±0.5 MPa 9.1KG 90mins
Standard
GA124-2004
Structure
Gas mask,back-up,Cylinder valve, Air supply valve,  decompressor, Cylinder
Characteristic
1. Lighter weight scba  2. Wide horizon gas mask, anti impact, anti flog, heat resistant
Applications
CE certified 60 mins self contained air breathing apparatus
firefighting equipment, scba factory, suitable for fire fighting, oil industry
chemical industry, metal industry, electricity, military, shipping.

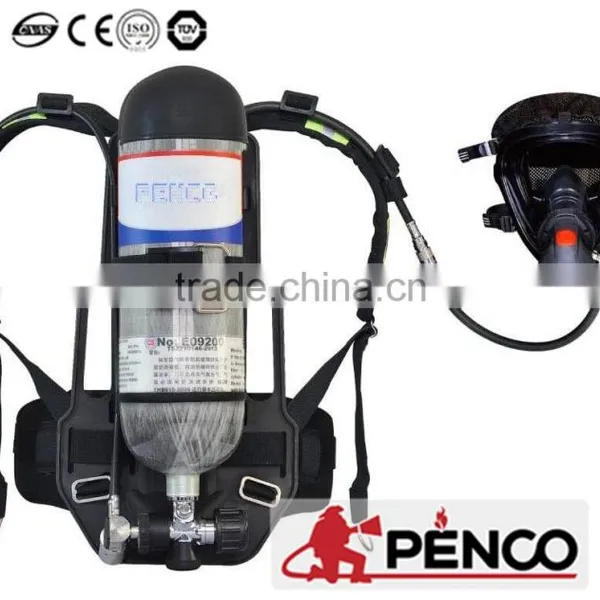

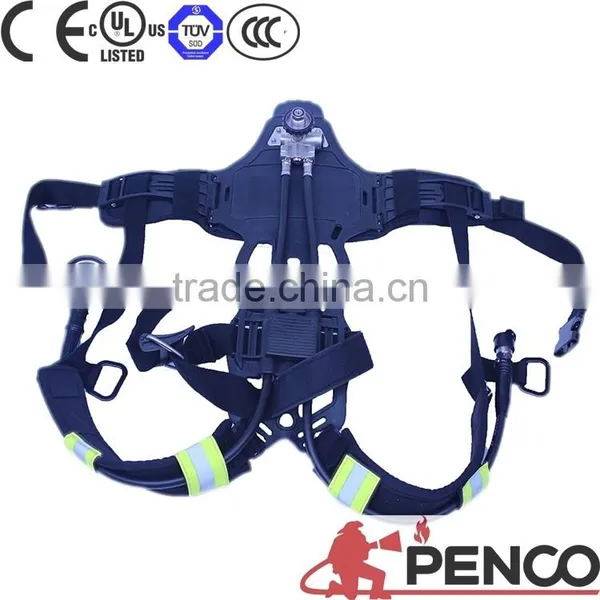

Back Pack

6.8L Cylinder Fog-proof Mask fire fighting scba/ self-contained breathing apparatus





  • This back pack is one of the lightest and strongest in the industry.
  • The designof the backpack based on the figure of the human being,the purpose is the perfect fit to the body.it also adopt the high intensity material which can not only anti the static but also isolate the high temperature.Meanwhilethe comfort is another key point for this instrument the special wing design of the waist belt greatly decentralize the weight point,which improve the flexibility of the end users.
  • Flame proof of harness belt can be easily unpicked and washed.

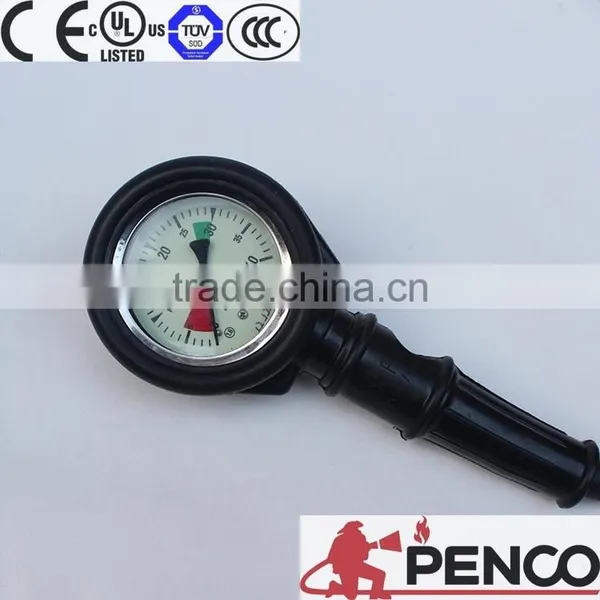

 6.8L Cylinder Fog-proof Mask fire fighting scba/ self-contained breathing apparatus
  • A rubber shock ring can avoid shock and waterproof impact on the pressure gauge
  • Dial fluorescent display with range 0-40Mpa. Can read gauges values in the dark and dimly lit situations.
  • Alarm will be ring while the pressure at 825±75psi (55±5bar), Alarm sounds ≥ 90db. Not weakened with reduced pressure, It reminds the user to grasp the evacuation time to retreat.

 6.8L Cylinder Fog-proof Mask fire fighting scba/ self-contained breathing apparatus
  • Unique quick-connecting demand valve,supplies the air automatically when connected to the mask.
  • Small and light,good down vision
  • Comfortable breathing,maximum supply flow rate is higher than 500L/Min,always keeping a positive pressure in the mask

Cylinder Valve6.8L Cylinder Fog-proof Mask fire fighting scba/ self-contained breathing apparatus
  • Working pressure: 30Mpa;
  • Outlet Connection: DIN G5'/8 Internal thread;
  • Inlet Connection: M18*1.5 ;
  • With safety control blasting;
  • Mode supporting Drager ,schmiz,NO.RHZK6.8/30, RHZK6/30 , RHZK5/30 ,etc.

Flexible connector6.8L Cylinder Fog-proof Mask fire fighting scba/ self-contained breathing apparatus
  • This connector provide more flexibility when wearing the demand valve
  • The connecter make the MP hose close to avoid any danger of hose being hooked

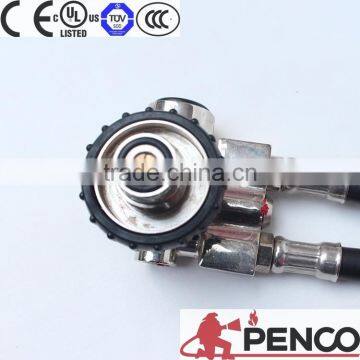

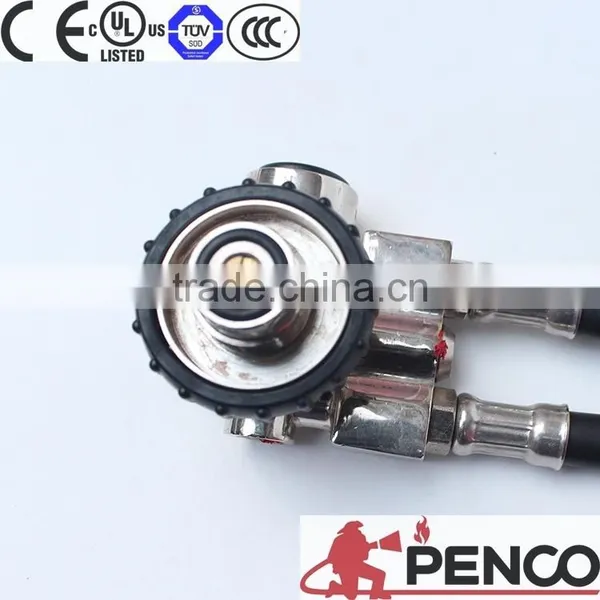

Pressure Reducer 6.8L Cylinder Fog-proof Mask fire fighting scba/ self-contained breathing apparatus
  • Simple structure,keeps the Medium Pressure system at 8 Bar
  • Specal design,able to accept 2 cylinders
  • Safety valve,to ensure that the pressure of the MP hose is always lower than 7bars
  • Additional”buddy breather”:can be equipped with two masks for rescuing an endangered person

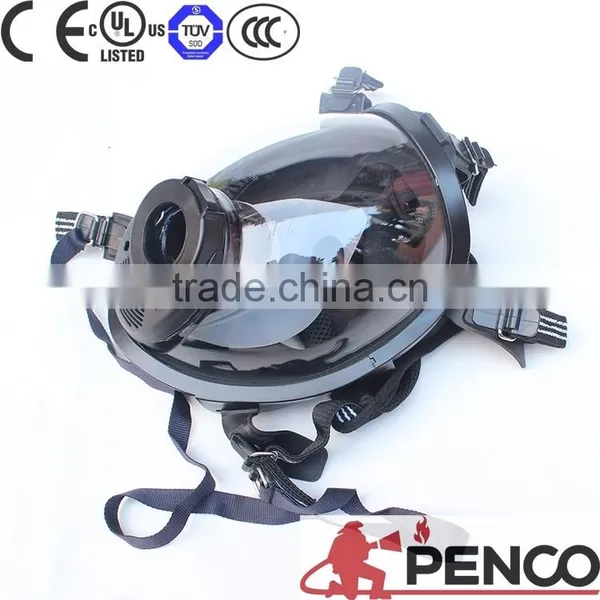

 6.8L Cylinder Fog-proof Mask fire fighting scba/ self-contained breathing apparatus
  • Silicone rubber Durable will not oxidize or react with Ozone
  • Unsurpassed comfort,even in extreme heat or cold
  • Five-strap harness and skirt with better sealing ability for better comfort and fit
  • Improved lens expands the vision,with optical treatment,anti fog properties,and anti scratch abilities
  • Option with radio communication function to ensure keeps communication without removing the mask in a noisy environment.

Cylinder 6.8L Cylinder Fog-proof Mask fire fighting scba/ self-contained breathing apparatus
  • 6.8L for more than 45 mins duration(actual using time)
  • EN and DOT-CFFC-2000 standard
  • Volume differs in 2L, 3L, 4.7L, 5L, 6L, 6.8L, 9L and 12L for option.
