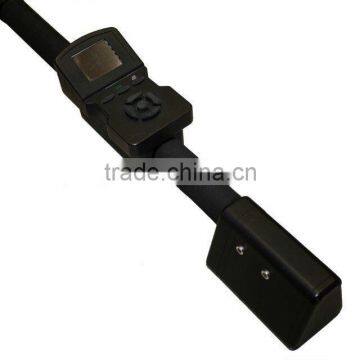

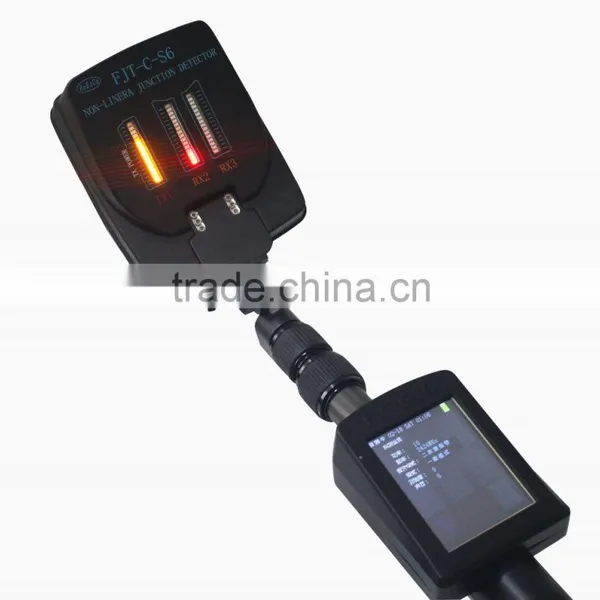

Non-Linear Junction detector FJT-C-S6

Non-Linear Junction detector FJT-C-S6

1.Overview

FJT-C-S6 non-linear junction detector is used for search and location of electronic devices both in active and switch-off state. The detector operation is based on the property of semiconductor components to generate a harmonics response when radiated by a microwave probing signal.

FJT-C-S6 non-linear junction detector  can  automatically find the best reception frequency channel without interference, it can be used in a complex electromagnetic environment. Power output can be automatically adjusted to facilitate the work of the operating personnel to the maximum extent.

FJT-C-S6 can simultaneously detect semiconductors and metals, such as remote control, mobile phones, cameras, listening devices, transmitters and so on.

2.Specification

1.Transmitter range2400.5MHz -- 2485.5MHz

2.Signal form Pulse duty cycle of 5%

3.Pulse width 500us

4.Transmitter power3.7W(peak), power error: ± 15%.

5. Second harmonic receiver frenquency 4801MHz -- 4971MHz

6. Second harmonic receiver sensitivity-140dBm

7. Third harmonic receiver frenquency 7201.5MHz -- 7456.5MHz

8. Third harmonic receiver sensitivity -140dBm

10.Working time more than 6 hours

11.Charge time3 hours
