Application:

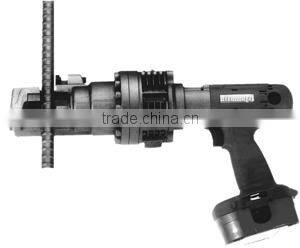

The QUIP Powered Cutters series is a unique tool for cutting wire quickly and easily. These
powerful tools can cut copper, aluminum, carbon steel, stainless steels and tool steels in a wire
mill or rebar on a construction site. Their mobility makes quick work of cutting wire in the mill,
rod yard, warehouse or off a truck without the need of power or large, difficult-to-use bolt. It is widely used in the field of firefighting, transportation, maritime affairs, mine and so on.
Characteristics:
Rotary cutting head can rotate 360 degrees under the condition of no pressure.
The cutting blade can be used all around.

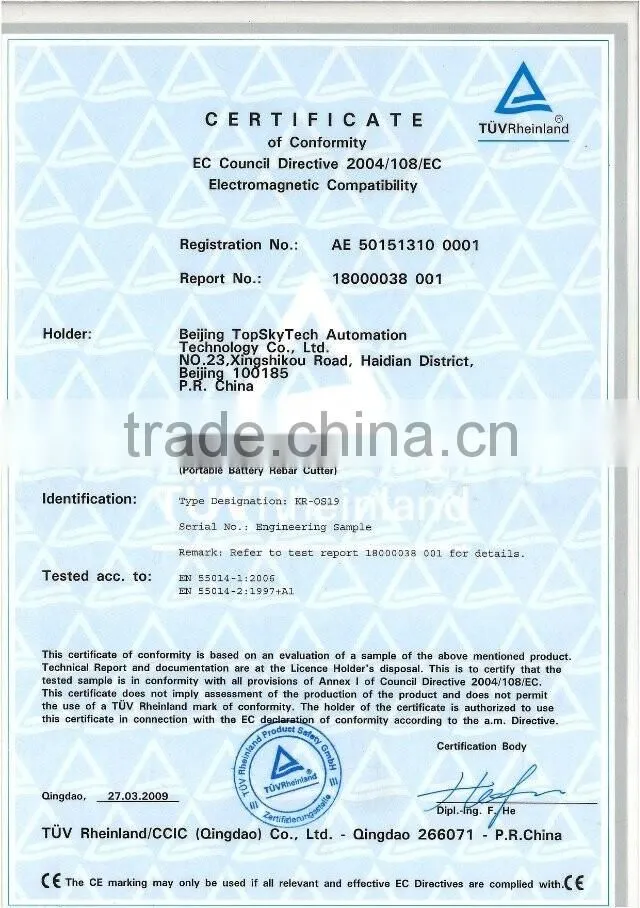

We have gained German TUV CE Certification.
Cutting scope: rebar, steel pipe and cable
Built-in battery, no need of additional power
Technical Specification:
|
Normal Cut Diameter
|
16mm |
Maximum Cut Diameter |
19mm |
Minimum Cut Diameter |
4mm |
Shear Reinforcement Hardness |
D16 |
Cutting Time |
4-6 s |
Overall Dimensions |
430mm×400mm×150mm |
Shearing Force |
120.5KN(12.5T) |
Battery Type |
Nickle-Cadmium/Ni-MH |
Dimension |
360mm×250mm×100mm |
Charging Time |
15 min |
18V |
Weight |
5.6kg |
