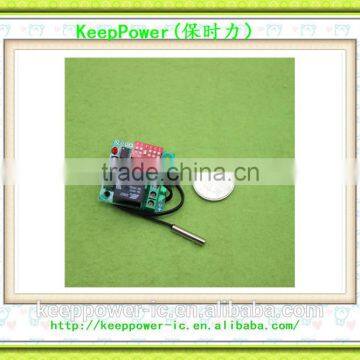

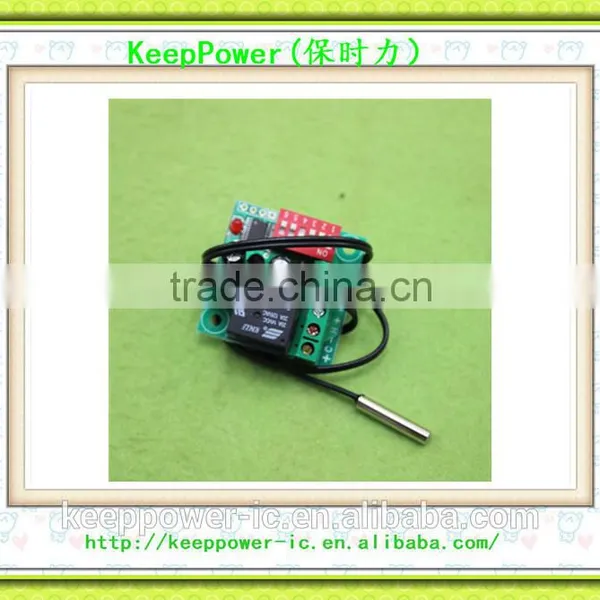

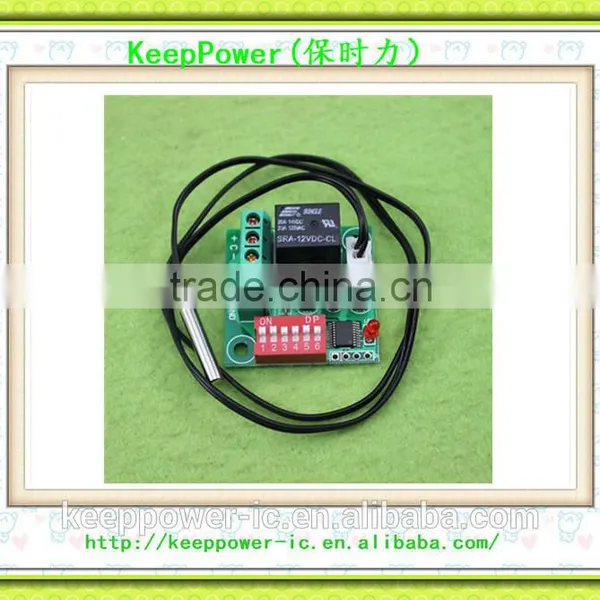

W1701 Precision Thermostat Temperature Switches

We offer one stop service for all kinds of electronic components such as ICs, Diodes,

Transistors, Optocouplers, Capacitors, Resistors, MOSFET, Crystal, IGBT modules,

Fuses, Connectors, Switches, Adaptors, Potentiometers, etc..

We only sell the original new items!

Details:

This product uses high-speed professional STM8 chip thermostat setting temperature and hysteresis binary code switch, with a small, easy to install, precision temperature control, adjustable hysteresis, etc., compared to professional thermostat Although not shown and thermostat control panel buttons, but accuracy and professional indifference, and one of only a fraction of the price, high cost, the product fully available (liquid, mold, space) and other control heating, can also be used (box, device , water, pet rooms, air conditioning) and other control refrigerant used in the heat of course more such occasions, chassis control, greenhouses, server cooling, is set higher than the number of degrees lower than the number of stop start. Intelligent, professional, dedicated and enterprising is our eternal pursuit of the goal, welcome valuable comments and suggestions in the course, we strive to do better!

According to their needs by drawing connected circuit, power supply is DC12V (+ 12V negative positive GND)
Temperature probes are placed on the required temperature of the object
For heating: Please 12V heater connected -H + (note positive and negative)
Used for refrigeration: Please cooler connected to the + C- (Note that positive and negative)
For cooling: Please cooler or cooling fan connected to the + C- (Note that positive and negative)
LED Status Description
Circuit board red indicator lights described refrigeration (+ C-) has an output
No light means heating (-H +) has an output
Parameter Function

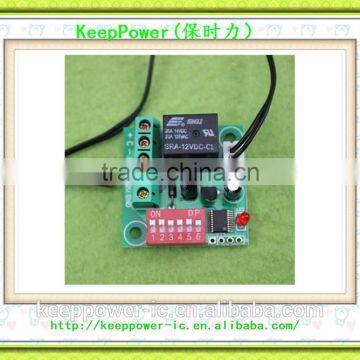

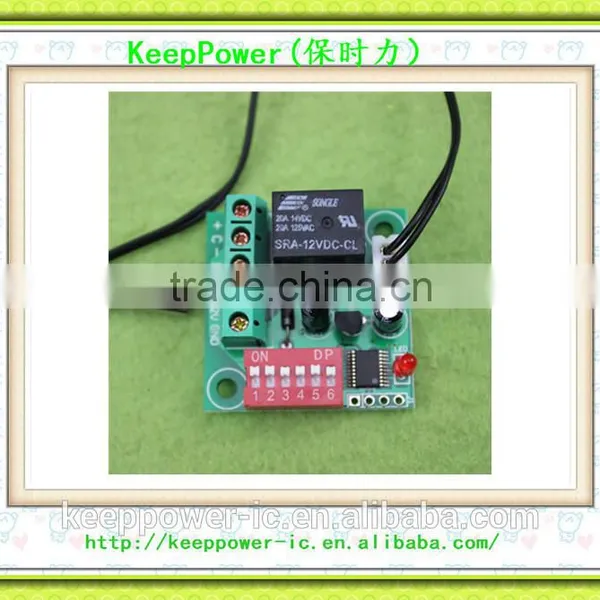

Temperature set using DIP switch plate mode, 1-4 5-6 to select the temperature hysteresis settings, from right to left in binary form from small to large settings, when the thermostat switch is fully closed state, only -H + with output, uncontrolled
Close to the radiator cooling fan plus thermostat switch, turn on the cooling fan when the temperature is above 40 degrees, the temperature is below 35 degrees: Example
The DC12V connected to the supply terminal, connected to the cooling fan + C-
We want to set the parameters for the temperature hysteresis = 40 = 5
According to the parameter list for the opening conceivable temperature of 24 to 40 degrees, 5 degrees open to other hysteresis 5 is fully closed, setting OK!

Contact us:

 All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.You're welcome to ask any details!

Our websit:http://www.keeppower-ic.en.china.cn

Detail product description:

How it works: electronic thermostat
Power: 250V10A
Thermostat temperature range: 110 degrees

Products:
      TEH72-92001K gas furnace temperature controller is designed for food baking factory equipment development and design, using double-sided wave soldering machine, beautiful, reliable, simple operation, strong anti-jamming capability, using SCM and fuzzy digital temperature measurement technology, stable has been further improved, the product has been unanimously endorsed by the customer.

Product Specifications
Product Name TEH72-92001K
Accuracy of ± 1 ℃
Control Mode
ON-OF, position control

Input signal: K, E, J
Relay output: contact capacity 250VAC 3A (resistive load)
Temperature range: 0-400 ℃
Operating voltage: AC.110V.220V 50 / 60Hz
Temperature display: digital full scale display
Setting mode: knob sets
Dimensions L72 × 72 × 100mm
Hole Size: 69 ± 1 × 69 ± 1mm
