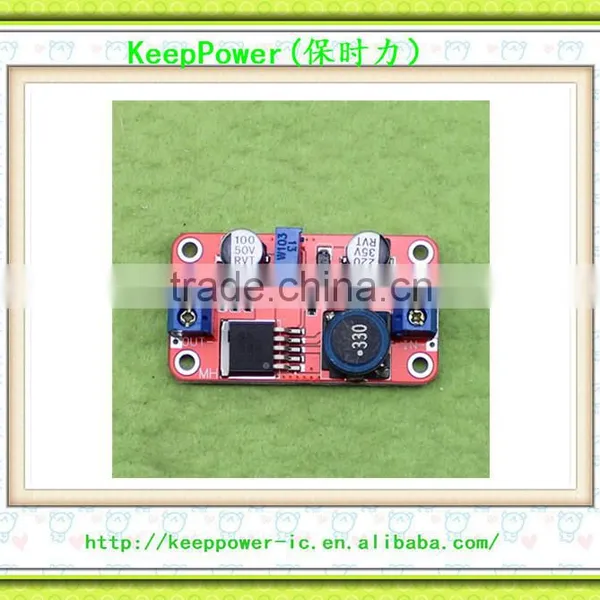

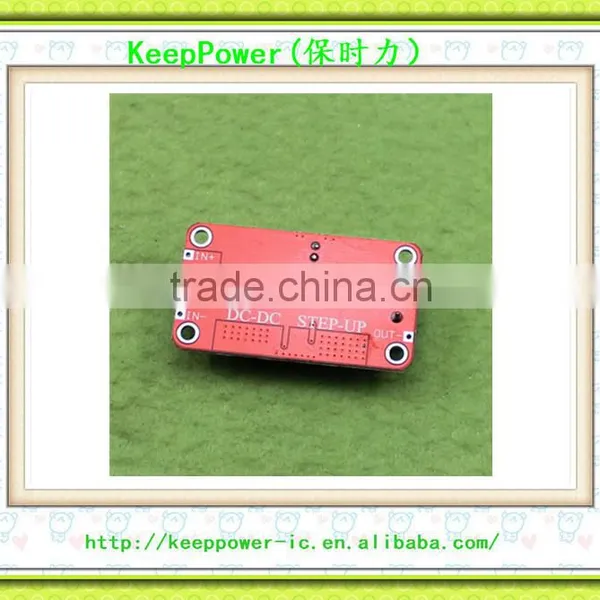

Help CenterDCDC Boost Power Supply Module XL6019 Power Supply Module Output 5V / 12V / 24V Adjustable
Related Products
-
SX1308 DC-DC Adjustable Boost Module High Current 2AUS$ 1 - 2MOQ: 10 Pieces -
XH-M131 Photoresistor Module Brightness Automatic Control Module 12V Light Control Relay Light Switch 5V 12V 24VUS$ 3 - 5MOQ: 10 Pieces
-
PM100RSE120 IGBT MODULE New and Original & Hot StockUS$ 50 - 300MOQ: 1 Piece
-
FS50R12KT3 IGBT POWER MODULE FS50R12KE3 New and Original & Hot StockUS$ 1 - 30MOQ: 1 Piece
-
FP25R12W2T4 IGBT Module New and Original and Hot StockUS$ 15 - 100MOQ: 1 Piece
We offer one stop service for all kinds of electronic components such as ICs, Diodes,
Transistors, Optocouplers, Capacitors, Resistors, MOSFET, Crystal, IGBT modules,
Fuses, Connectors, Switches, Adaptors, Potentiometers, etc..
We only sell the original new items!
Contact us:
All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.You're welcome to ask any details!
Our websit:http://www.keeppower-ic.en.china.cn
Detail product description:
Features:
1, the use of conventional topology BOOST fully integrated constant voltage output program, the internal integrated MOSFET, peripheral devices, the system cost is low;
2, wide voltage range input, the input voltage up to 35V;
3, the output voltage is adjustable, the maximum can support 40V;
4, built-in over-temperature protection, over-current protection full set of reliability protection circuit, high reliability;
5, the system conversion efficiency can reach more than 90%, to facilitate the thermal design;
6, TO263-5L standard package, suitable for 30W boost applications.
Module use:
1. Connect the power supply (3-35V), the power indicator light, the module is working properly.
2. Adjust the blue potentiometer knob (generally counterclockwise rotation boost, clockwise buck) and monitor the output voltage with a multimeter to reach the required voltage.
Precautions:
1. Long time work recommended within 2.5A of the current use, plus the heat sink (10W above output); due to the boost module, in order to ensure stable output, please keep the minimum 1.5V pressure.
Applications:
1. Car power supply, only need to connect the module input on the car cigarette lighter power supply, you can adjust the potentiometer, the output voltage can be adjusted at 5V-30V for your mobile phone, MP3, MP4, PSP charge Many of the equipment power supply, very simple and convenient.
2. To power the electronic equipment, when the device needs 5V-35V power supply and the corresponding voltage power, the use of this module can be easily transferred to the required voltage voltage to solve the problem.
3. System work voltage test, do the project can use this module to debug a variety of voltage test system operating voltage range, very easy and convenient.
common problem:
1.Q: some sellers to save costs, the use of the old capacitor inductance, is your company is the same?
A: We promise not to use the old capacitor inductance, all with a new, old external with a sense of tolerance may cause security problems.
2.Q: Some sellers to save costs, the use of thin PCB board, I would like to ask your company how thick this product thickness?
A: Our company's thickness of this product is 1.6MM, unlike other businesses, in order to save costs, using 1.2MM thickness of the board, thin PCB will seriously affect the thermal performance and other mechanical properties.
3.Q: the use of this module in the current after 2A, the fever, is it normal?
A: This phenomenon is normal, because the process of boosting, the excess power part of the energy from the heat into, so there will be fever. It is recommended to add heat sink, or reduce the amount of current.
