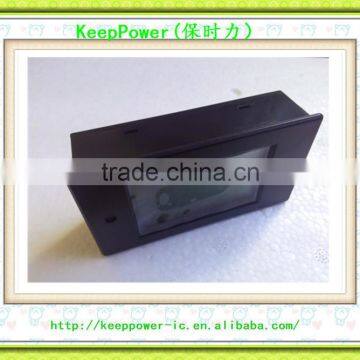

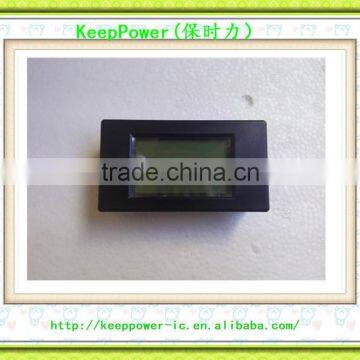

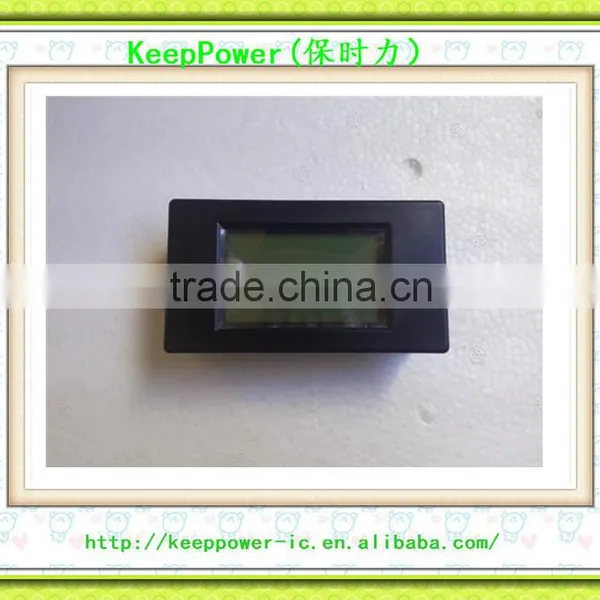

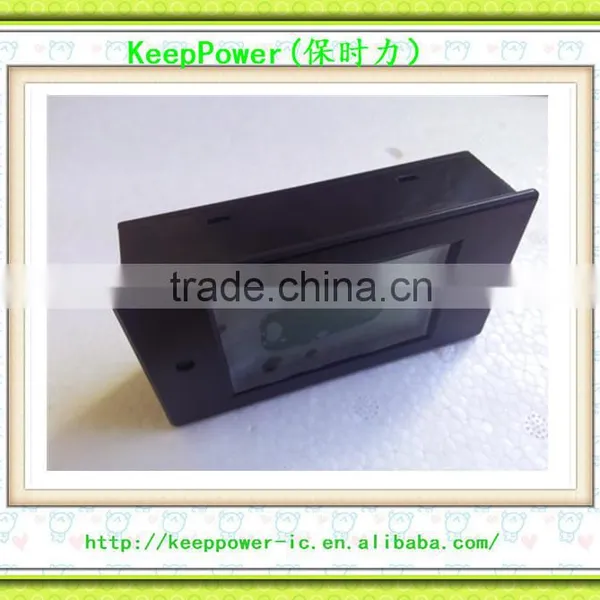

Help CenterPZEM-051 DC Voltmeter DC Ammeter DC Power Meter
Related Products
-
Plunger Pump V70A3RX-60US$ 700 - 800MOQ: 1 Piece -
Motor MSMA011A1EUS$ 400 - 500MOQ: 1 Piece
-
6es7131-4bd01-0aa0 New and Original 6es7 131-4bd01-0aa0 Hot Stock 131-4bd01-0aa0US$ 50 - 100MOQ: 1 Piece
-
6ES7132-4HB00-0AB0 PLC Module 6ES7 132-4HB00-0AB0 Original and New 132-4HB00-0AB0US$ 50 - 100MOQ: 1 Piece
-
XGF-AD8A Analog Input Module New and OriginalUS$ 400 - 600MOQ: 1 Piece
We offer one stop service for all kinds of electronic components such as ICs, Diodes,
Transistors, Optocouplers, Capacitors, Resistors, MOSFET, Crystal, IGBT modules,
Fuses, Connectors, Switches, Adaptors, Potentiometers, etc..
We only sell the original new items!
Contact us:
All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.You're welcome to ask any details!
Our websit:http://www.keeppower-ic.en.china.cn
Detail product description:
A. Function
1. Electrical parameter measurement function (voltage, current, power, electricity).
2. Voltage alarm function (more than the voltage alarm threshold, backlight and voltage flashing tips).
3. Power button clear function.
4. Power-down data storage function.
5. Large-screen LCD full-screen LCD display function (also shows the voltage, current, power, power).
6. Backlight function.
B. Display and button
one. UI
Display by the large-screen LCD screen at the same time display the voltage, current, power, power parameters.
two. Display format
1. Power: Test range 0 ~ 2kW
1kW within the display format 0.0 ~ 999.9W;
1kW above display format 1000 ~ 2000W.
2. Power: Test range 0 ~ 9999kWh
10kWh within the display format 0 ~ 9999Wh;
10kWh above display format 10 ~ 9999kWh;
3. Voltage: test range 6.5 ~ 100V
Display format 6.50 ~ 99.99V
4. Current: Test range 0 ~ 20A
Display format 0.00 ~ 20.00.
three. button
1. Backlight control
The backlight can be turned on or off with a short press of the button, and the backlight is automatically saved when the power is off.
2. Clear power
Step 1: Press and hold the key until "CLr" appears in the power display area, then release the button;
Step 2: At this time, the power flashes to indicate that the battery is in the state of zero power. If you press the button again, the power data will be cleared and the flashing status will be cleared.
Step 3: If there is no key operation within 5 seconds, it means that the battery data will not be cleared and exit the clear state.
3. Voltage alarm value settings
Step 1: Press and hold the key until the "SET" character appears in the power display area, then release the button;
Step 2: After entering this state, the voltage area displays the current high voltage alarm value. The current area displays the current low voltage alarm value and the lowest bit starts flashing. At this time, the bit can be pressed by pressing the button. When there is no key operation When the voltage is over 3 seconds, it will automatically switch the adjusted bit, from high-voltage alarm value to low-voltage alarm value, a total of 6, the voltage alarm threshold setting range is 6.5 ~ 99.9V;
Step 3: After setting, press and hold the key until "PASS" appears on the screen to indicate that the setting is successful and exit the setup state automatically.
C. Precautions
1. This module is suitable for indoor use, can not be used outdoors.
2. The load can not exceed the rated voltage, current.

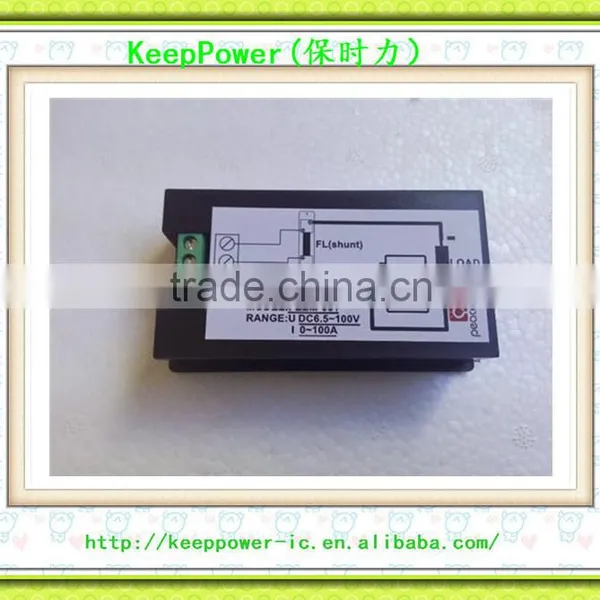

3. Wiring order can not be wrong.
D. Specifications
1. Operating voltage: 6.5 ~ 100VDC
2. Test voltage: 6.5 ~ 100VDC
3. Rated power: 20A / 2000W
4. Measurement accuracy: 1.0
