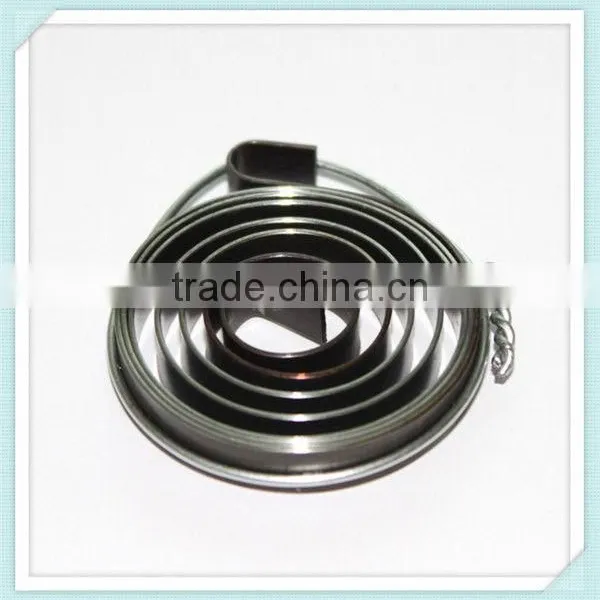

Flat Spiral Steel Spring

Specifications

Product name:

Starter spring /Spiral Spring/Coil spring/Power spring/ flat spiral steel spring

spiral spring :

HS. Code: 73202090

Spiral spring Scope:

1) Width: 3~50mm

2) Thickness: 0.05~2mm

3) Length: Unlimited

4) Material: Stainless steel, Carbon Steel

Application of spiral spring:

1)chainsaw, garden tools

2)generator

3) electronic wire take-up

4) toy , clock and timer

5) hose reel

6) car safety belts

Spiral spring Work principle:

Spiral spring is also called the power spring , which is made by the steel ribbon, it can be divided into the natural type power spring and the prestress force type power spring due to its relaxed shape. The natural type power spring is made directly by the wrapped steel, while the prestressed force type power spring will finalize the shape first, then reverse the direction into a spiral shape, its shape after spread out just looks like the letter S , hence it is also known as the S shaped spring.

When we use the spiral spring, we need to use a case to confine its outer diameter, the middle of the spring is connected to the line shaft. Once the line shaft and the spring do relative rotation by the external force, the spring will be rolled onto the line shaft and store power. After the external force disappears, the spring generates torque force to drive the line shaft, and output the storage power via the line shaft at the same time.

Comparing under the same specification spring, the prestress force type can store more torque force of 25%~40% , it can provide more rotation turns under the same space.

Check the following specification which you can get fast shipping and free sample:

0.4*4*1799mm

0.4*4*2030mm

0.4*4.75*2515mm

0.4*4.75*3164mm

0.45*4*2371mm

0.45*4*2335mm

0.45*4.75*3005mm

0.45*4.75*3034mm

0.45*6*3438mm

0.5*4*1985mm

0.5*4*1962mm

0.5*4.75*3144mm

0.5*5*2405mm

0.5*5*1900mm

0.5*5*2485mm

0.5*6*2304mm

0.5*6*2444mm

0.5*6*2408mm

0.55*4.75*3377mm

0.55*4.75*4766mm

0.55*4.75*2341mm

0.55*4.75*3363mm

0.55*5*2650mm

0.55*7*2380mm

0.6*4.75*2385mm

0.6*4.75*2344mm

0.6*5*2928mm

0.6*5*2627mm

0.6*5*1902mm

0.6*6*2952mm

0.65*6*2519mm

0.8*6*2790mm

0.4*4.8*2900mm

0.6*5*2900mm

0.6*7*3700mm

0.7*4.8*2500mm

0.5*4*2400mm

0.6*4.8*2500mm

0.65*6.25*3000mm

0.6*4.75*2500mm

0.5*4.75*2400mm

Welcome RFQ of Spiral spring:

please send us below details for OEM service:

1) material

2) size ( thickness, length, width,ID,OD)

3) quantity

4) drawings or sample

You are right to choose us:

1. Professional research and development team.

2. Complete first-class fully automatic production and testing equipment, safety package and prompt delivery.

3. Skilled and well-trained work team.

4. Provided competitive price and serious quality control.

5. Passed GB/T19001-2008/ISO9001:2008 certification.

About Shanghai Xieneng spring co.,ltd.:

Shanghai Xieneng Spring Co., Ltd. is a new hi-tech enterprise that acts as both manufacturer and exporter from 2000. In recent years, our company is supported by Huazhong University of Science & Technology, and established a new products research and development center which develops the new products in order to meet market's demands constantly.

We are specialized in all kinds of carbon and stainless steel springs as well as all kinds of heat treatment steel strips. Our products are widely used in various kinds of appliances, such as tool equipment, timers, toys, etc.

In June 2006, our company was approved by ISO9001 System. We always follow the principles of "Quality First" and abide by the contract.

We will work with rigorous scientific attitude, the steady and sure style of work, tide of the fight economic globalization, market-oriented, regarding innovating for motive force, with talents as the core, excellent management, in order to actualize the leap two times of the company. We sincerely wish cooperate with customers both from home and abroad, create the beautiful future together.

HIGH QUALITY    FAST SERVICE

BEST PRICE       FREE SAMPLE

Welcome YOU!

Welcome OEM!

Some pictures of spiral spring & our factory:
