230mm Hot Pressed Diamond Cutting Disc

FOB Price

US$ 1 - 70.99 / Piece

100 Pieces(Min. Order)

Port Shanghai / Ningbo Port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China	Brand Name	SEB Tools
Model Number	SEB-DSB-0029	Blade Material	Diamond
Finishing	Other, Painted.	Size	100mm to 1600mm

Product Description

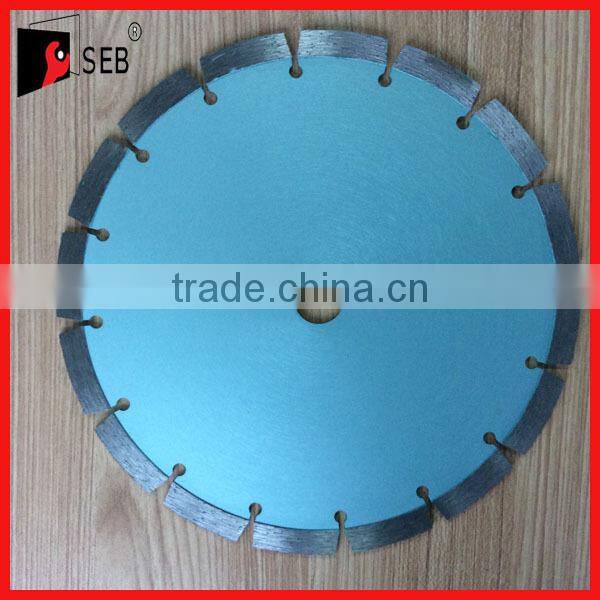

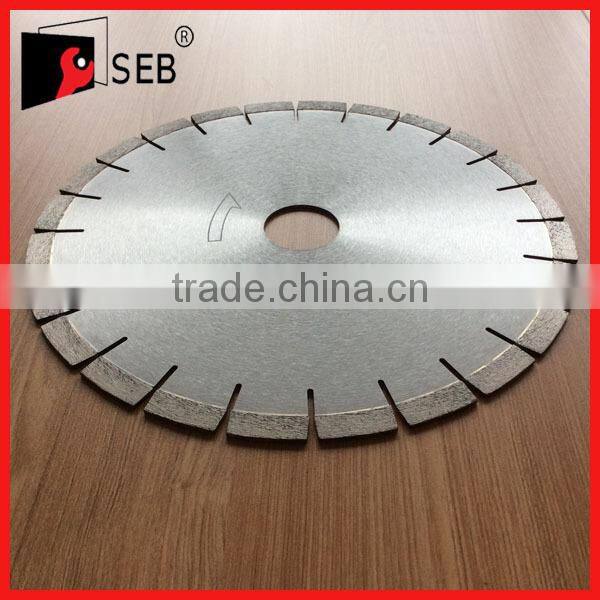

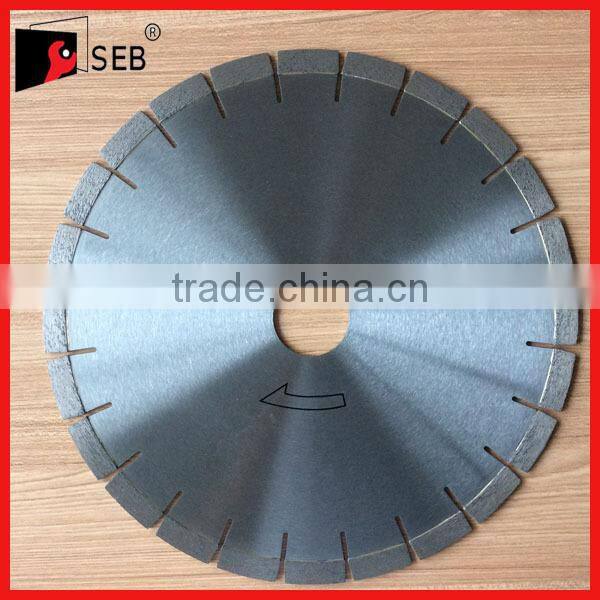

230mm hot pressed diamond cutting disc

1 230mm hot pressed diamond cutting disc , We adopt unique formula for different hardness concrete.

2. We have strict quality control system, to ensure quality stable.

3. Our saw blade have long life with sharpness in a reasonable price. We can adjust our sharpness according to the customer's specific requirements

4. Our product can reduce cutting friction a lot, improve slab flatness, save energy.

5. We use high-frequency and Laser Welded welding and hot pressed .

6.diameter:4''-18''

craft:laser welded high frequency welded sintered hot pressed and cold pressed eletroplated

Type:dry type wet type turbo type prodective teeth type

type: general blade and professional blade for granite marble concrete tile stone brick

7. Our regular sizes of diamond saw blades for masonry material are as follows:

dry type
Application:Used for cutting granite, marble, bricks, concrete and other stones.
Diameter (D)		Bore(H)	Thickness	Segment Size			Segment No.
Inch	MM	Bore(H)	Thickness	(T)	(H)	(L)	Segment No.
4"	105	16/20/22.23	1.2	1.8	7	35	8
4.3"	110	16/20/22.23	1.4	1.9	7	32.3	9
4.5"	115	20/22.23	1.4	1.9	7	38.3	8
5"	125	20/22.23	1.4	1.9	7	37.5	9
6"	150	20/22.23	1.4	1.9	7	33.5	12
7"	180	22.23/25.4/30	1.6	2.2	7	35	14
8"	200	22.23/25.4/30/50	1.8	2.4	7	39.2	14
9"	230	22.23/25.4/30/50	1.8	2.4	7.2	34.4	16/18
10"	250	22.23/25.4/30/50	2.2	3	7.5	37	16/18
12"	300	22.23/25.4/30/50	2.2	3.2	7.5	35	22
14"	350	22.23/25.4/30/50	2.2/2.4	3.2	7.5	40	24

Continuous Rim Diamond Blade
Application:Used for cutting granite, marble,Porcelain and other stones, with WET cutting.

Diameter (D)		Bore		Segment Height	Segment Thickness
Inch	MM	Inch	MM	Segment Height	Segment Thickness
4"	105	5/8" 7/8"	16/20/22.23	7/10	1.8
4.3"	110	5/8" 7/8"	16/20/22.23	7/10	1.8
4.5"	115	7/8"	22.23	7/10	1.9
5"	125	7/8"	22.23	7/10	1.9
6"	150	7/8"	22.23	7/10	2
7"	180	7/8"/1	22.23/25.4	7/10	2.2
8"	200	7/8"/1	22.23/25.4	7/10	2.4
9"	230	7/8"/1	22.23/25.4	7/10	2.4
10"	250	7/8"/1-1/5"/2"	22.23/25.4/30/50	7/10	3
12"	300	7/8"/1-1/5"/2"	22.23/25.4/30/50	7/10	3.2
14"	350	7/8"/1-1/5"/2"	22.23/25.4/30/50	7/10	3.2
16"	400	7/8"/1-1/5"/2"	22.23/25.4/30/50	7/10	3.4

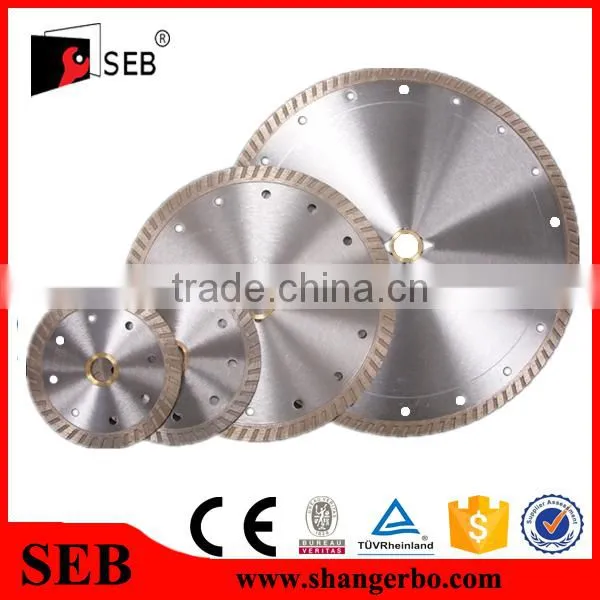

Strength Turbo Diamond Blade
Application:Used for cutting granite, marble,Porcelain and other stones, with WET cutting.
Diameter (D)		Bore		Segment Height	Segment Thickness
Inch	MM	Inch	MM	Segment Height	Segment Thickness
4"	105	5/8" 7/8"	16/20/22.23	7/10/12	2
4.3"	110	5/8" 7/8"	16/20/22.23	7/10/12	2
4.5"	115	7/8"	22.23	7/10/12	2.2
5"	125	7/8"	22.23	7/10/12	2.3
6"	150	7/8"	22.23	7/10/12	2.2
7"	180	7/8"/1	22.23/25.4	7/10/12	2.4
8"	200	7/8"/1	22.23/25.4	39367	2.6
9"	230	7/8"/1	22.23/25.4	7.5/10/12	2.8
10"	250	7/8"/1-1/5"/2"	22.23/25.4/30/50	7.5/10/12	3
12"	300	7/8"/1-1/5"/2"	22.23/25.4/30/50	8/10/12	3.2
14"	350	7/8"/1-1/5"/2"	22.23/25.4/30/50	8/10/12	3.4
16"	400	7/8"/1-1/5"/2"	22.23/25.4/30/50	8/10/12	3.6×8.0

Packing

I am Jane jia from Shanghai ShangErBo Import & Export Co., Ltd.

Our company is a professional hardware manufacture and exporter.

We can supply a wide range of products and majored in saw blade ,drill bits as well as fastener.

Our goods are popular in many countries because of best quality and competitive price.

My skype:jiaying19911

My Tel:+8613476292947

You can contact me anytime
