Concrete Grinding Wheel for Angle Grinder

FOB Price

US$ 1 - 970 / Piece

300 Pieces(Min. Order)

Port Shanghai/Ningbo
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China	Brand Name	SEB
Model Number	SEB-DCW10168	Shape	Cup-Shaped
Abrasive	Diamond	Bonding Agent	Metal
Hardness	Rough, Medium, Smooth	Viscosity	customized
Size	105mm,115mm,125mm,150mm,180mm,200mm,230mm,250mm, 105mm,115mm,125mm,150mm,180mm,200mm,230mm,250mm

Product Description

concrete grinding wheel for angle grinder

Description of diamond grinding wheel:

1 Diamond grinding wheels are mainly used for grinding and polishing removal, deburring, chamfering, smoothing and shaping stone products such as Granite ,Marble, Sandstone, Limestone, etc aggressively material smooth finish.Also Ideal for Grinding Concrete Porcelain tiles, masonry, artificial stone surfaces as well as stock removal.

A double row of diamonds rims on these blades provides for heavy material removal and provides longer life.

2.Including single row,double row and turbo styles.

3. Fast cutting with minimal dust ,used dry or wet grinding.

4.High working efficiency and using easily .

5.Convenient installation with universal connection.

6.Low-noise,no-dust,friendly surroundings,safety operation.

7.long working life and hardness

8.We can make the customers' logo.

Specification of diamond grinding wheel:

Application	Diameter	Segment Height (mm)	Segment Thickness(mm)	Segment No.	Arbor (mm)
Single row diamond grinding wheel	105mm(4")	5	7	8	M14,5/8"-11,22.23
	115mm(4.5")	5	7	9	M14,5/8"-11,22.23
	125mm(5")	5	7	10	M14,5/8"-11,22.23
	150mm(6")	5	7	12	M14,5/8"-11,22.23
	180mm(7")	5	7	14	M14,5/8"-11,22.23

Application	Diameter	Segment Height (mm)	Segment Thickness(mm)	Segment No.	Arbor (mm)
Double row diamond grinding wheel	105mm(4")	5	7	16	M14,5/8"-11,22.23
	115mm(4.5")	5	7	18	M14,5/8"-11,22.23
	125mm(5")	5	7	20	M14,5/8"-11,22.23
	150mm(6")	5	7	24	M14,5/8"-11,22.23
	180mm(7")	5	7	28	M14,5/8"-11,22.23

Application

Diameter

Segment Height (mm)

Segment

Width(mm)

Segment No.

Arbor

(mm)

Turbo diamond grinding wheel

105mm(4")

Turbo

M14,5/8"-11,22.23

125mm(5")

Turbo

M14,5/8"-11,22.23

Different types of diamond grinding wheel:

1. Single Row diamond grinding wheel:

For general grinding applications in both concrete and masonry. Available threaded or non threaded in White or Red grades.

SINGLE ROW FOR FASTER/MORE AGRESSIVE GRINDING OF CONCRETE & MASONRY APPLICATIONS

2. Double Row diamond grinding wheel:
Designed for heavy duty material removal and steep slope grinding of concrete and masonry. Available threaded or non threaded in White and Red grades.

3. Turbo diamond grinding wheel:
The sintered turbo cups are engineered to grind granite, hard stone & refractory. Available in Coarse, Medium and Fine grit, threaded or non threaded.

4. Turbo Wide Spaced diamond grinding wheel:
The turbo wide spaced cups are designed for fast grinding speed in both concrete or masonry. Available threaded or non threaded.

5. Turbo Fan diamond grinding wheel:
The turbo fan design allows for quick grinding in concrete and granite. Available in both threaded and non threaded cups.

6. PCD diamond grinding wheels:
Polycrystalline Diamond grinding cup wheels are widely used in many grinding applications such as removal of epoxy, glue, resin and paint, from concrete coated floors.

7. T segment Diamond grinding wheel:
The engineered "T" shaped segment allows for smooth grinding performance in many applications such as cured concrete, brick, block and a number of other hard materials.

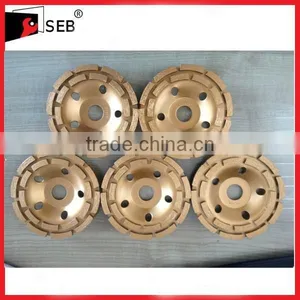

Pictures of diamond grinding wheel:
