T-seg Diamond Cup Wheel for Dry/wet Use

FOB Price

US$ 0.1 - 98 / Piece

300 Pieces(Min. Order)

Port Shanghai/Ningbo
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China	Brand Name	SEB
Model Number	SEB-DCW98	Shape	Cup-Shaped
Abrasive	Diamond	Bonding Agent	Metal
Hardness	Rough, Medium, Smooth	Viscosity	customized
Size	105mm,115mm,125mm,150mm,180mm,200mm,230mm,250mm

Product Description

T-seg diamond cup wheel for dry/wet use

Discription of diamond cup wheels:

For aggressive material removal Large grinding segments with heat treated steel bodies help increase durability and wheel life

This grinding cup wheel diamond coating is great for any kind of masonry grinding, marble, tile, concrete and rock.

Diamond Cup wheel design is great for heavy-duty masonry materials removal.

Cup Wheels are designed to be used on small and large angle grinders. They are designed with an optimized cutting matrix.

The high diamond concentration and quality provides a faster cut rate, longer blade life and high performance.

Specification of diamond cup wheels:

Application	Diameter	Segment Height (mm)	Segment Thickness(mm)	Segment No.	Arbor (mm)
Single row diamond grinding cup wheel	105mm(4”)	5	7	8	M14,5/8”-11,22.23
	115mm(4.5”)	5	7	9	M14,5/8”-11,22.23
	125mm(5”)	5	7	10	M14,5/8”-11,22.23
	150mm(6”)	5	7	12	M14,5/8”-11,22.23
	180mm(7”)	5	7	14	M14,5/8”-11,22.23

Application	Diameter	Segment Height (mm)	Segment Thickness(mm)	Segment No.	Arbor (mm)
Double row diamond grinding cup wheel	105mm(4”)	5	7	16	M14,5/8”-11,22.23
	115mm(4.5”)	5	7	18	M14,5/8”-11,22.23
	125mm(5”)	5	7	20	M14,5/8”-11,22.23
	150mm(6”)	5	7	24	M14,5/8”-11,22.23
	180mm(7”)	5	7	28	M14,5/8”-11,22.23

Application

Diameter

Segment Height (mm)

Segment

Width(mm)

Segment No.

Arbor

(mm)

Turbo diamond grinding wheel

105mm(4”)

Turbo

M14,5/8”-11,22.23

125mm(5”)

Turbo

M14,5/8”-11,22.23

Different types of diamond cup wheel:

Grinding Cup Wheels

Single Row diamond cup wheel:
For general grinding applications in both concrete and masonry. Available threaded or non threaded in White or Red grades.

SINGLE ROW FOR FASTER/MORE AGRESSIVE GRINDING OF CONCRETE & MASONRY APPLICATIONS

Double Row diamond cup wheel: Designed for heavy duty material removal and steep slope grinding of concrete and masonry. Available threaded or non threaded in White and Red grades

		Turbo diamond cup wheel: The sintered turbo cups are engineered to grind granite, hard stone & refractory. Available in Coarse, Medium and Fine grit, threaded or non threaded.

Turbo Wide Spaced cup wheel:
The turbo wide spaced cups are designed for fast grinding speed in both concrete or masonry. Available threaded or non threaded

		Turbo Fan cup wheel: The turbo fan design allows for quick grinding in concrete and granite. Available in both threaded and non threaded cups.

Continuous Rim cup wheel:
The continuous rim design is available in a variety of grit sizes for just the right finish required when grinding granite, marble and stone

PCD Grinding Cups:
Polycrystalline Diamond grinding cup wheels are widely used in many grinding applications such as removal of epoxy, glue, resin and paint, from concrete coated floors.

T Grinding Cup:
The engineered “T” shaped segment allows for smooth grinding performance in many applications such as cured concrete, brick, block and a number of other hard materials.

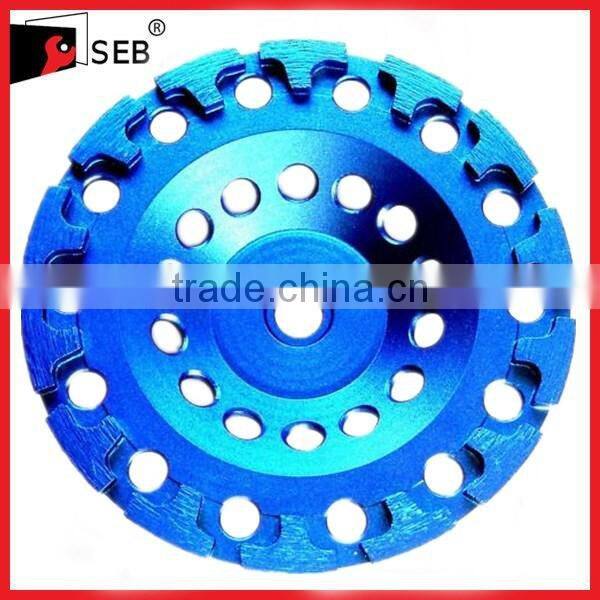

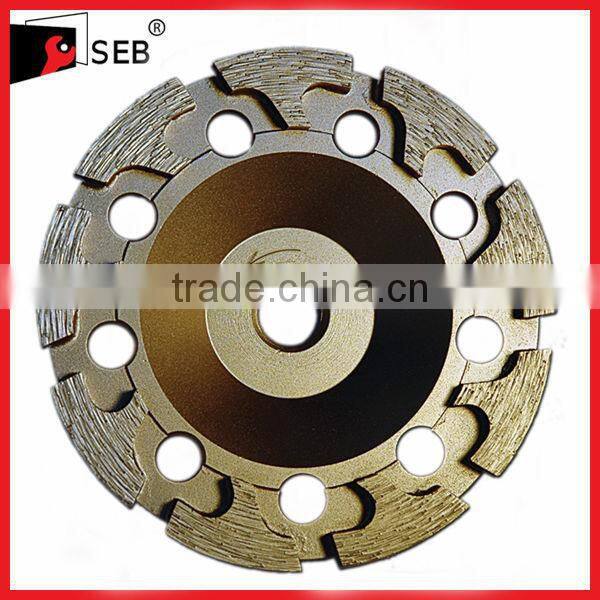

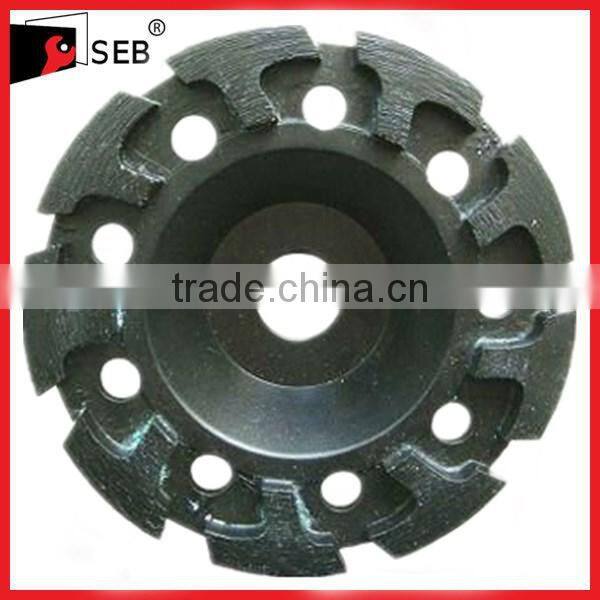

Pictures of diamond cup wheels:
