Home > Tools & Hardware > Abrasive & Grinding > Grinding Wheel > Fan Diamond Turbo Cup Wheels

Fan Diamond Turbo Cup Wheels

US$ 0.1 - 85 MOQ: 300 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

SEB

Model Number:

SEB-DCW10141

Contact Supplier Request Quote Chat Now

Shanghai Shangerbo Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name SEB

Model Number SEB-DCW10141

Shape Cup-Shaped

Abrasive Diamond

Bonding Agent Metal

Hardness Rough, Medium, Smooth

Viscosity customized

Size 105mm,115mm,125mm,150mm,180mm,200mm,230mm,250mm

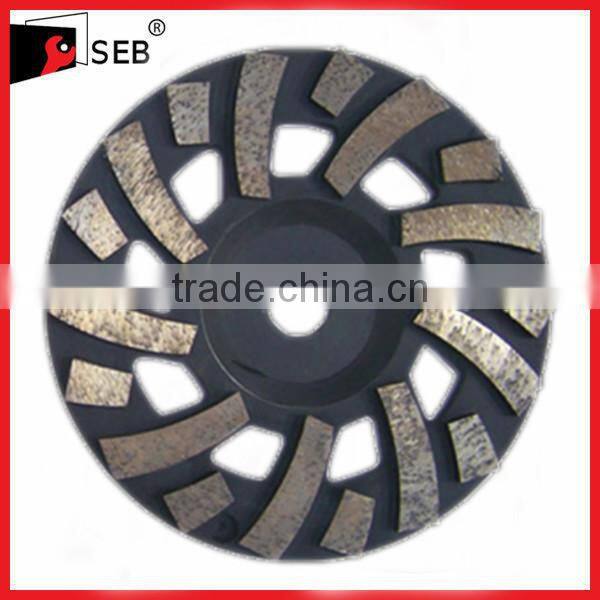

Fan Diamond Turbo Cup Wheels

Discription of Fan Turbo cup wheel:

Fan Diamond Turbo Cup Wheels are brazed with a high diamond count for long wheel life. Their aggressive L shaped segments are specifically engineered for the removal of Thick Coatings of Epoxy, Mastic, Urethane & other membrane materials from Concrete. These premium quality fan cups feature a 5 mm segment height, high quality diamond content, and a medium bond to ensure lasting life. A staggered pattern design of the segments and cooling holes allow the cup to remove debris from the surface of the concrete without buildup. The Fan cup wheels are available in 7″ diameter both threaded and non-threaded for muliple applications.

Specification of fan turbo cup wheel:

Application	Diameter	Segment Height (mm)	Segment Thickness(mm)	Segment No.	Arbor (mm)
Single row diamond grinding cup wheel	105mm(4”)	5	7	8	M14,5/8”-11,22.23
	115mm(4.5”)	5	7	9	M14,5/8”-11,22.23
	125mm(5”)	5	7	10	M14,5/8”-11,22.23
	150mm(6”)	5	7	12	M14,5/8”-11,22.23
	180mm(7”)	5	7	14	M14,5/8”-11,22.23

Application	Diameter	Segment Height (mm)	Segment Thickness(mm)	Segment No.	Arbor (mm)
Double row diamond grinding cup wheel	105mm(4”)	5	7	16	M14,5/8”-11,22.23
	115mm(4.5”)	5	7	18	M14,5/8”-11,22.23
	125mm(5”)	5	7	20	M14,5/8”-11,22.23
	150mm(6”)	5	7	24	M14,5/8”-11,22.23
	180mm(7”)	5	7	28	M14,5/8”-11,22.23

Application

Diameter

Segment Height (mm)

Segment

Width(mm)

Segment No.

Arbor

(mm)

Turbo diamond grinding wheel

105mm(4”)

Turbo

M14,5/8”-11,22.23

125mm(5”)

Turbo

M14,5/8”-11,22.23

Different types of diamond cup wheel:

Grinding Cup Wheels

Single Row diamond cup wheel:
For general grinding applications in both concrete and masonry. Available threaded or non threaded in White or Red grades.

SINGLE ROW FOR FASTER/MORE AGRESSIVE GRINDING OF CONCRETE & MASONRY APPLICATIONS

Double Row diamond cup wheel: Designed for heavy duty material removal and steep slope grinding of concrete and masonry. Available threaded or non threaded in White and Red grades

		Turbo diamond cup wheel: The sintered turbo cups are engineered to grind granite, hard stone & refractory. Available in Coarse, Medium and Fine grit, threaded or non threaded.

Turbo Wide Spaced cup wheel:
The turbo wide spaced cups are designed for fast grinding speed in both concrete or masonry. Available threaded or non threaded

		Turbo Fan cup wheel: The turbo fan design allows for quick grinding in concrete and granite. Available in both threaded and non threaded cups.

Continuous Rim cup wheel:
The continuous rim design is available in a variety of grit sizes for just the right finish required when grinding granite, marble and stone

PCD Grinding Cups:
Polycrystalline Diamond grinding cup wheels are widely used in many grinding applications such as removal of epoxy, glue, resin and paint, from concrete coated floors.

T Grinding Cup:
The engineered “T” shaped segment allows for smooth grinding performance in many applications such as cured concrete, brick, block and a number of other hard materials.

Pictures of diamond cup wheels:
