Home > Tools & Hardware > Abrasive & Grinding > Grinding Wheel > Sintered Single Row Diamond Grinding Cup Wheel

Sintered Single Row Diamond Grinding Cup Wheel

US$ 0.1 - 88 MOQ: 300 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

SEB

Model Number:

SEB-DCW88

Contact Supplier Request Quote Chat Now

Shanghai Shangerbo Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name SEB

Model Number SEB-DCW88

Shape Cup-Shaped

Abrasive Diamond

Bonding Agent Metal

Hardness Rough, Medium, Smooth

Viscosity customized

Size 105mm,115mm,125mm,150mm,180mm,200mm,230mm,250mm

Sintered Single Row Diamond Grinding Cup Wheel

Discription of diamond cup wheels:

For aggressive material removal Large grinding segments with heat treated steel bodies help increase durability and wheel life

This grinding cup wheel diamond coating is great for any kind of masonry grinding, marble, tile, concrete and rock.

Diamond Cup wheel design is great for heavy-duty masonry materials removal.

Cup Wheels are designed to be used on small and large angle grinders. They are designed with an optimized cutting matrix.

The high diamond concentration and quality provides a faster cut rate, longer blade life and high performance.

Specification of diamond cup wheels:

Application	Diameter	Segment Height (mm)	Segment Thickness(mm)	Segment No.	Arbor (mm)
Single row diamond grinding cup wheel	105mm(4”)	5	7	8	M14,5/8”-11,22.23
	115mm(4.5”)	5	7	9	M14,5/8”-11,22.23
	125mm(5”)	5	7	10	M14,5/8”-11,22.23
	150mm(6”)	5	7	12	M14,5/8”-11,22.23
	180mm(7”)	5	7	14	M14,5/8”-11,22.23
	230mm(9")	5	7	18	M14,5/8”-11,22.23

Application	Diameter	Segment Height (mm)	Segment Thickness(mm)	Segment No.	Arbor (mm)
Double row diamond grinding cup wheel	105mm(4”)	5	7	16	M14,5/8”-11,22.23
	115mm(4.5”)	5	7	18	M14,5/8”-11,22.23
	125mm(5”)	5	7	20	M14,5/8”-11,22.23
	150mm(6”)	5	7	24	M14,5/8”-11,22.23
	180mm(7”)	5	7	28	M14,5/8”-11,22.23
	230mm(9")	5	7	36	M14,5/8”-11,22.23

Application	Diameter	Segment Height (mm)	Segment Width(mm)	Segment No.	Arbor (mm)
Turbo diamond grinding wheel	105mm(4”)	5	20	Turbo	M14,5/8”-11,22.23
	115mm(4.5")	5	20	Turbo	M14,5/8”-11,22.23
	125mm(5”)	5	20	Turbo	M14,5/8”-11,22.23
	150mm(6")	5	20	Turbo	M14,5/8”-11,22.23
	180mm(7")	5	20	Turbo	M14,5/8”-11,22.23
	230mm(9")	5	20	Turbo	M14,5/8”-11,22.23

Different types of diamond cup wheel:

Grinding Cup Wheels

Single Row diamond cup wheel:
For general grinding applications in both concrete and masonry. Available threaded or non threaded in White or Red grades.

SINGLE ROW FOR FASTER/MORE AGRESSIVE GRINDING OF CONCRETE & MASONRY APPLICATIONS

Double Row diamond cup wheel: Designed for heavy duty material removal and steep slope grinding of concrete and masonry. Available threaded or non threaded in White and Red grades

		Turbo diamond cup wheel: The sintered turbo cups are engineered to grind granite, hard stone & refractory. Available in Coarse, Medium and Fine grit, threaded or non threaded.

Turbo Wide Spaced cup wheel:
The turbo wide spaced cups are designed for fast grinding speed in both concrete or masonry. Available threaded or non threaded

		Turbo Fan cup wheel: The turbo fan design allows for quick grinding in concrete and granite. Available in both threaded and non threaded cups.

Continuous Rim cup wheel:
The continuous rim design is available in a variety of grit sizes for just the right finish required when grinding granite, marble and stone

PCD Grinding Cups:
Polycrystalline Diamond grinding cup wheels are widely used in many grinding applications such as removal of epoxy, glue, resin and paint, from concrete coated floors.

T Grinding Cup:
The engineered “T” shaped segment allows for smooth grinding performance in many applications such as cured concrete, brick, block and a number of other hard materials.

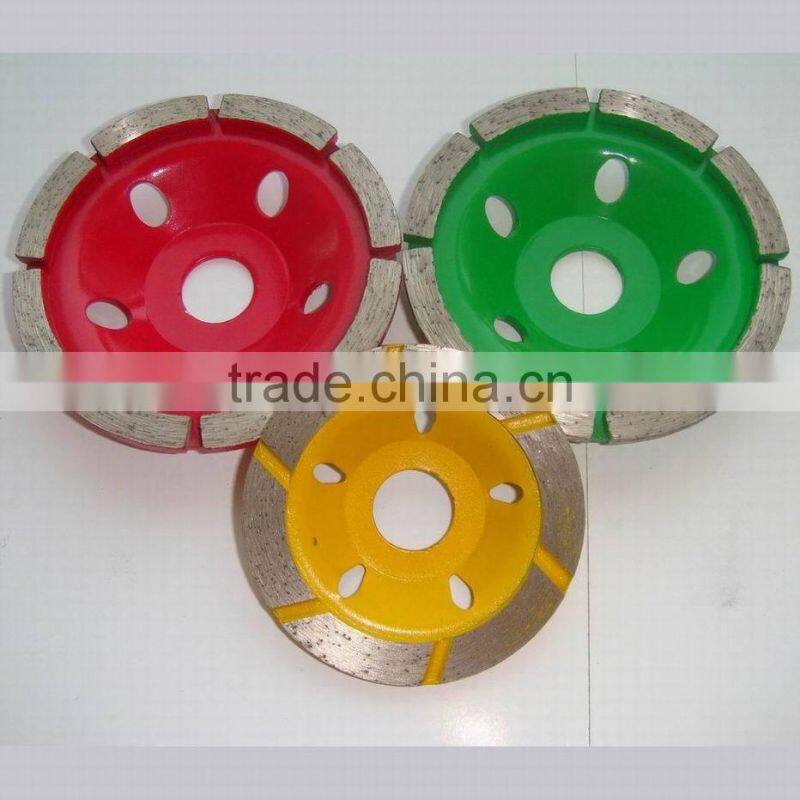

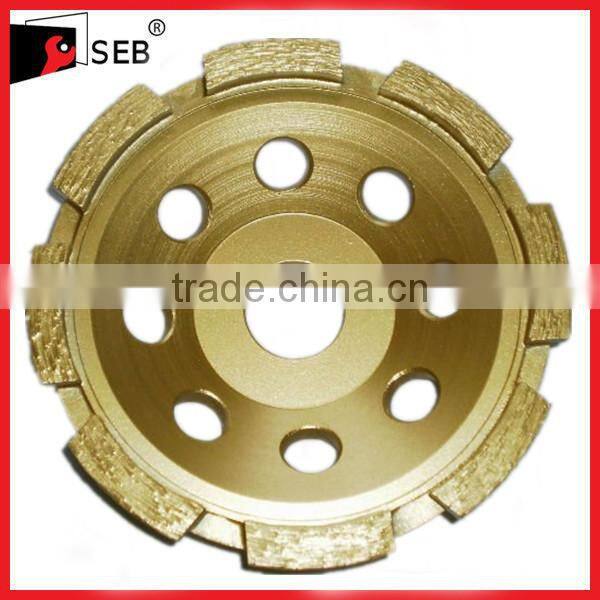

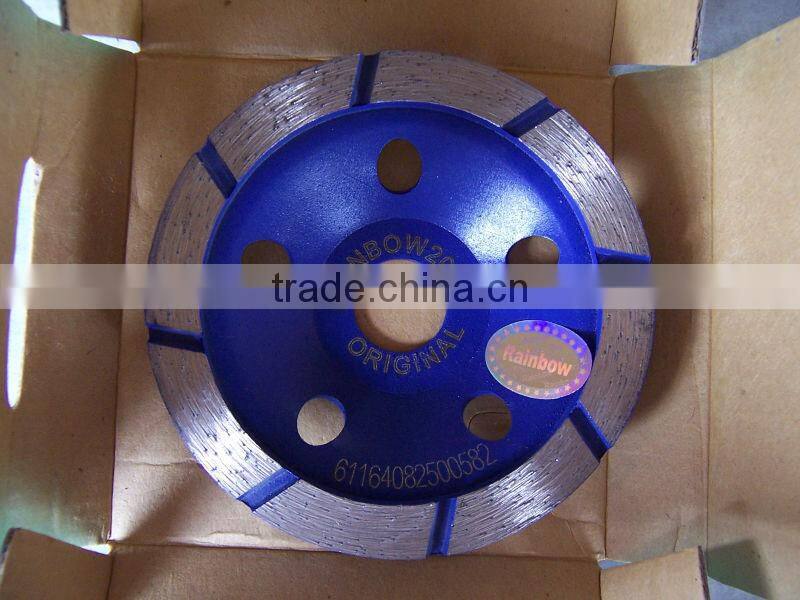

Pictures of diamond cup wheels:
