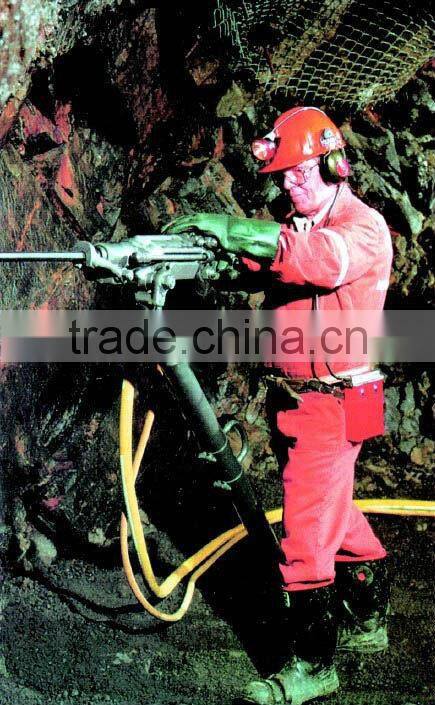

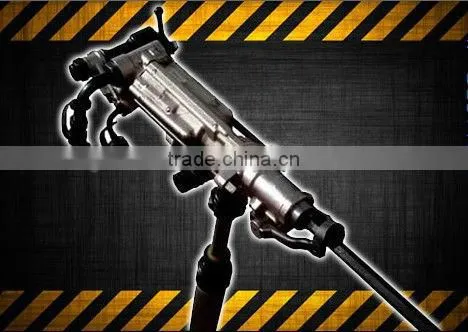

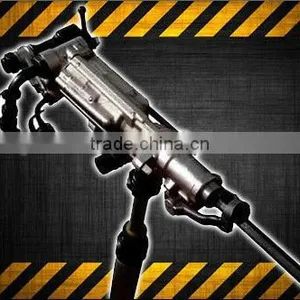

S250 jack leg
- 5000 Piece / Pieces per Month
- fuzhou
- T/T Credit Card
- API-7-1 Standard single cone drill bit
- 6 7 11 12 degree Diameter 32mm Taper Knock off drill bit
- 2"X10 MANGUERA LOOP INTEGRAL MxF FIG.1502 (FMC)15 KSI STD/2"ADAPTADOR INTGRAL FxF FIG.1502 (SSI)15KSI STD
- 2"X10'MANGUERA LOOP INTEGRAL MxF FIG
- downhole tool API Wireline mechanical composite bridge plug
- mechanical bridge plug soluble bridge plug composite bridge plug for well drilling
Product Details
Place of Origin: | Fujian, China | Brand Name: | SECO | Model Number: | S250 |
Type: | Mine Sieving Mesh | Machine Type: | Drilling Equipment | Certification: | ASTM |
Material: | High Manganese Steel | Processing Type: | Forging | Use: | Well Drilling |
Product Description
Specifications
S250 jack legS250 jack leg rock drill spare parts
rifle bar
rifle nut
bush
rachat
postion
air tube connecter
air tube nut
and so on.
Any parts you are interested, Please feel free to contact with me Thank you.
It features:
. Precision leg control and a lightweight design.
. Has optional acoustic buffers that reduce operator fatigue.
. Its simple design and construction requires less frequent servicing than competitive
hand-held drills.
Technical Data
All figures provided have been based on field experience, and may be reasonably expected.
The actual drilling capacity will depend on drilling techniques, equipment used and conditions.
Rockdrill Specifications
Bore 79.4 mm
Stroke 73.25 mm
Weight (c/w leg) 39/ kg
Blows/Minute 2200 @ 6.2 bar
Air Consumption 4.4 m3/ min
Air Connection 1 in BSP
Water Connection ½ in BSP
Leg Thrust 244 kg @ 6.2 bar
Leg Extension - Standard 762 mm
Supply Hose ID
Air 25mm
Water 12mm
Steel Size (Hex)-Chuck End
Standard 42.2 kg
Unmuffled 41.3kg
Noise Emissions
Muffled
Noise Pressure 113.5 dB(A)
Unmuffled:
Noise Pressure 116.0 dB(A)
Power 129.0 dB(A)
