S250 Jackleg Drill Parts C1648 Valve

Specifications

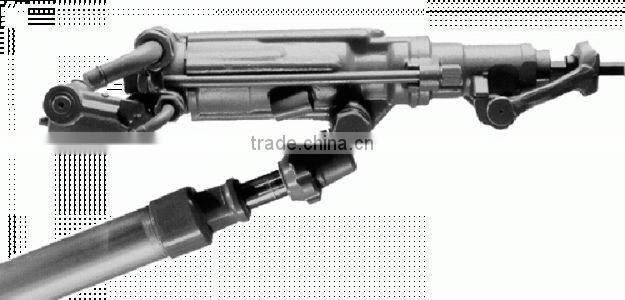

S250 jackleg drill and spare parts

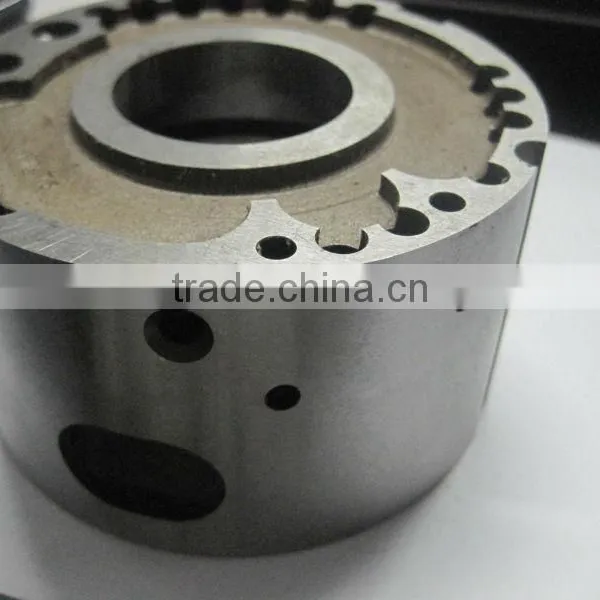

 C1648 valve

rifle bar

rifle nut

bush

rachat

postion

air tube connecter

air tube nut

and so on.

Any parts you are interested, Please feel free to contact with me Thank you.

It features:
. Precision leg control and a lightweight design.
. Has optional acoustic buffers that reduce operator fatigue.
. Its simple design and construction requires less frequent servicing than competitive
  hand-held drills.

Technical Data

All figures provided have been based on field experience, and may be reasonably expected.
The actual drilling capacity will depend on drilling techniques, equipment used and conditions.

Rockdrill Specifications

Bore 79.4 mm
Stroke 73.25 mm
Weight (c/w leg) 39/ kg
Blows/Minute 2200 @ 6.2 bar
Air Consumption 4.4 m3/ min
Air Connection 1 in BSP
Water Connection ½ in BSP
Leg Thrust 244 kg @ 6.2 bar
Leg Extension - Standard 762 mm

Supply Hose ID

Air 25mm
Water 12mm

Steel Size (Hex)-Chuck End

Standard 42.2 kg
Unmuffled 41.3kg

Noise Emissions

Muffled
Noise Pressure 113.5 dB(A)

Unmuffled:
Noise Pressure 116.0 dB(A)
Power 129.0 dB(A)
