Home > Manufacturing & Processing Machinery > Lifting Equipment > Lifting Jack > Hydraulic Power Unit
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
DGSL
Model Number:

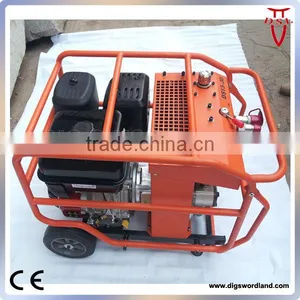

BR40J Hydraulic Power Unit
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU CHINA
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Handheld Hydraulic Breakers for Relief WorkNegotiableMOQ: 1 Piece -
Rock Breaker PriceNegotiableMOQ: 1 Piece
-
Demolition Hammer for Railway MaintenanceNegotiableMOQ: 1 Piece
-
Low Vib Breaker for Railway MaintenanceNegotiableMOQ: 1 Piece
-
Handheld Hydraulic Breakers for Railway MaintenanceNegotiableMOQ: 1 Piece
Place of Origin
Fujian, China
Brand Name
DGSL
Model Number
BR40J Hydraulic Power Unit
Type
Other, Hydraulic Breakers, BR40J Hydraulic Power Unit
Specifications
BR40J Hydraulic Hydraulic Power Unit:-Professional manufacturer
-Cheaper than other suppliers
-Popular in Europ
Hydraulic Manual Rock Breaker Price
Other hydraulic tools:
Product Description
Describe:
1, hydraulic hydraulic hand-hold hammer, high work efficiency, low noise, reliability, small size. widely used in roads, municipal services, gas, electricity telecommunications, railway, fire building industries.
2 with two compact, stainless steel framework and folding handle, a special damping system. Large-capacity hydraulic tank (12 L) cooling effect, and equipped with high-power cooling fan, hydraulic cooling system effective. Similar products can not be resolved for a long time the work of the defect.
3, transparent hydraulic lines can be clearly observed that the pollution of the hydraulic oil, to remind users timely replacement of hydraulic oil and filter.
4, the hydraulic system use the United States PARKER host high-pressure pump gear, the output pressure of up to 210 BAR, the maximum allowed back-pressure up to 17 BAR.
5, applicable to the asphalt, cement roads, reinforced concrete crushing operations, and the diameter of one meter below the volume of broken stone disintegration.
6, technical parameters:
| Gasoline engine hydraulic power units | ||||
| Type | DS-13-30 | DS-18-30 | DS18-40 | DSR23-40 |
| Weight(Kg) | 90 | 120 | 120 | 135 |
| Size(mm) | 780*560*600 | 900x590x740 | 900*590*740 | 1020x610x770 |
| Volume(l/min) | 30 | 20-24 | 30/40 | 2X20/30 or 40 |
| Pressure(Bar) | 155 | 155 | 155 | 115 |
| Engine | Honda13hp or B&S13.5hp (9.6kw) | B&S18hp(13.2kw) | B&S 18hp(13.2kw) | B&S 23hp(17kw) |
| wheel/handle | yes | yes | yes | yes |
| cooling power(hp) | 5 | 5 | 5 | 5 |
| capablity of oil tank(L) | 12 | 12 | 12 | 12 |
| pollution indication | yes | yes | yes | yes |
| Electric engine hydraulic power unit | ||
| Type | ES10-20 | ES15-30 |
| Weight (kg) | 90 | 120 |
| Size (mm) | 800×550×530 | 9000×590×600 |
| Output flow (lpm) | 20 | 20 or 30 |
| Output pressure (bar) | 90-155 | 90-155 |
| Engine | Electrical motor(7.5KW) | Electrical motor(11KW) |
| Volt. | 380V/50HZ | 380V/51HZ |
| Wheel/handle | Yes | Yes |
| Cooling power (hp) | 5 | 5 |
| Capability of oil tank (L) | 12 | 12 |
| Pollution indication | Yes | Yes |
| Hydraulic Breaker | ||||||
| Model | BR40 | BR40J | BR45 | BR45J | BR67 | BR67J |
| Weight(Kg) | 18 | 19 | 20 | 21 | 28 | 29 |
| Output flow(lpm) | 15-24 | 15-24 | 26-34 | 26-34 | 26-34 | 26-34 |
| Work pressure (Bar) | 90-140 | 90-140 | 105-140 | 105-140 | 105-140 | 105-140 |
| Impact frequency(Bpm) | 1800-2400 | 1800-2400 | 1800-2400 | 1800-2400 | 1800-2400 | 1800-2400 |
| Hammer shank size(in. Hex) | 1*4-1/4 | 1*4-1/4 | 1*4-1/4 | 1*4-1/4 | 1-1/4*6 | 1-1/4*6 |
| Handle type | T size handle | Anti-shake handle | T size handle | Anti-shake handle | T size handle | Anti-shake handle |
DS13-30:
DS18-30:
DS18-40
ES15-30:
Breaker:
