Pneumatic Pick Scale Hammer B87c
- Fuzhou or Other ports in China(mainland)
- T/T
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | DSL | |
| Model Number | B87C | Type | Air Hammer | |
| Average Air Consumption | ≤55L/S | Maximum Torque | None (Impact Hammer) | |
| No-Load Speed | None (Impact Hammer) |
Product Description

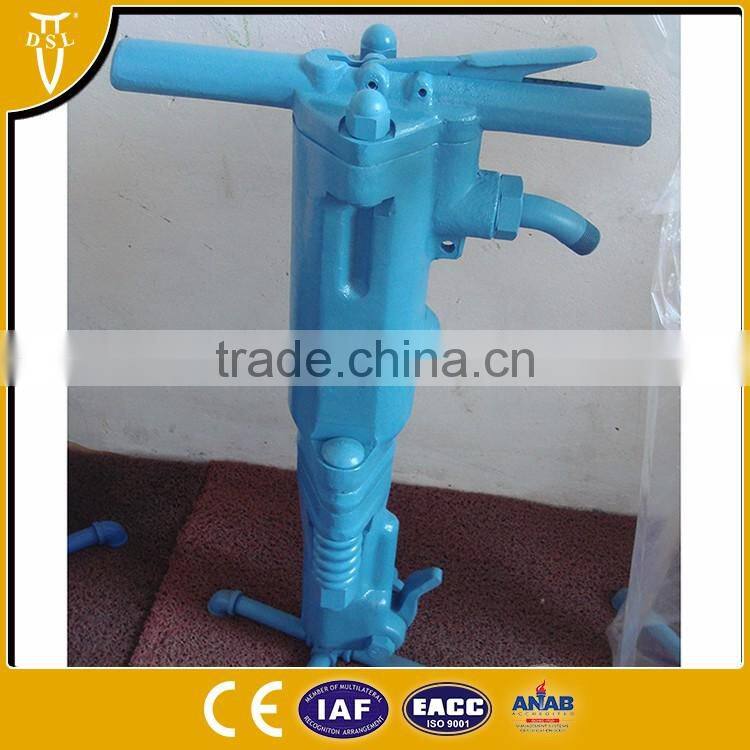

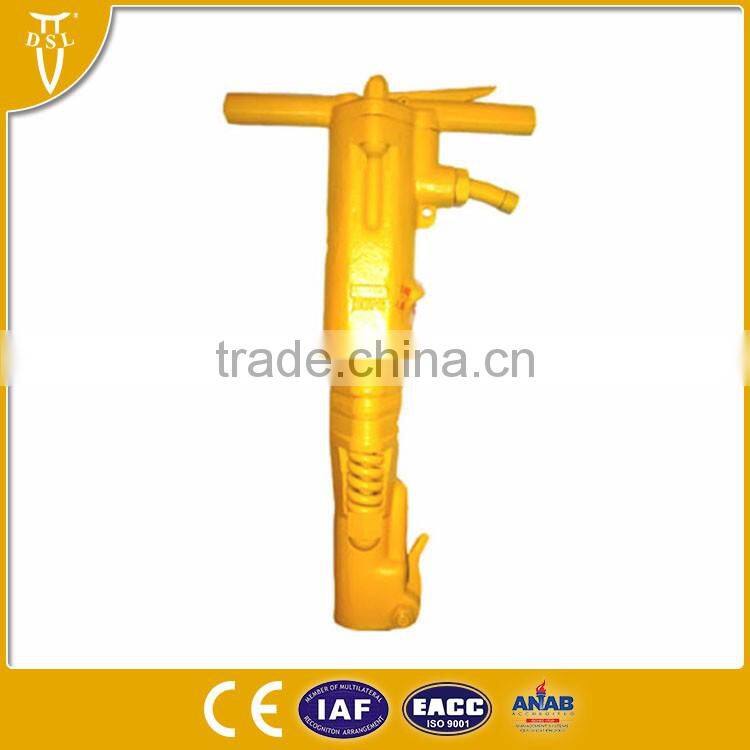

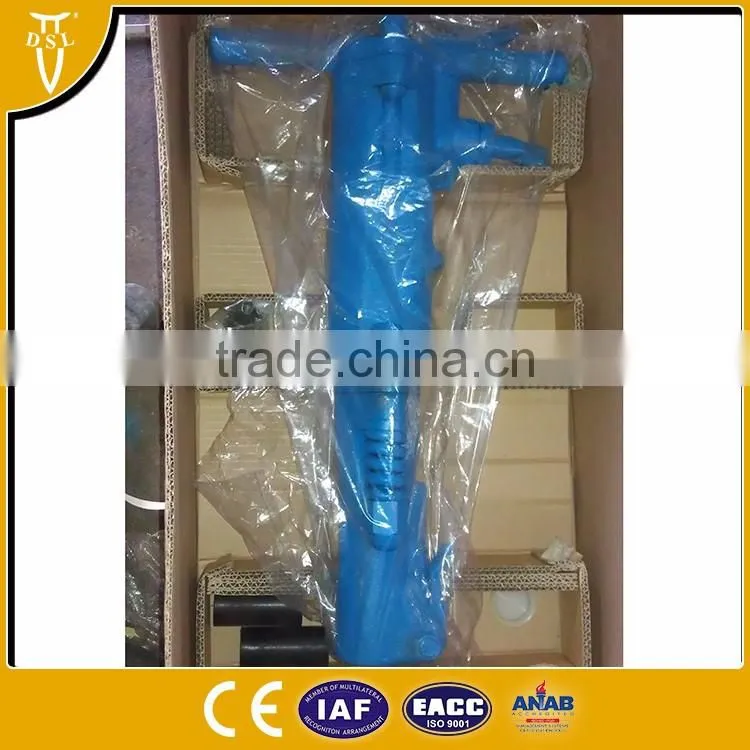

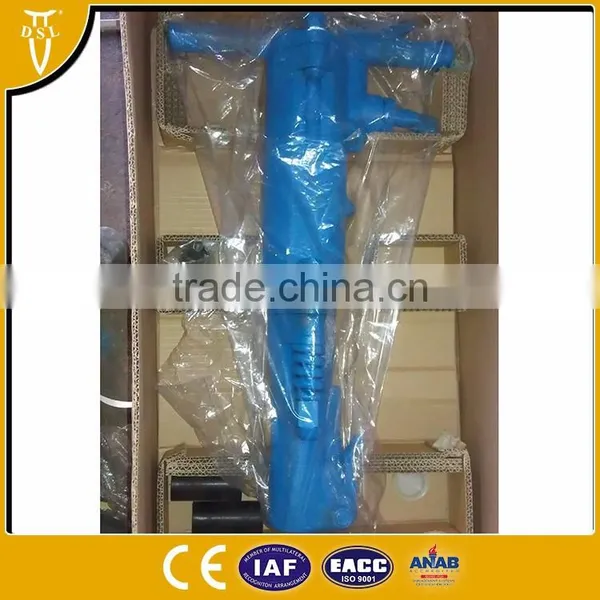

Pneumatic Pick Scale Hammer B87c
B87C jack hammer is mainly used in mining secondary breaking, it is also widely used in municipal buildings excavated bedrock, demolition concrete structures and crushing frozen soil, remediation various concrete structures such as pavement and subgrade
It’s a type of compressed air-powered tools. When work, the compressed air distribute alternatively through distributing valve into either end of the cylinder.
That make the hammer inside doing reciprocating motion to impact the shank of steel rod. The steel rod chisel into the concrete foundation and then break the concrete into many pieces.
| Weight | 39kg |
| Length | 686mm |
| Cylinder dia. | 63.5mm |
| Working pressure | 0.63Mpa |
| Impact energy | 100+/-10% J |
| Impact power | 1.8+/- 10% KW |
| Impact frequency | 18+/- 5% HZ |
| Air consumption | 55+/- 15% L/S (3.3+/-15%m³/min) |
| Air pipe inner dia. | 19mm (3/4inch) |
| Shank size | 32*152mm (1-1/4*6inch) 32*160mm(1-1/4*6.3inch) |
