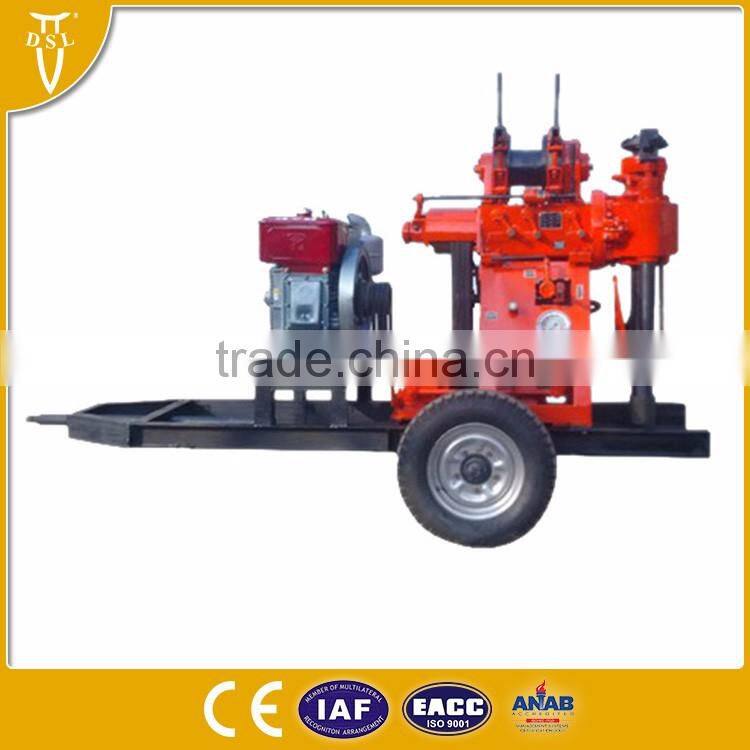

Movable Core Machine Diamond Core Drill
USD $7,500 - $15,000
/ Set
1 Set(Min.Order)
- 50 Set / Sets per Month
- Fuzhou or Other ports in China(mainland)
- T/T
You May Like
-
Gold mining jaw crusher equipment for sale, stone crusher machine
-
First-rate high efficiency SZZ series self-centering vibrating screen with ISO 9001 Certificate
-
China leader manufacturer ZHAOXIN high efficiency thickener
-
Ore benefication thickener machine, dewatering thickener price
-
china high quality center drive thickener, thickening equipment
-
Shandong Province high efficiency center drive thickener NZ-12, thickening machine
Product Details
| Place of Origin: | Fujian, China | Brand Name: | DSL | Model Number: | XY-150 |
| Condition: | New | After-sales Service Provided: | No overseas service provided |
Product Description
Movable Core Machine Diamond Core Drill
Product Description
Geology general check exploration, Earth physics exploration,Road and hihg layer buiding ground survey,Well,last opening et cetera drilling engineering
| MODEL | XY-150 |
| 1. Unity machine parameter | |
| Drilling depth | 150m |
| Maximum open hole caliber | 400mm |
| End hole caliber | 75mm |
| Drill rod caliber | 50mm |
| Drilling angle | 90~75 |
| Drill weight (No include power) | 760kg |
| Unity machine dimensions | 2*1*1.4m |
| 2. Spindle | |
| Spindle speed | 140.295.470.790.1010r/min |
| Spindle stroke | 450mm |
| 3. Hoist | |
| Max.single line hoisting capacity | 1600kg |
| Tightrope caliber | 12mm |
| Tightrope cubic measure | 35mm |
| Hug floodgate caliber | 245mm |
| Hug floodgate belt width | 70mm |
| 4. Mud pump | |
| Type | Horizontal single urn twin-action |
| Displacement | 95/77L/min |
| Maximum pressure | 1.2Mpa |
| Work pressure | 0.7Mpa |
| Water inlit caliber | 50mm |
| Water to exit caliber | 42mm |
| 5. Power | |
| Diesel engine | 18HP |
| Speedlimit | 2200r/min |
| Electric motor | 11kw |
| Speedlimit | 1460r/min |
