YN27C pionjar 120 jack hammer :1.Professional Manufacturer
2.CE/ISO9001
3.Multiple functions
4.Best price
Powerful Pionjar 120 jack hammer For Mine

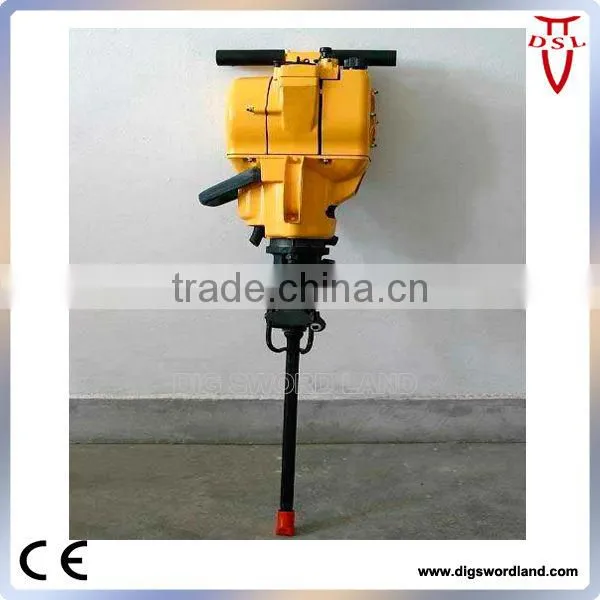

YN27C Gasoline Rock Drilling a very efficient machine,composed of gasoline engine, Air pump, rock drill. It adapt to these outside situations without water and electronic power. Meanwhile it is a hand- held drill, during operation,rock power is blown away by the compressed air produced by the machine itself. .Its suited to work on high mountains, plains, hot and cold area with no power and no water supply and air compressing equipments, and especially suits the projects that the machine has to be carried at any time and in any area.
Features:
1. Easy to operate
2. Time and labor saving, Drilling fast and high efficiency.
3. has wide adaptability for high mountain and plain, extreme temperature (40 to -40)
4. Used for vertical downward hole (max depth 6m) and and <45°upward hole.
5. Light Weight, only 27kgs, easy for carrying
Specifications
| Weight of main machine | 27kg |
| Overall dimensions(L*W*H) | 746*315*229mm |
| Cylinder diameter*stroke of piston | Φ58*70mm |
| Rotation speed of engine | ≥2450rpm |
| Displacement of engine piston | 185cm³ |
| Type of carburetor | hand needle valve, floatless type |
| Ignition system | controllable silicon, contactless system |
| Drilling speed (mean value of five holes) | ≥250mm/min |
| Drilling hole diameter | Φ28-42mm |
| Max drilling depth | 6m |
| Fuel consumption | ≤0.12L/m |
| Tank capacity | ≥1.5liter |
| Drill rod and breaker shank | Hex22*108mm |
| Rotating speed of drill rod | ≥200rounds/min |
| Clearance of spark plug | 0.5-0.7mm |
Photos:
Spare Parts:
Small Catalogues:
Welcome to enquiry ,we have many kinds of jack hammer ~~~
