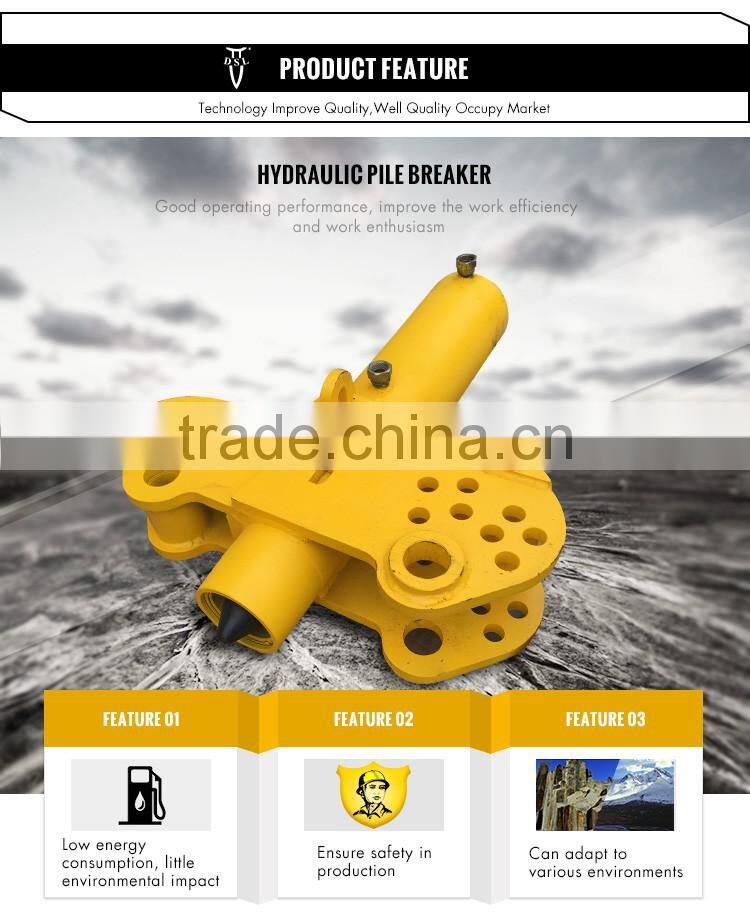

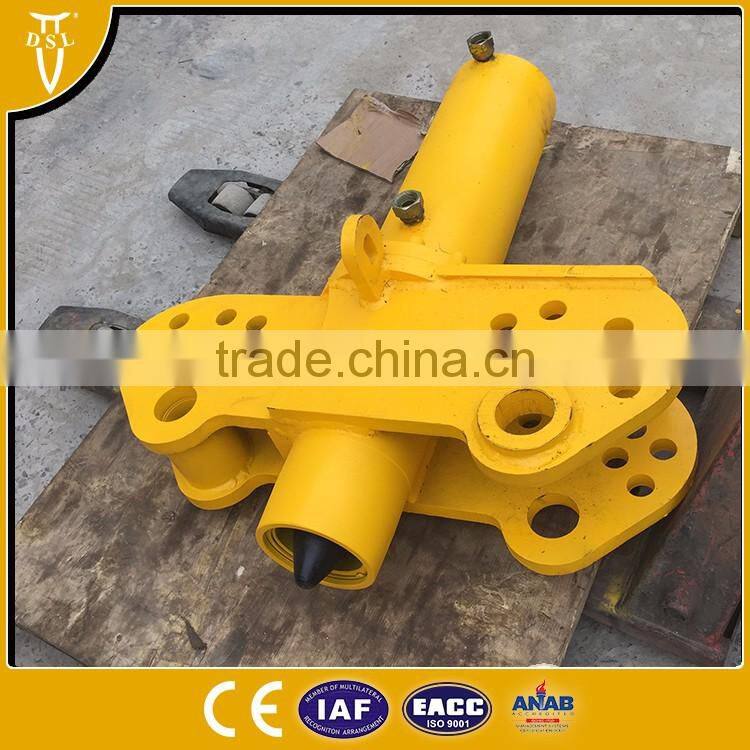

Hydraulic Square Pile Breaker
Product advantage
- It is the most advanced pile breaker and can achieve high efficiency, low noise in pile broken.
- It has the advanced modularization and break different diameter pile by different number of modular combination.
- It has high cost performance, low operating cost and its cost performance is nearly the samewith the foreign products.
- It operates easily and don’t need any professional skill, besides, it operates very safely.
- It can be connected to a variety of engineering machinery to make achieve of products’ commonality and economical efficiency. It also can be hanged in the excavators, cranes and telescopic arm, etc.
- High life design can bring you the best benefits.
Working principle:
Hydraulic pile breaker offer its several cylinders oil pressure through power source and cylinder directly drive the chisels and squeeze the pile body at the same time to break the pile. It operates easily and has high effiency, low noise,low cost in the pile cutting construction process, which is suitable for pile group in construction engineering. Hydraulic pile breaker machine adopts highly modular combinations and connect modules through axis pins. It can break piles in certain ranges of diameter by different number of modules combination.
Engineering application scope
Hydraulic pile breaker can break such like cast-in-place piles, precast piles etc. It can be divided into round and square by the pile shape. Our hydraulic pile breaker is widely used in high-speed railway bridges and civil building pile foundation engineering. Normally hydraulic round pile breaker can break pile diameter from600-2140mm and hydraulic square pile breaker is suitable for square pile from 300-650mm. Our machine can meet the requirements of all kinds of large-scale infrastructure construction.
| Pile diameter range | 200-650mm |
| Max.Thrust | 300KN |
| Max.Cylinder Trip | 200mm |
| Max Cylinder pressure | 30MPa |
| Max Cylinder Required | 20L/min |
| Quantity/8h | 100/8h |
| Max.Hoist Capacity | ≤300mm |
| Machinery Tonnage | HPL500S≥7T HPL600S≥15T |
| Cut Pipe Dia | HPL500S:300*300 350*350 400*400 450*450 500*500 550*550 |
| HPL600S:500*500 550*550 600*600 650*650 | |
| Total Weight | HPL500S :0.78T HPL600S :1.2T |
Wireless romote control hydraulic station
(1)Wireless Remoted Control means distance control. There is no connection between remote control and hydraulic station and it ouput and controls the operation of hydraulic station through radio wave which is convenient and swift. Operating range is large:Operation staff can observed object at close range and also can be far away from the dangerous places.
(2)Can be used with pile extractor and pile breaker
| Motor Power | 18.5KW |
| Number Of Poles | 4 Poles |
| Motor Speed | 1450rpm |
| Motor Voltage | 3 phases 380V |
| Pump Rated Capacity | 107L/min |
| System Normal Working Pressure | 25Mpa |
| System Max Working Pressure | 30Mpa |
| Tank Capacity | 400L |
| Solenoid Valve Control Voltage | AC220V |
