Specifications
thread bits rods T45 T51 R32 R381,motor,gasoline,pneumatic,diesel engine
2,high efficient
3,best quality
4,ISO9001&ce

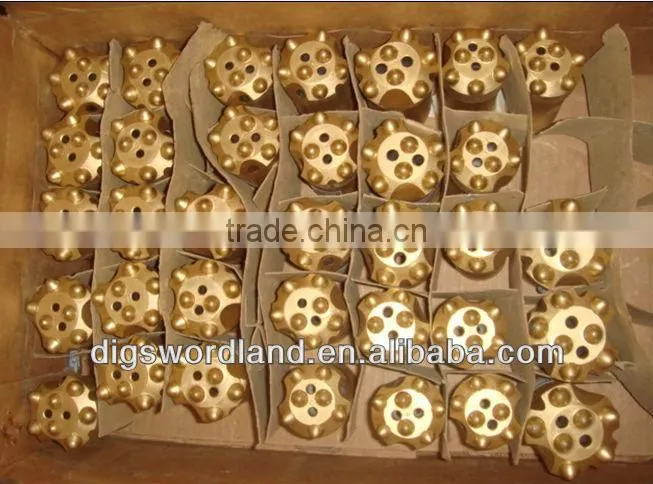

thread bits rods T45 T51 R32 R38
Fuzhou Dig Sword Land Machine Co.,Ltd is the Sino-foreign joint venture which mainly business DSL brand from Digswordland Technology Limited. The enterprise is an industrial supplier which specialized in design, manufacture and sales in worldwide and has owned ten product patent right for RB777, B77C, RB777C, and TCA-7 and so on. My company provided air compressed, construction and mining equipment, also related after-sale services. Now our business has throughout 158 countries and area with good reputation.
My Company has advanced equipment, technology, excellent quality, good Service. We found a full set of CE Quality Certificate and carry out the ISO9001 International Quality System to assure the reliability and stability of our production.
With the best service, creditability and good quality, we continue to develop and would like to work together with existing and new customers to create excellent future.
Chisel bit technology parameter
| Bit Diameter | Buttons | Taper | Water Hole | Part No. | |
| mm | in | mm | |||
| 30 | 1 3/16" | 10*15 | 7° | 2 | DSL-301 |
| 32 | 1 17/64" | 10*15 | 7° | 2 | DSL-302 |
| 34 | 1 11/32" | 10*15 | 7° | 2 | DSL-303 |
| 36 | 1 27/64" | 10*15 | 7° | 2 | DSL-304 |
| 38 | 1 1/2" | 10*15 | 7° | 2 | DSL-305 |
| 40 | 1 37/64" | 10*15 | 7° | 2 | DSL-306 |
| 42 | 1 47/64" | 10*17 | 7° | 2 | DSL-307 |
cross bits technology parameter
| Bit Diameter | Buttons | Taper | Water Hole | Part No. | |
| mm | in | mm | |||
| 32 | 1 17/64" | 8*12 | 7° | 3 | DSL-328 |
| 34 | 1 11/32" | 8*12 | 7° | 3 | DSL-329 |
| 36 | 1 27/64" | 8*12 | 7° | 3 | DSL-330 |
| 38 | 1 1/2" | 8*12 | 7° | 3 | DSL-331 |
| 40 | 1 37/64" | 8*12 | 7° | 3 | DSL-332 |
| 42 | 1 47/64" | 8*12 | 7° | 3 | DSL-333 |

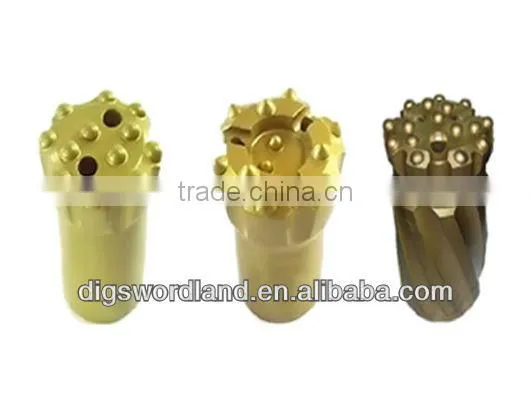

Thread bits technology parameter
| Flat Face and drop Centre and Retrac Button | ||||||||
| Bit Diameter:64mm,76mm,89mm,102mm(2 33/64",3",3 1/2",4") | ||||||||
| Thread: R32,R38,T38,T45,T51 |
drill rod chisel and cross type
taper rod technology parameter
Taper drill rod:
Shank size: H22*108mm, H25*108mm
Length:0.5-5m
Moil rod technology parameter
Length: 400mm,500mm,600mm
Shank size:32*152mm,32*160mm
Flat rod technology parameter
Length: 500mm
Shank size:32*152mm,32*160mm
Bit Diameter: 80mm
G10 G20 pneumatic rock drill rod
The length for G10 hammer :300mm,350mm,400mm,450mm,500mm,600mm,800mm,1000mm
Shank size:22mm
The length for G20 hammer :350mm,400mm,450mm,500mm,600mm
Shank size:30mm
Tca-7 drill rod
Asphalt Cutter is only used for the TCA-7 pick,along with the Front head spring together
Length: 450mm
Shank size:25mm
our company honors
