Concrete Mixer

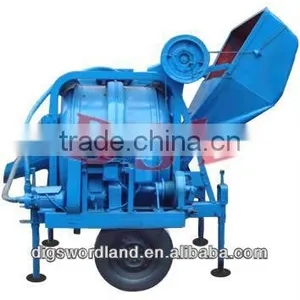

Concrete Mixer thumbnail-1
Concrete Mixer photo-1
US$ 1 - 1 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Fujian, China
Brand Name:
DSL
Contact Supplier Request Quote Chat Now
Fuzhou Dig Sword Land Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU OR OTHRS
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Fujian, China
Brand Name DSL
Model Number JZ150,JZ350,JZ500,JZ750
Motor Power >=4kw
Mixing Power others
Charging Capacity >=240L
Reclaiming capacity >=150L
Speed of Mixing Drum <=18r/min
Water Supply Mode others
Working Cycle Period others
Discharge Way others
Outline Dimension others

Specifications

high efficiency machine with small frame,high production,convenient operation and other features.It's work in the tunnel,road

       Construction and Mining Machine-Concrete mixer

Instruction

    My factory supply all kind of the Concrete mixer with electric or diesel engine.The Concrete mixer is a kind of high efficiency machine with small frame,high production,convenient operation and other features.It's work in the tunnel,road construction and some other projects .



Specification

Model JZ150 JZ200 JZ350 JZ500 JZ750
Leaves the material capacity: 150L 200L 350L 500L 750L
Input the material capacity 240L 320L 560L 800L 1200L
Stirs the tube rotation 18 r/min 17 r/min 15 r/min 12 r/min 12 r/min
Engine model Y112M-4 Y112M-4 Y132S-4 Y132S-4 Y132S-4
Engine rate 4kw 4kw 5.5kw 2*5.5kw 2*7.5kw
Engine rotary speed 1440 r/min 1440 r/min 1440 r/min 1440 r/min 1450 r/min
Aggregate maximum particle size 60mm 60mm 60mm 60-80mm 60-80mm
Outer Size 2280*2200*2400mm 2274*2200*2600mm 4700*2170*3076mm 2630*2200*2970mm 3000*2380*3000mm
Tows the speed 20km/h 20km/h 20km/h 20km/h 20km/h
Weight 1500kg 1400kg 2280kg 2800kg 3600kg

 Concrete mixerConcrete mixerConcrete mixerConcrete mixerConcrete mixer

It is our honor  to establish business relation wiht you
