Specifications
Solar system project :1.EN12975 solar keymark
2.Anti-freezen & pressurized
3.10 years warranty

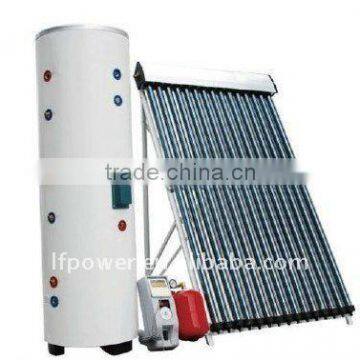

Solar system project
1) Reliable and efficient twin-glass solar tubes;
2) Copper heat pipes for rapid heat transfer;
3) Easy plug-in installation;
4) Free maintenance;
5) Suitable for mains pressure water (up to 1.0 bar);
6) Corrosion resistant silver brazed copper header;
7) Aluminum frame;
8) Powder coated (black, brown or silver) aluminum casing;
9) Stable solar conversion during the day;
10) The perfect solar collector for domestic solar water heater systems;
11) Ideal for commercial solar water heating applications.
Heat Pipe Solar CollectorWork Principle:
1) The operation of the solar collector is very simple.
2) Solar absorption: solar radiation is absorbed by the solar tubes and
converted into heat.
3) Solar heat transfer: heat pipes conduct the heat from within the solar tube
up to the header pipe
4) Solar energy storage: water is circulated through the header, via
intermittent pump cycling.Each time the water circulates through the header, the
temperatures is raised by 5-10C. Throughout the day, the water in the tank is
gradually heated.
Heat Pipe Solar CollectorTechnical Specification:
Manifold Casing Material: Aluminum
Frame Material: Aluminum
Header Pipe Material: Copper
Heat Pipe Material: Copper
Insulation: Rock Wool
Rubber Seals and Rings UV Stabilized High Temperature Silicon Rubber
Test Pressure: 10 bar
Collector Mounting Flat Roof/Inclined Roof
Mounting Angle: 15-50C
Inlet: 3/4''
OEM Service
| Solar collector(Heat pipe series)SC-H series | ||||||||||
| Model | SC-H-15-5818 | SC-H-18-5818 | SC-H-20-5818 | SC-H-24-5818 | SC-H-30-5818 | |||||
| Length of Tube | 1800mm | |||||||||
| Outer Diameter of Tube | φ58mm | |||||||||
| Tube Quantity | 15 | 18 | 20 | 24 | 30 | |||||
| Manifold | casing material,Aluminum Alloy,Thickness,1.8mm,Insulating layer,compressed rock wool | |||||||||
| Heat Pipe | pure red copper TU1+water,transfer power>=150W,Working pressure,4Mpa,welding pressure 4Mpa | |||||||||
| Dust Ring Gasket | Silicon Rubber | |||||||||
| Vacuum Tube | tri-element tube,High boron and silicon content 3.3,Structure,Gradual change SS-AL-Nx/Cu selective absorption coating,Vacuum Degree,P<=5*10-4,Service Life,10 years | |||||||||
| Mounting Frame | Aluminum Alloy,Thickness,1.8 mm, not have back-leg | |||||||||
| Rack Insert | ABS | |||||||||
| Dimension(CBM) | 0.24 | 0.32 | 0.33 | 0.39 | 0.5 | |||||
| Container Loading Quantity(set) | 20 | 102 | 78 | 77 | 63 | 57 | ||||
| 40 | 221 | 169 | 166 | 136 | 130 | |||||
| 40HQ | 278 | 213 | 209 | 172 | 171 | |||||
| Price(USD) | ||||||||||
